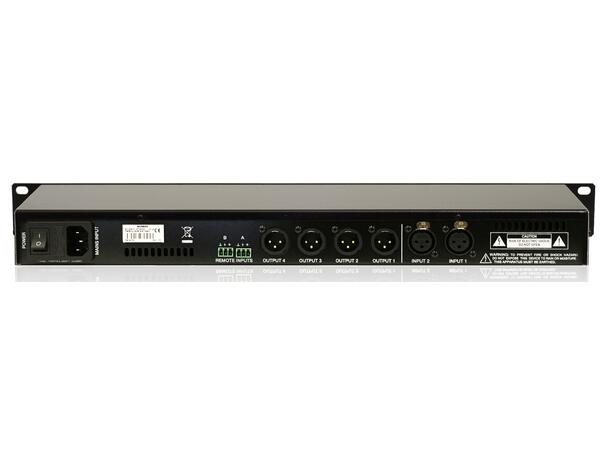

ALMA24
2x4 digital loudspeaker manager with USB interface and 2 volume remote control ports, 1RU stand-alone processor.
Main features
- 2 audio inputs x 4 audio outputs, all balanced
- 24bit/48kHz DSP
- USB interface, EclerCOMM Manager compatible
- DSP: GAIN/MUTE/POLARITY per I/O
- 8 parametric EQ filters per input/output
- Butterworth/Linkwitz-Riley/Bessel crossover filters (up to 48dB/oct)
- I/O delay
- Peak & RMS compressor/limiter with make-up gain
- 2 LINK groups
- System templates
- 20 user presets
- Password protection
Technical specifications
- Processor: 24bit/48kHz
- Sampling rate: 48kHz
- Resolution: 24bit
- Frequency response: <10Hz-20kHz
- Inputs: 2, XLR3 female balanced
- Input sensitivity: 0dBV
- Input impedance: >20k ohm
- CMRR: >55dB
- Outputs: 4, XLR3 male balanced
- Output impedance: 300 ohm
- Crosstalk: >95dB
- USB: 1 host + 1 device, type B
- Control: EclerCOMM Manager
- Digital remote: 2 Euroblock
- GPIs: 2, 0-10VDC volume control
- AC mains: 100-240V 47-63Hz
- Power consumption: 16VA
- Installation: 19" rack 1RU
- Dimensions: 482.6x44x120mm
- Weight: 1.75kg
