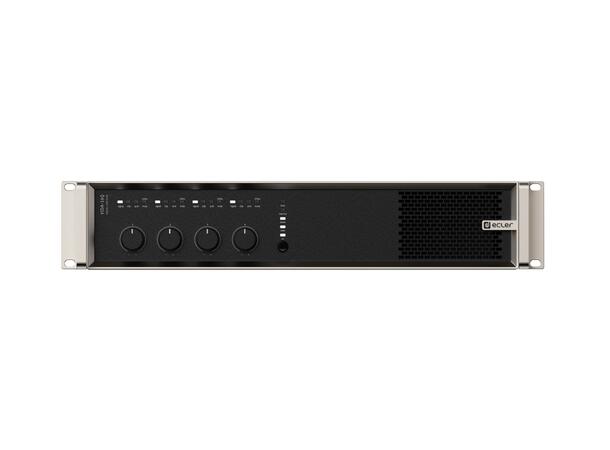

VIDA-16Q
1600W Dante/AES67 networkable digital amplifier with 4 VersaPower asymmetrical outputs, DSP, embedded player and web-app control.
Main features
- 4 amplified outputs, VersaPower asymmetrical 1600W management
- 4 Dante outputs + 4 Dante/AES67 inputs
- 2 auxiliary outputs
- 4 analogue inputs
- MicroSD/SDHC audio player
- Internal matrix and signal processing
- Web application configuration
- Smart power management VersaPower
- Scheduled events automation
- Customised User Panels

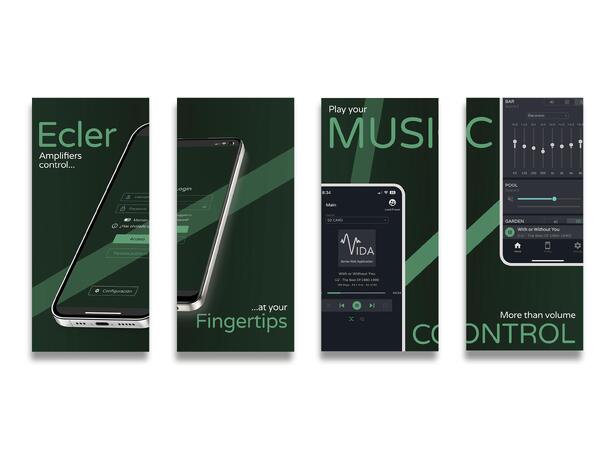

- iOS/Android/Web remote app
- Ultra-low power "Sleep Mode"

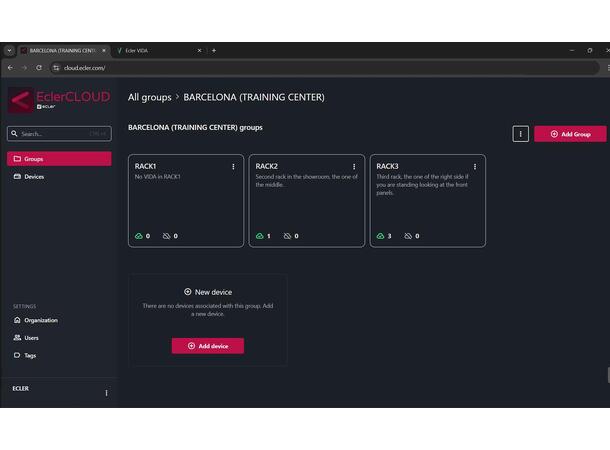

- EclerCLOUD compatible
Technical specifications
- Output channels: 4, Euroblock 2-pin
- Output configuration: Lo-Z/Hi-Z, 70V/100V, 4/8/2 ohm per channel
- Input channels: 4 analogue + 4 Dante/AES67 Rx + player + generator
- VersaPower symmetrical (all ch driven): 400W @8/4/2 ohm, 100V, 70V
- VersaPower asymmetrical (single ch): 1400W@8 ohm, 1600W@4 ohm/2 ohm/100V/70V
- Voltage gain: 28-40dBV
- Input sensitivity: -6 to +6dBV
- Frequency response: 15Hz-25kHz
- THD+Noise: <0.1%
- SNR: 95dBA
- Damping factor: >500
- Power supply: Universal SMPS with PFC
- AC mains: 100-240V 50-60Hz
- Amplification: Class D
- Efficiency: 68%
- DSP latency: 2.8ms
- Ethernet: 10/100/1000Mb
- Dante/AES67: 4Tx/4Rx (2/2 flows), primary+secondary
- Processor: Quad core 64bit 1.5GHz
- Sampling rate: 48kHz/24bit
- Micro SD: SDXC up to 2TB
- Installation: Rack 19" + desktop
- Dimensions: 482.6x88x410mm
- Weight: 9.3kg
