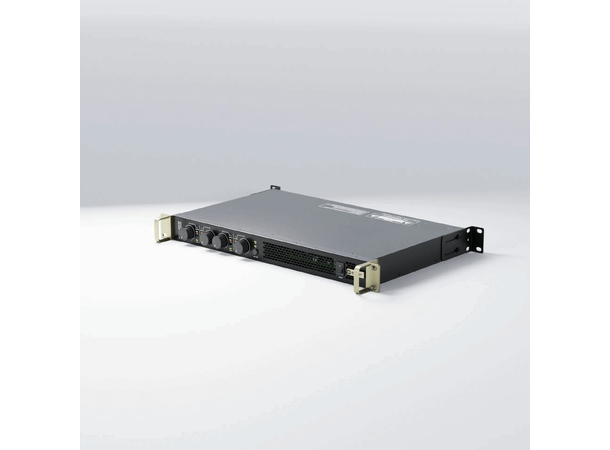

AURA-4B150 is a multichannel 4x150 W RMS @4O, high efficiency amplifier (class D). Compatibility with both Low and Hi impedance configurations and supporting dual or bridge mode (@4/8O). AURA Series are built with the highest robustness for long lasting performances with special power supply circuitry designed for optimized electrical consumption with fan cooling system. AURA Series also features the possibility of linking channels to the first input by selecting it on the rear panel, as well as auto stand-by, overload and thermal protection, PFC and anti-clipping system. The front panel volume knobs can be locked using rear panel switches for added security.
Main features
- 4 analogue audio inputs and 4x150 WRMS @4 ohm powered audio outputs
- Low (2,4,8 ohm) and high impedance (70/100V) compatibility
- Supports dual or bridge mode

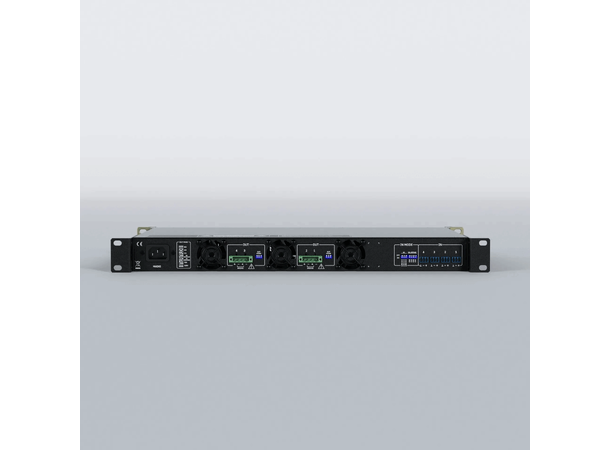

- Euroblock connectors with anti-pulling lock
- Link to input 1

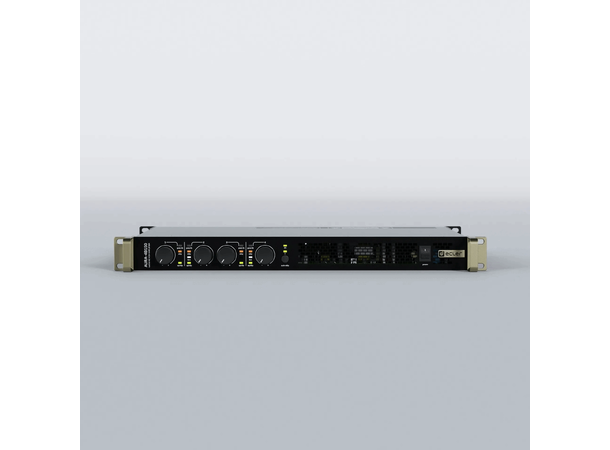

- Lockable volume knobs
- High efficiency Class D
- Auto Standby
- Fan cooling
- Thermal/Overload protection
- Anti-clip system
Technical specifications
- Output channels: 4
- Output connection: 4-pin Euroblock 5.08mm
- Output configuration: 2 ohm/4 ohm/8 ohm/100V/70V/Bridge
- Input channels: 4
- Max output @8 ohm: 150W
- @4 ohm: 150W
- @2 ohm: 150W
- @4 ohm bridge: 300W
- @8 ohm bridge: 300W
- @100V: 150W
- @70V: 150W
- Voltage gain: 34dB
- Frequency response: 15Hz-30kHz
- THD+Noise: <0.1%
- SNR: 90.6dBA
- Crosstalk: >70dB
- CMRR: >55 Typ
- PFC: >0.77
- Power 1/4 @230VAC: 799.2W/859VA
- Idle: 60W/164.4VA
- Standby: 2.3W/81.4VA
- Amplification: Class D
- Efficiency: 50%
- Cooling: 2 fans
- Max fan noise: 57dBA
- Dimensions: 484x44x296.6mm
- Weight: 5kg
- Shipping weight: 7.6kg
