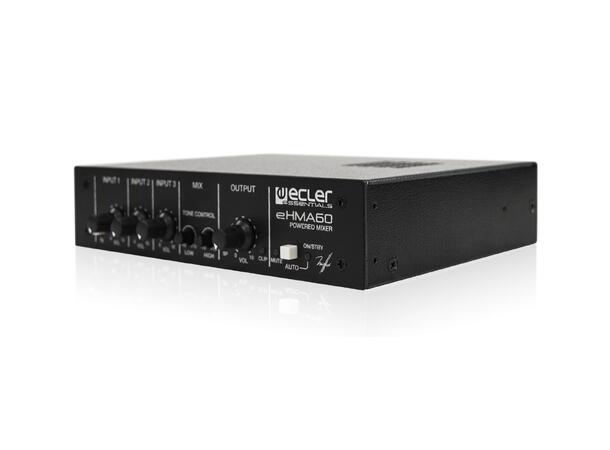

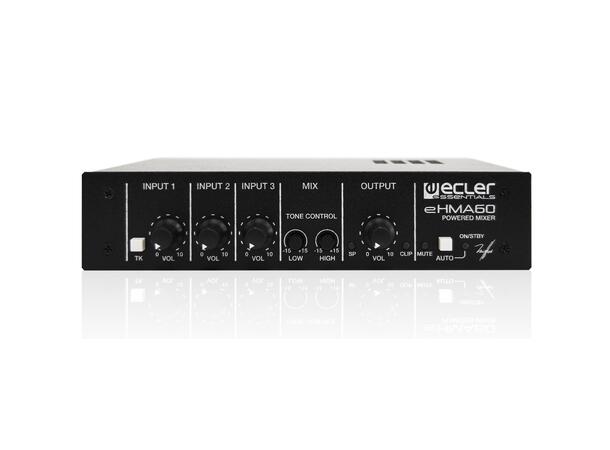

eHMA60
Self-powered audio mixer with 1 MIC input and 2 MIC/LINE ST inputs, 60W powered mono output supporting Lo-Z (4 ohm) and Hi-Z (70/100V) loudspeaker lines.
Main features
- 1x60W @ 4ohm/70V/100V
- 1 MIC input
- 2 MIC/LINE inputs (Input 1 Talkover)
- 2-band EQ (BASS/TREBLE) for Mix Output
- 24VDC power supply included
- 24VDC Phantom Power (external switch)
- MUTE port for external muting
- Auto Stand-by function

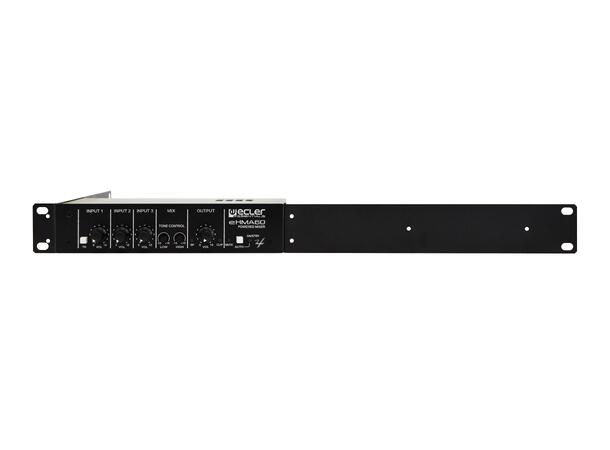

- Rack mount kit included
Technical specifications
- Output channels: 2
- Output connection: Euroblock
- Output configuration: 1x60W @4 ohm or 70V/100V
- Input channels: 3
- Input connection: MIC balanced Euroblock, LINE unbalanced double RCA
- Max output @4 ohm: 66W
- @100V: 60W @166 ohm
- Input sensitivity LINE1-2: -15 to +15dBV
- MIC1-3: -20 to -50dBV
- Input impedance LINE: >10k ohm
- MIC: >1k ohm
- CMRR MIC: >65dB @1kHz
- Phantom power: 24VDC external switch
- Tone control: 2-band (BASS 100Hz±15dB, TREBLE 10kHz±15dB)
- Talkover: Yes
- AC mains: 100-240VAC + external PSU 24VDC
- Power 1/3 @4 ohm: 36W/62VA
- Power 1/8: 17W/33VA
- Standby: <4W
- Filters: 70Hz High Pass
- Output settings: Lo-Z/70V/100V
- Installation: 19" rack (1 or 2RU)
- Dimensions: 200x44x150mm
- Weight: 1.9kg
- Shipping weight: 2.8kg
