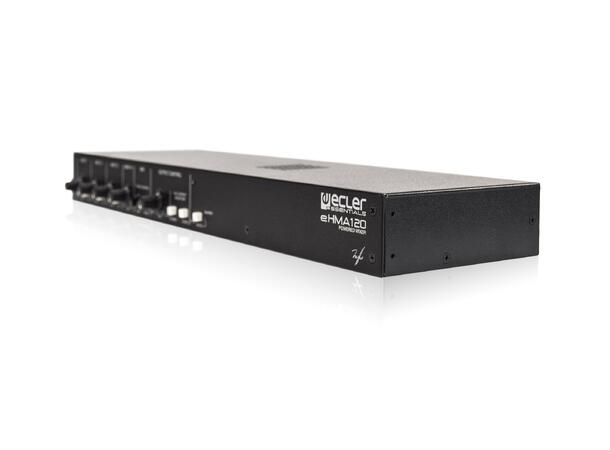

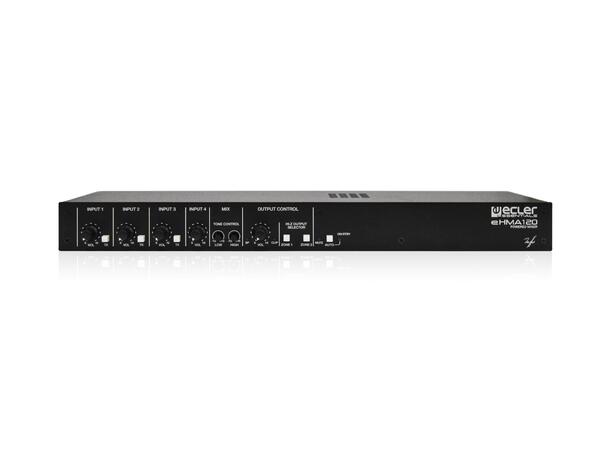

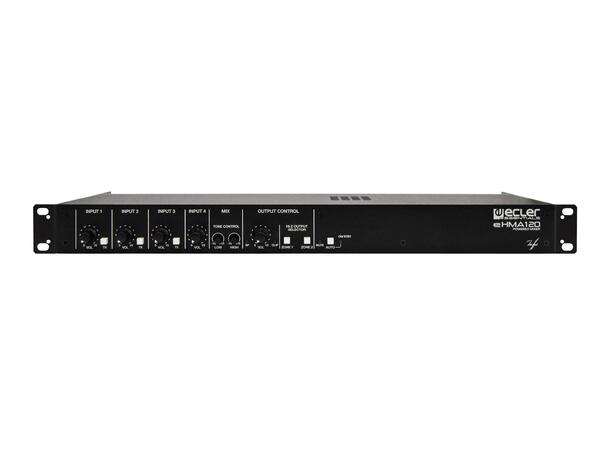

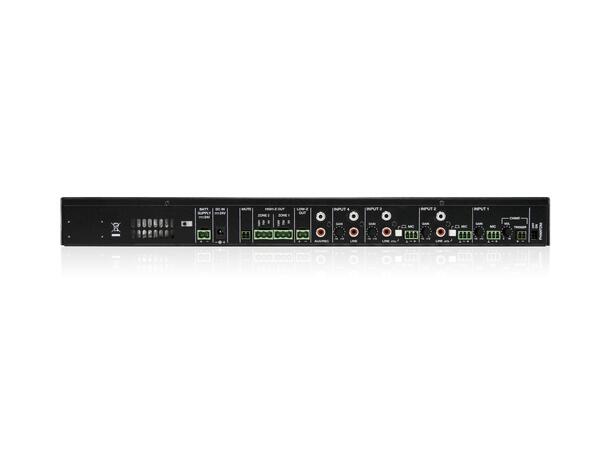

eHMA120
Self-powered audio mixer with three MIC/LINE ST inputs and one LINE ST input, 95W powered mono output (Lo-Z 4 ohm and Hi-Z 70/100V), independent 2-ZONE ON/OFF switches.
Main features
- 1x95W @4ohm
- 1x95W @70V/100V
- 2x ZONE ON/OFF selection switches
- 1 ST LINE input
- 3 MIC/LINE inputs with Talkover function
- 1 Pager port with embedded Chime tone
- 2-band EQ (BASS/TREBLE) for Mix Output
- 24VDC external power supply with battery backup connector
- Auto Stand-by function
- 24VDC Phantom Power
- MUTE port
- Rack mount kit included
Technical specifications
- Output channels: 3 + 1 AUX/REC
- Output connection: Euroblock
- Output configuration: 95W 2 Hi-Z + 1 Lo-Z
- Input channels: 4
- Input connection: MIC balanced Euroblock, LINE unbalanced double RCA
- Max output @4 ohm: 95W
- @100V: 95W @100 ohm
- Input sensitivity LINE2-4: -15 to +15dBV
- MIC1-3: -20 to -50dBV
- Input impedance LINE2-4: >10k ohm
- MIC1-3: >1k ohm
- CMRR MIC: >65dB
- Phantom power: +24VDC/10mA max
- Tone control: 2-band EQ
- Talkover: Yes
- AC mains: 100-240VAC + external PSU 24VDC
- Power 1/3 @4 ohm: 58W/64VA
- Power 1/8: 26W/47VA
- Standby: <5W
- Filters: 70Hz High Pass
- Output settings: Lo-Z/70V/100V
- Installation: 19" rack (1 or 2RU)
- Dimensions: 435x44x120mm
- Weight: 2.9kg
- Shipping weight: 4.2kg
