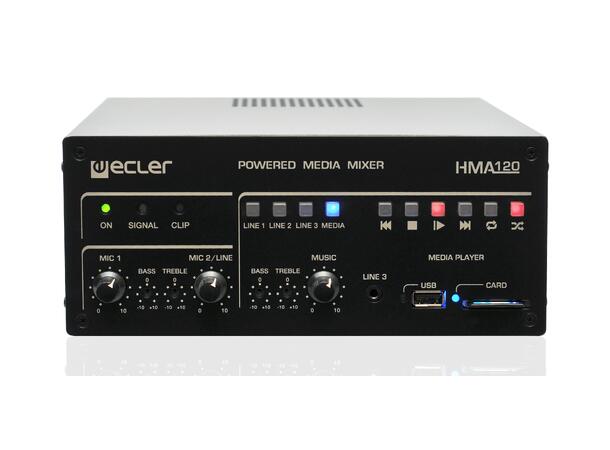

HMA120
Self-powered mixer with integrated media player and 5 external audio inputs (3xLINE ST, 1 MIC/LINE, 1 MIC), 120W powered output supporting Lo-Z (4 ohm) and Hi-Z (70V/100V) lines.
Main features
- 2 balanced microphone inputs mixable with selected music program
- 3 line inputs for music sources
- Integrated audio player (mp3) with USB and SD card slots
- Music program selector: LINE1/LINE2/LINE3/MEDIA
- Noise gate and two-level priority system (Talkover 1 & 2)
- Independent level controls for MIC1/MIC2-LINE/MUSIC
- 2-band EQ (BASS/TREBLE) for MIC1 and MIC2/LINE, and 2-band EQ for MUSIC

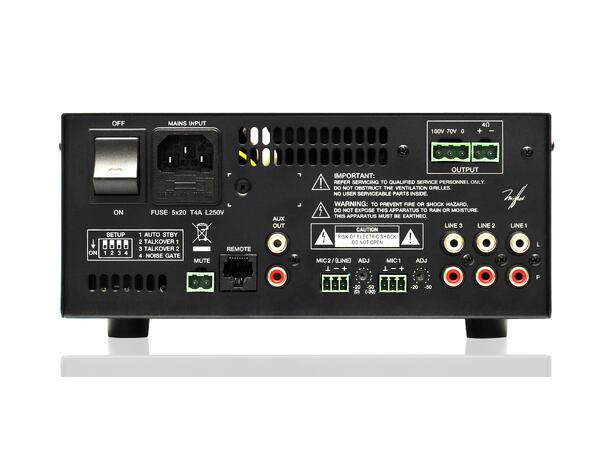

- REMOTE port for WPa series wall panels (0-10VDC)
- MUTE port
- Auxiliary Output
- Auto Stand-by function
Technical specifications
- Output channels: 1 + 1 AUX
- Output connection: Euroblock
- Output configuration: 1x120W @4 ohm or 70V/100V
- Input channels: 5
- Input connection: MIC balanced Euroblock, LINE unbalanced double RCA (minijack on LINE3)
- Max output @8 ohm: 105W RMS
- @4 ohm: 140W RMS
- @100V: 140WRMS @85 ohm
- @70V: 140WRMS @41 ohm
- Input sensitivity LINE1-2: 0dBV
- LINE3: -6dBV
- MIC1-2 BAL: -20 to -50dBV
- Input impedance LINE1-3: >70k ohm
- MIC1-2: >4.5k ohm
- CMRR MIC1-2: >70dB
- Phantom power: +15VDC/8mA max internally selectable
- Talkover: Yes
- AC mains: 115V/230V internally changed
- Power 1/3 @4 ohm: 65W/90VA
- Power 1/8: 29W/43VA
- Standby: 5W
- Filters: 70Hz HP 3rd order Butterworth
- Output settings: Lo-Z/70V/100V
- Installation: Tabletop, 19" or 9.5" rack
- Dimensions: 210x88x230mm
- Weight: 5.95kg
- Shipping weight: 7.16kg
