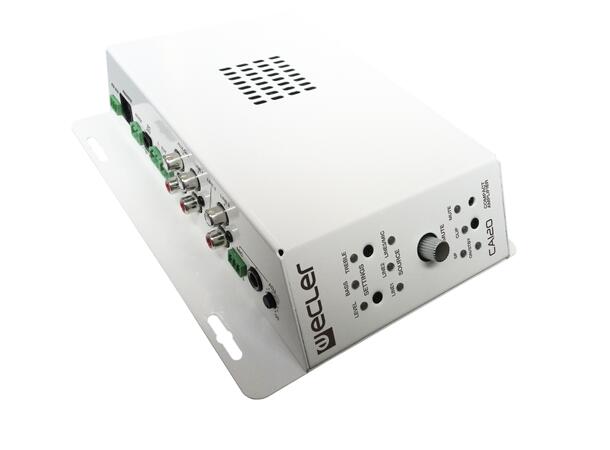

CA120
Compact 2 x 60 WRMS @4 ohm stereo amplifier with versatile remote control options (RS-232, IR receiver, 0-10VDC), ideal for classrooms, meeting rooms, presentations, retail.
Main features
- 2x60 WRMS @4 ohm amplifier
- Universal external power supply
- AUTO STANDBY function
- Lightweight, silent, fan-free convection cooling
- Suitable for stereo and parallel (mono)
- 1 switchable balanced mic/unbalanced line input with mic preamp, phantom power, noise gate and talkover
- 3 stereo lines (unbalanced)
- 2-band independent tone control for mic/line3 and line1&2
- Auxiliary output

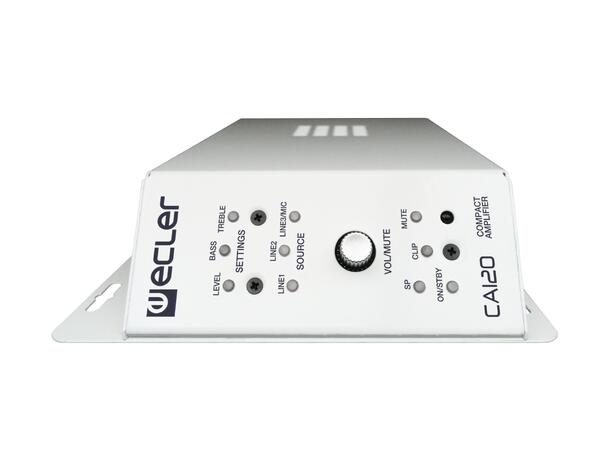

- Local control by digital rotary encoder
- IR remote control
- Remote control via WPmVOL/WPmVOL-SR (0-10VDC)
- RS-232 control port (EclerCOMM/CA-NET)
- MUTE port
Technical specifications

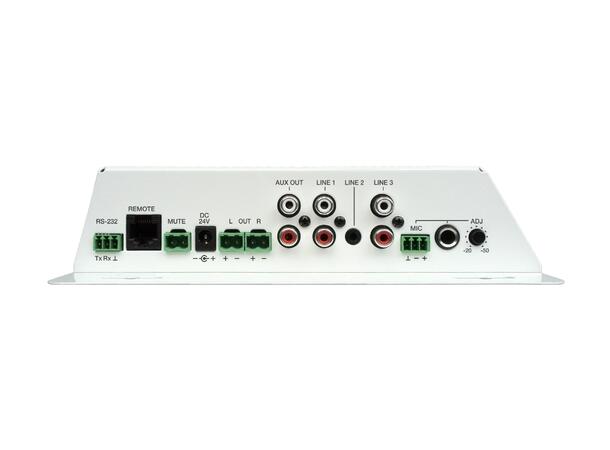

- Output channels: 2 + 1 AUX
- Output connection: Euroblock
- Output configuration: 2x60 WRMS @4 ohm
- Input channels: 3
- Input connection: MIC balanced Euroblock/jack, LINE unbalanced minijack/double RCA
- Max output @8 ohm: STEREO 2x34W
- @4 ohm: STEREO 2x56W
- Input sensitivity LINE: -6dBV (0dBV selectable)
- MIC BAL: -20 to -50dBV
- Input impedance LINE: >8k ohm
- MIC: >1k ohm
- Frequency response: 15Hz-30kHz
- THD+Noise SPKR OUT: <0.15%
- AUX OUT: <0.02%
- SNR LINE: >85dB
- MIC: >65dB
- Crosstalk: >65dB
- CMRR MIC BAL: >65dB

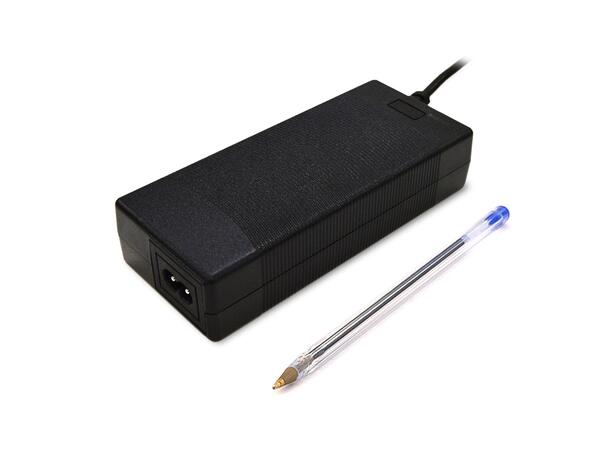

- Power supply: Universal external 24VDC
- Power 1/3 @4 ohm: 58VA/52W
- Power 1/8: 33VA/24W
- Standby: <2.5W
- Cooling: Convection (fanless)
- Serial port: RS-232
- Installation: Wall or under surface
- Dimensions: 160x48x210mm
- Weight: 0.95kg
- Shipping weight: 1.7kg
