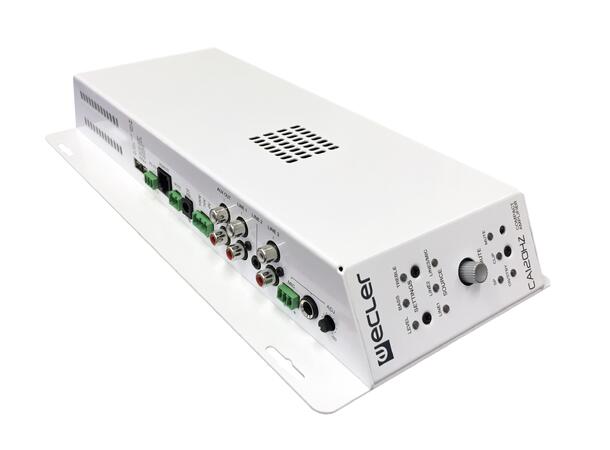

CA120HZ
CA120HZ is the high-impedance version of the CA120, delivering 96W @ 70/100V line level, ideal for long loudspeaker wire runs and multiple loudspeaker units. Compact micro-amplifier with RS-232, IR and 0-10VDC remote control.
Main features
- 1 x 96W RMS @ 70/100V amplifier
- Universal external power supply
- AUTO STANDBY function
- Lightweight, silent, fan-free convection cooling
- 1 switchable balanced mic/unbalanced line input with mic preamp, phantom power, noise gate and talkover
- 2 stereo lines (unbalanced)
- 2-band independent tone control (Bass, Treble)
- Auxiliary output for liaison with other amplifiers

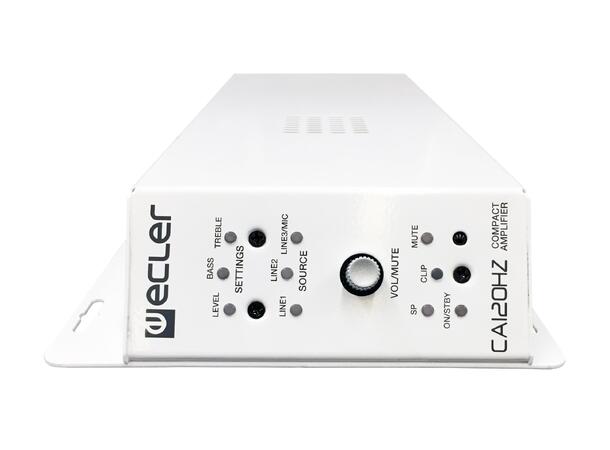

- Local control by digital rotary knob (encoder)
- Remote control by infrared remote
- Remote control by WPaVOL or WPaVOL-SR (0-10VDC) wall panel
- RS-232 control port compatible with EclerCOMM software and CA-NET protocol
- MUTE port to silence entire unit
Technical specifications
- Number of output channels: 1 + 1 AUX
- Output connection type: Euroblock
- Output configuration: 1 x 96W RMS @ 70/100V
- Number of input channels: 3
- Input connection type: MIC balanced Euroblock or jack, LINE unbalanced minijack or double RCA
- Input configuration: 1 MIC/LINE input, 2 LINE inputs
- Max output power @ 100V: 96W @ 100 ohm
- Input sensitivity: LINE 0dBV (-6dBV internally selectable), MIC -20 to -50dBV
- Input impedance: LINE >8k ohm, MIC >1k ohm
- Frequency response: 50Hz-30kHz (-3dB)
- THD+Noise: SPKR OUT <0.09%, AUX OUT <0.02%
- SNR: LINE >70dB, MIC(BAL) >50dB
- Crosstalk: >65dB @ 1kHz
- CMRR: MIC(BAL) >65dB @ 1kHz
- Power supply: Universal

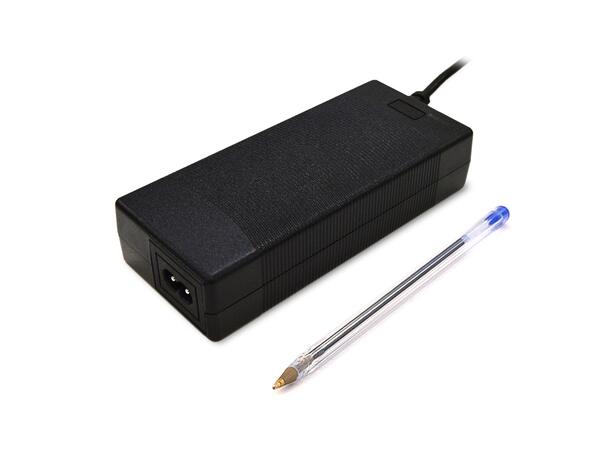

- AC mains requirement: 100-240V @ 50-60Hz + External PSU 24VDC (Meanwell GS60A24-P1J)
- AC mains connector: DC24V power connector
- Power Consumption (1/3 POWER): 58VA/52W
- Power Consumption (1/8 POWER): 33VA/24W
- Power Consumption (STBY/SLEEP): <2.5W
- Energy saving: Auto standby function
- Cooling: Convection (fanless)
- Protections (AC/DC/VHF/Short-circuit/Clip limiter/Long term/Thermal): No
- GPIs: Volume & Input/preset selection (0-10V based)
- External MUTE: Power free contact (infrared remote)
- Attenuators: Front panel knob
- Tone control: 2-band independent (Bass, Treble)
- Filters: 50Hz-70Hz High Pass Filter
- Output settings: Mono only outputs (L+R summed for stereo input)
- Auto standby function: Rear panel micro switch
- Auto standby time: 120 seconds
- Serial port: RS-232
- Programing and control: EclerCOMM software or CA-NET protocol
- Signal Present: SP LED (Green)
- Clipping: CLIP LED (Red)
- Standby: STBY LED (Orange)
- Operating temperature: Min -10°C/14°F, Max 40°C/104°F
- Operating humidity: <85% HR
- Storage temperature: Min -10°C/14°F, Max 40°C/104°F
- Storage humidity: <90% HR
- Installation options: Wall or under a surface
- Included accessories: REVO-IR remote control
- Optional accessories: WPaVOL or WPaVOL-SR
- Dimensions: 160x48x325mm/6.3x1.89x12.8in (WxHxD)
- Weight: 2.92kg/6.44lb
- Shipping dimensions: 450x60x220mm/17.72x2.36x8.66in
- Shipping weight: 3.8kg/8.38lb
