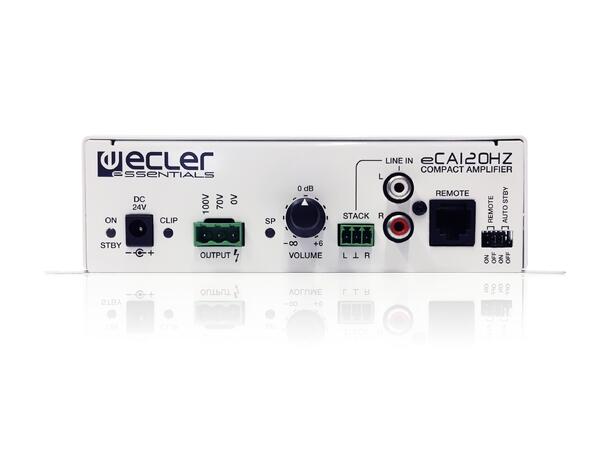

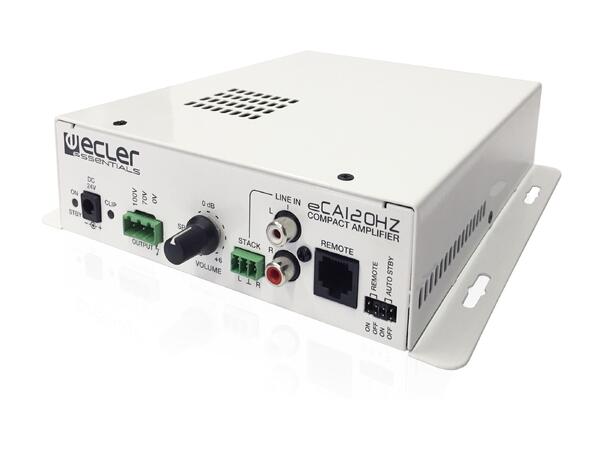

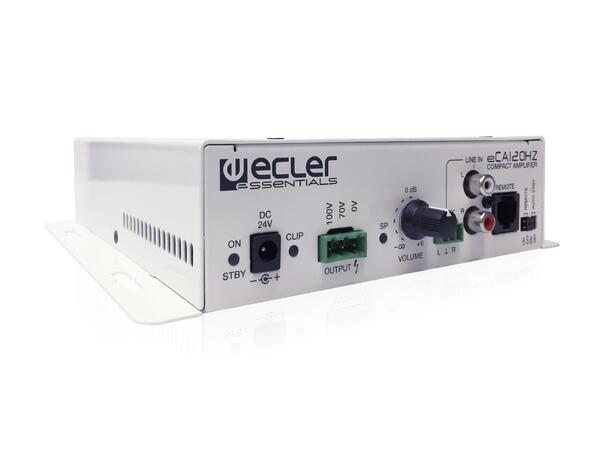

eCA120HZ
eCA120HZ is a mono micro-amplifier delivering 1 x 106W RMS @ 70V/100V line level (high impedance), compact and fanless, with 1 LINE stereo input, AUTO STANDBY and volume remote control.
Main features
- 1 x 106W RMS @ 70V/100V line level (high impedance) amplifier

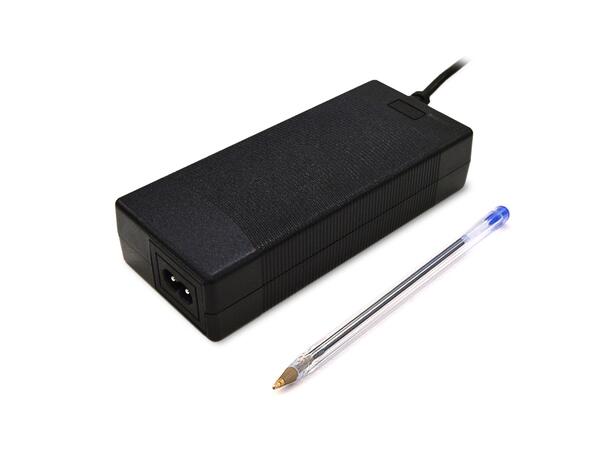

- External, universal power supply
- AUTO STANDBY function
- Light and silent (fanless) design
- 1 unbalanced stereo line input (LINE IN/STACK) with dual RCA and 3-pin Euroblock connector
- Local volume control by knob
- Remote volume control by WPa series wall panel (0-10VDC)
Technical specifications
- Number of output channels: 1
- Output connection type: Euroblock
- Output configuration: 1 x 106W RMS @ 70V/100V line level (high impedance)
- Number of input channels: 1
- Input connection type: Dual RCA and 3-pin Euroblock
- Input configuration: LINE/STACK input
- Max output power @ 100V: 106W @ 100 ohm
- Input sensitivity: 0dBV
- Input impedance: >20k ohm
- Frequency response: 70Hz-30kHz (-3dB)
- THD+Noise: SPKR OUT <0.07% @ 1kHz
- SNR: >85dB (VOLUME at 0dB)
- Crosstalk: >65dB @ 1kHz
- Power supply: External, universal power supply
- AC mains requirement: 100-240V @ 50-60Hz + External PSU 24VDC
- AC mains connector: DC24V power connector
- Power Consumption (1/3 POWER): 51W/61VA
- Power Consumption (1/8 POWER): 26W/38VA
- Power Consumption (STBY/SLEEP): <2.5W
- Energy saving: Auto standby function
- Cooling: Convection (fanless)
- Protections (AC/DC/VHF/Short-circuit/Clip limiter/Long term/Thermal): No
- GPIs: x1 GPI (0-10VDC) for volume control
- Attenuators: Front panel knob
- Filters: 70Hz High Pass Filter (internal, not removable)
- Output settings: 70V/100V outputs
- Auto standby function: Front panel jumper
- Auto standby threshold: -40dBV (L&R)
- Auto standby time: 120 seconds
- Signal Present: SP LED (Green)
- Clipping: CLIP LED (Red)
- Standby: STBY LED (Orange)
- Operating temperature: Min -10°C/14°F, Max 40°C/104°F
- Operating humidity: <85% HR
- Storage temperature: Min -10°C/14°F, Max 40°C/104°F
- Storage humidity: <90% HR
- Installation options: Wall or under a surface
- Optional accessories: WPaVOL series
- Dimensions: 190x48x190mm/7.48x1.89x7.48in (WxHxD, knobs/connectors excluded)
- Weight: 2.3kg/5.07lb
- Shipping dimensions: 340x60x220mm/13.39x2.36x8.66in
- Shipping weight: 3.1kg/6.83lb
