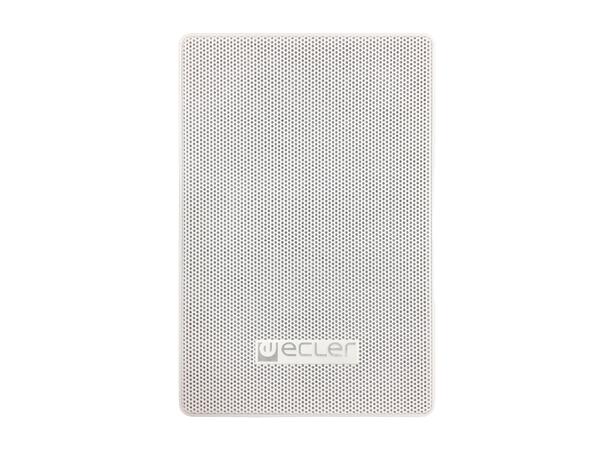

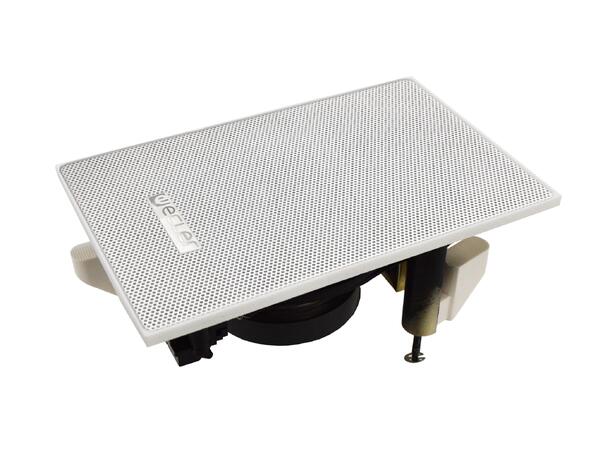

IW103
ECLER IW103 is a 3" in-ceiling/in-wall installation loudspeaker with a rectangular, discreet design and a high impedance transformer with 15/30W power selections @ 100V line level.
Main features
- Rectangular shaped loudspeaker for in-ceiling/in-wall installation

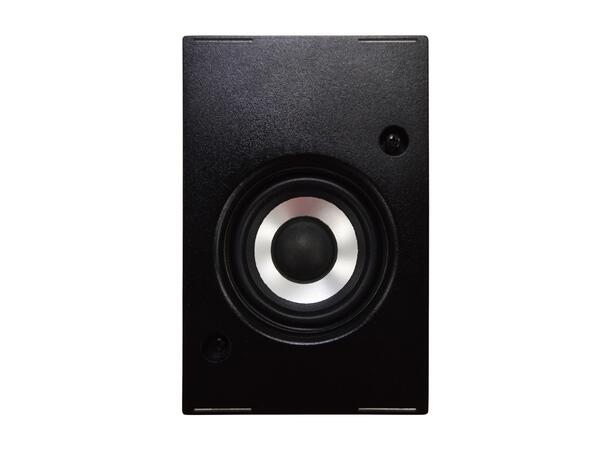

- 3" woofer
- 15W/30W @ 100V selector
- Spring loaded input terminals
- White finish
- EASE files available
Technical specifications
- Effective Freq. Range: 83Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 158°x158° (HxV)
- Power handling: 30W RMS/120W Peak
- Sensitivity: 84dB (1W/1m)
- Maximum SPL: 99dB continuous/105dB peak
- Power options (Hi Z Multi-tap): 100V: 30W/15W
- Recommended amplifier power: 60W RMS
- Ways: 1-way
- Driver: 3" woofer
- Nominal impedance: 667 ohm/333 ohm
- Connection type: Spring terminals
- Power type selector: Changing position of terminals

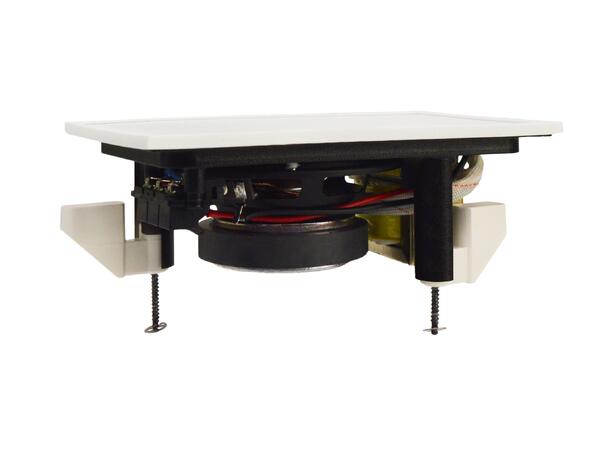

- Installation options: Wall or false ceiling
- Enclosure material: ABS
- Grille material: Aluminium, paintable
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- Recommended cut out diameter: 147x95mm/5.79x3.74in
- Required depth: 80mm/3.14in
- Ceiling thickness: 2mm/0.078in min, 40mm/1.57in max
- Finished colour: White (RAL9003)
- Dimensions: 110x165x80mm/4.33x6.5x3.15in (WxHxD)
- Weight: 0.9kg/1.98lb
- Pieces per box: 8 units
- Shipping dimensions: 120x100x180mm/4.72x3.94x7.07in
- Shipping weight: 1.0kg/2.2lb
