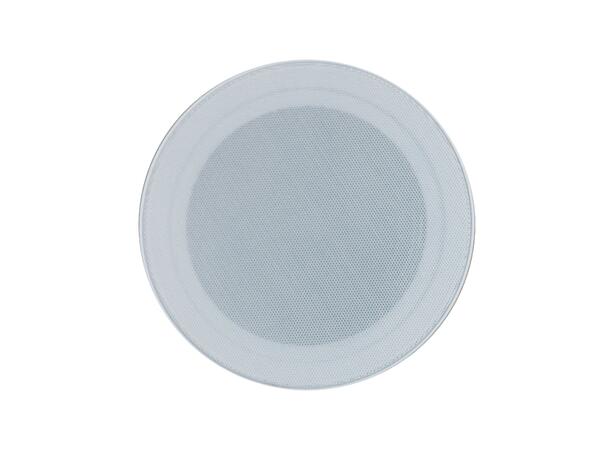

eIC51FM
eIC51FM is a cost-effective in-ceiling installation loudspeaker with a fast-mounting system, a 4.5" woofer and a 70/100V line transformer with 3/6W power options.
Main features
- Easy and fast mounting
- One-way, full range
- 4.5" woofer
- 6WRMS
- Power options 100V: 3/6W
- Power options 70V: 1.5/3W

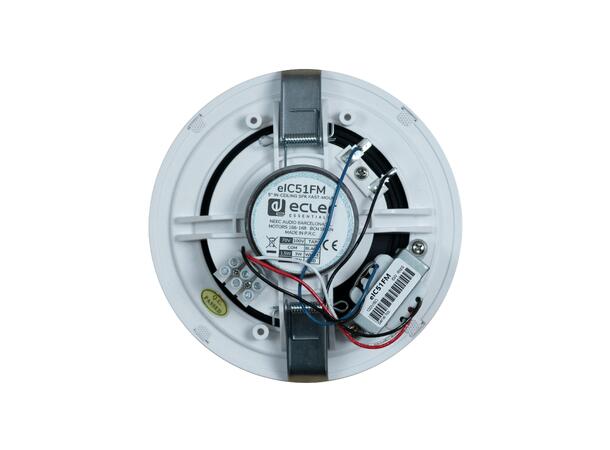

- Screw terminals
- ABS plastic basket, powder coated iron grille
- Available in white colour (RAL9016)
- EASE Address file available
Technical specifications
- Effective Freq. Range: 115Hz-17kHz (-10dB)
- Coverage angle/Dispersion: 157°x157° (HxV)
- Power handling: 6W RMS/24W Peak
- Sensitivity: 91dB (1W/1m)
- Maximum SPL: 99dB continuous/105dB peak
- Power options (Hi Z Multi-tap): 100V: 6W/3W, 70V: 3W/1.5W
- Recommended amplifier power: 12W RMS
- Ways: 1-way full range
- Driver: 4.5" woofer, ferrite magnet, paper cone
- Nominal impedance: 8 ohm
- Connection type: Screw terminals
- Power type selector: Color code connection (rear panel)
- Installation options: In-ceiling, in-wall
- Environmental: IP50 rated
- Enclosure material: ABS plastic
- Grille material: Powder coated iron

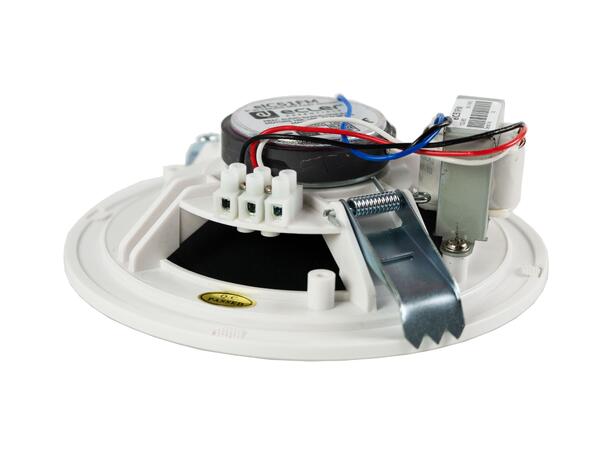

- Mounting system: Spring clamps
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 160mm/6.3in
- Recommended cut out diameter: 145mm/5.7in
- Required depth: >54mm/2.1in
- Ceiling thickness: No limit min, 55mm/2.17in max
- Finished colour: White (RAL9016)
- Weight: 0.5kg/1.1lb
- Pieces per box: 1 unit
- Shipping dimensions: 178x178x63mm/7.0x7.0x2.5in
- Shipping weight: 0.75kg/1.7lb
