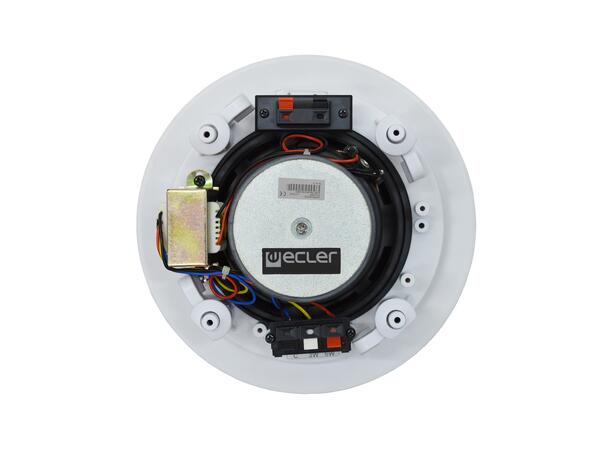

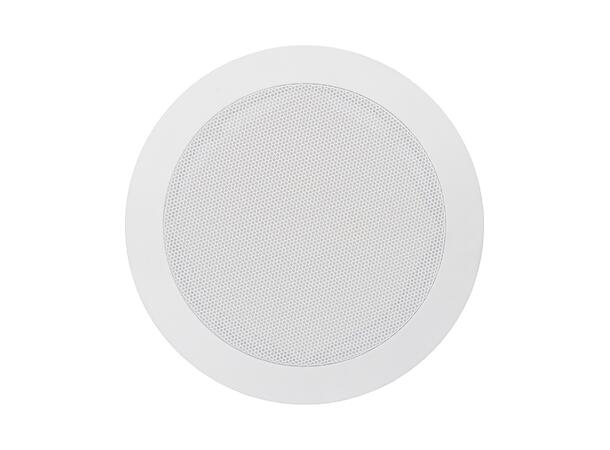

eIC52
eIC52 is an affordable, high-quality 2-way in-ceiling speaker with a 5.25" LF driver, a 0.75" HF driver, 20WRMS@8 ohm, and a 100V line transformer with 3/6W power options.
Main features
- Two-way ABS speaker, 20WRMS
- 5.25" woofer + 0.75" tweeter
- Built-in audio transformer for 70/100V use
- Clip-type input terminals and low/high impedance power tap selector
- EASE files available
Technical specifications
- Effective Freq. Range: 65Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 151°x151° (HxV)
- Power handling: 20W RMS/80W Peak
- Sensitivity: 89dB (1W/1m)
- Maximum SPL: 102dB continuous/108dB peak
- Power options (Hi Z Multi-tap): 100V: 6W/3W/8 ohm, 70V: 6W/3W/8 ohm
- Recommended amplifier power: 40W RMS
- Ways: 2-ways
- Low frequency driver: 5.25" woofer
- High frequency driver: 0.75" tweeter
- Nominal impedance: 8 ohm
- Connection type: Clip-type input terminals
- Power type selector: Power tap selector
- Installation options: In-ceiling, in-wall
- Enclosure material: ABS
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 202mm/7.95in
- Internal diameter: 164mm/6.46in
- Recommended cut out diameter: 165mm/6.50in
- Required depth: 65mm/2.56in
- Ceiling thickness: 5mm/0.19in min, 30mm/1.18in max
- Finished colour: White (RAL9003)
- Weight: 1.0kg/2.2lb
- Pieces per box: 1 unit
- Shipping dimensions: 210x210x80mm/8.27x8.27x3.15in
- Shipping weight: 1.2kg/2.65lb
