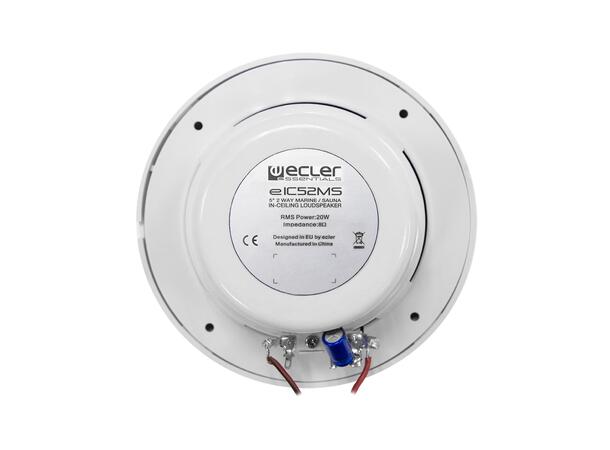

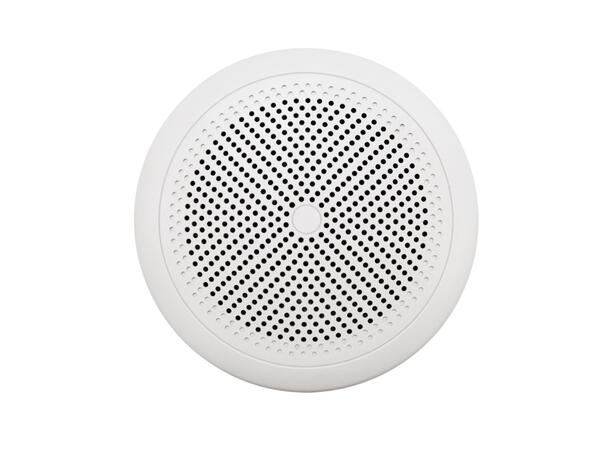

eIC52MS
eIC52MS is a 2-way in-ceiling loudspeaker suitable for installations exposed to extreme humidity and/or temperature, with 1x5" woofer and 1x1" tweeter, 20WRMS@8 ohm.
Main features
- Two-way speaker, 5in woofer/1in tweeter
- 20WRMS
- Faston male input terminals: 4.8mm(+) and 2.8mm(-)
- Suitable for installations exposed to extreme humidity and/or temperature
- EASE files available
Technical specifications
- Effective Freq. Range: 83Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 155°x155° (HxV)
- Power handling: 20W RMS/80W Peak
- Sensitivity: 91dB (1W/1m)
- Maximum SPL: 104dB continuous/110dB peak
- Ways: 2 ways
- Low frequency driver: 5" woofer
- High frequency driver: 1" tweeter
- Nominal impedance: 8 ohm
- Recommended amplifier power: 40W RMS
- Connection type: Faston male terminals 4.8mm(+)/2.8mm(-)
- Installation options: In-ceiling, in-wall
- Environmental: IP54 rated
- Grille fixing system: 4x Screw fixing system
- Operating temperature: Min -25°C/-13°F, Max 70°C/158°F
- Operating humidity: <90-95% HR
- Storage temperature: Min -25°C/-13°F, Max 70°C/158°F
- Storage humidity: <90-95% HR
- External diameter: 165mm/6.5in
- Internal diameter: 120mm/4.72in
- Recommended cut out diameter: 125mm/4.92in
- Required depth: 79mm/3.11in
- Finished colour: White (RAL9016)
- Weight: 0.70kg/1.54lb
- Pieces per box: Unit
- Shipping dimensions: 210x80x210mm/8.27x3.15x8.27in
- Shipping weight: 1.2kg/2.65lb
