IC8

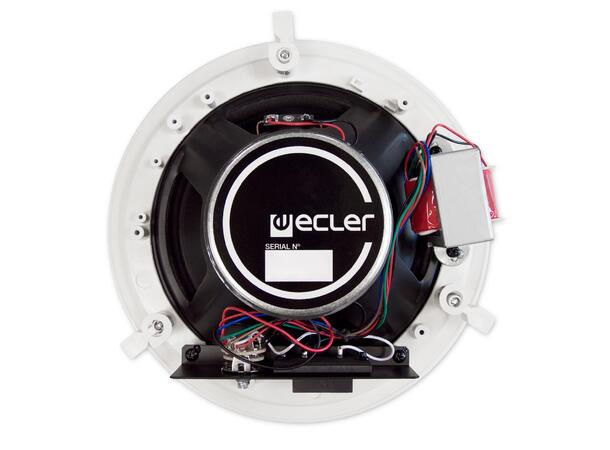

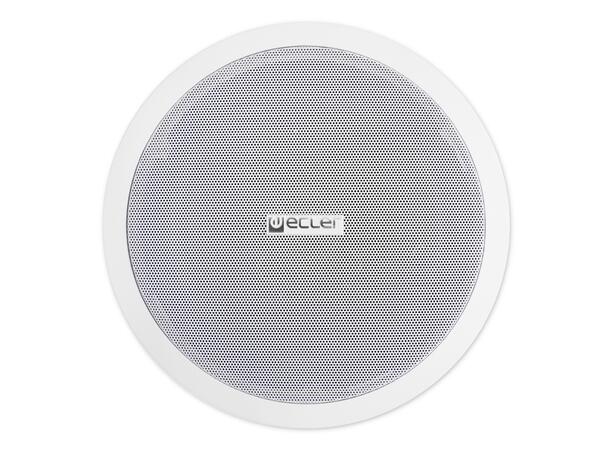

IC8 is a 2-way loudspeaker for 70/100V and low impedance sound solutions, with an 8" woofer and a 1" tweeter in a discreet design.
Main features
- 2-way speaker for false ceilings
- 8" polypropylene woofer
- 25mm tweeter
- Power 60W RMS@8 ohm
- Sensitivity (1W/1m) 94dB SPL

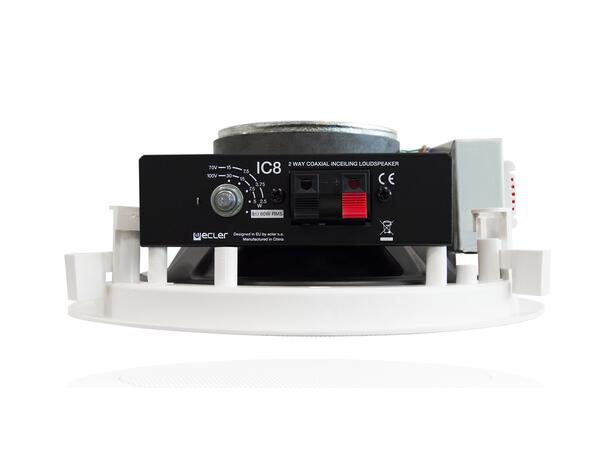

- Built-in transformer
- External diameter 245mm
- Cut out diameter 222mm
- Available in white (RAL9010) finish
- Installation system: three revolving fasteners
Technical specifications
- Effective Freq. Range: 65Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 135°
- Power handling: 60W RMS/240W Peak
- Sensitivity: 94dB (1W/1m)
- Maximum SPL: 112dB continuous/118dB peak
- Power options (Hi Z Multi-tap): 100V: 30/15/7.5/5W/8 ohm, 70V: 15/7.5/3.75/2.5W/8 ohm
- Recommended amplifier power: 120W RMS
- Ways: 2-ways full range
- Low frequency driver: 8" woofer
- High frequency driver: 1" tweeter
- Nominal impedance: 8 ohm
- Connection type: Clip-type input terminals
- Installation options: In-ceiling, in-wall
- Enclosure material: ABS
- Grille material: Aluminium rust proof
- Mounting system: 3 rotating tabs
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 245mm/9.64in
- Internal diameter: 219mm/8.62in
- Recommended cut out diameter: 222mm/8.74in
- Required depth: 91mm/3.58in
- Ceiling thickness: 5mm/0.19in min, 20mm/0.78in max
- Included accessories: Cutting and painting templates included
- Finished colour: White (RAL9010)
- Weight: 2.3kg/5.07lb
- Pieces per box: 2 units
- Shipping dimensions: 290x290x260mm/11.41x11.41x10.23in
- Shipping weight: 2.60kg/5.73lb
