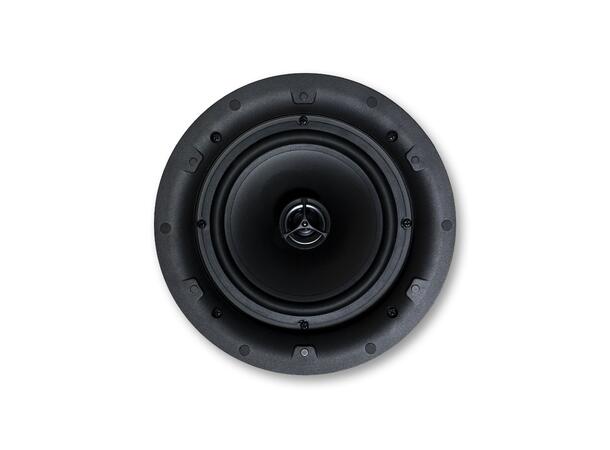

VIC6
VIC6 is an in-ceiling loudspeaker with a 6.5" woofer + 0.5" steerable tweeter, 40WRMS@8ohm, and a 70/100V line transformer with 40/20/10/5/2.5W power connections.
Main features
- 2-way false ceiling loudspeaker
- 6.5" polypropylene woofer
- 0.5" steerable tweeter
- 40WRMS@8 ohm

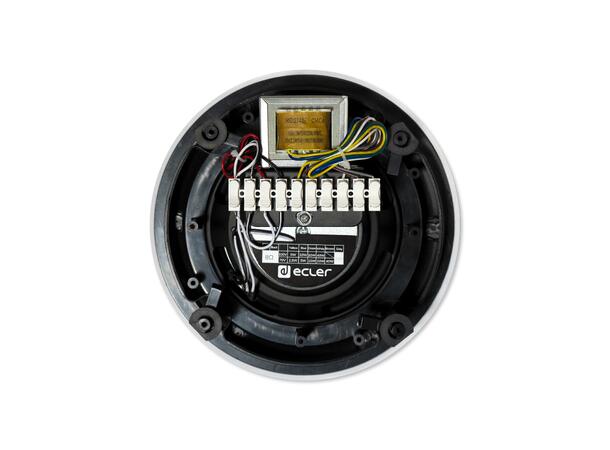

- 100V/70V in-line connection: 40/20/10/5/2.5W
- Paintable magnetic metal alloy grille
- Sensitivity (1W/1m) 89dB SPL
- Dimensions (ØxD) 232x105mm
- Available in white (RAL9010) finish
- Weight 1.8kg
Technical specifications
- Effective Freq. Range: 61Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 124° conical
- Power handling: 40W RMS/160W Peak
- Sensitivity: 89dB (1W/1m)
- Maximum SPL: 105dB continuous/111dB peak
- Power options (Hi Z Multi-tap): 100V: 40/20/10/5W/8 ohm, 70V: 40/20/10/5/2.5W/8 ohm
- Recommended amplifier power: 80W RMS
- Ways: 2-ways
- Low frequency driver: 6.5" woofer
- High frequency driver: 0.5" steerable tweeter
- Nominal impedance: 8 ohm
- Installation options: Ceiling
- Environmental: IPX4 rated
- Grille material: Magnetic, paintable metal alloy
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 232mm/9.13in
- Internal diameter: 205mm/8.07in
- Recommended cut out diameter: 206mm/8.11in
- Required depth: 110mm/4.33in
- Ceiling thickness: 10mm/0.39in min, 50mm/1.97in max
- Finished colour: White (RAL9010)
- Dimensions: 232x105mm/8.07x4.13in (ØxD)
- Weight: 1.8kg/3.97lb
- Pieces per box: Pair
- Shipping dimensions: 250x260x250mm/9.84x10.24x9.84in
- Shipping weight: 4.0kg/8.82lb
