VIC6X

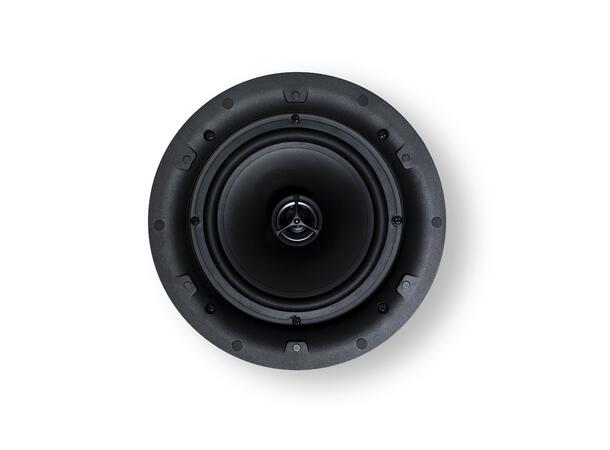

VIC6X is an in-ceiling loudspeaker with a 6.5" woofer + 0.5" steerable tweeter, 40WRMS@8ohm, including back can and tile bridge for flexible installation.
Main features
- 2-way false ceiling loudspeaker
- 6" polypropylene woofer
- 0.5" steerable tweeter
- 40WRMS@8 ohm
- 100V/70V in-line connection: 40/20/10/5/2.5W
- Sensitivity (1W/1m) 91dB SPL
- Paintable magnetic metal alloy grille
- Plastic back cover (back can) included
- Includes tile bridge anchors for false ceiling mounting
- Dimensions (ØxD) 232x170mm
- Available in white (RAL9010) finish
- Weight 2.3kg
Technical specifications
- Effective Freq. Range: 85Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 166° conical
- Power handling: 40W RMS/160W Peak
- Sensitivity: 91dB (1W/1m)
- Maximum SPL: 107dB continuous/113dB peak
- Power options (Hi Z Multi-tap): 100V: 40/20/10/5W/8 ohm, 70V: 40/20/10/5/2.5W/8 ohm
- Recommended amplifier power: 80W RMS
- Ways: 2-ways
- Low frequency driver: 6.5" woofer
- High frequency driver: 0.5" steerable tweeter
- Nominal impedance: 8 ohm
- Installation options: Ceiling
- Environmental: IPX4 rated
- Grille material: Magnetic, paintable metal alloy
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 232mm/9.13in
- Internal diameter: 205mm/8.07in
- Recommended cut out diameter: 206mm/8.11in
- Required depth: 170mm/6.69in
- Ceiling thickness: 10mm/0.39in min, 50mm/1.97in max
- Included accessories: Back-can and tile bridge
- Finished colour: White (RAL9010)
- Dimensions: 232x170mm/9.1x6.7in (ØxD)
- Weight: 2.3kg/5lb
- Pieces per box: Pair
- Shipping dimensions: 285x225x555mm/11.22x8.86x21.85in
- Shipping weight: 5.2kg/11.46lb
