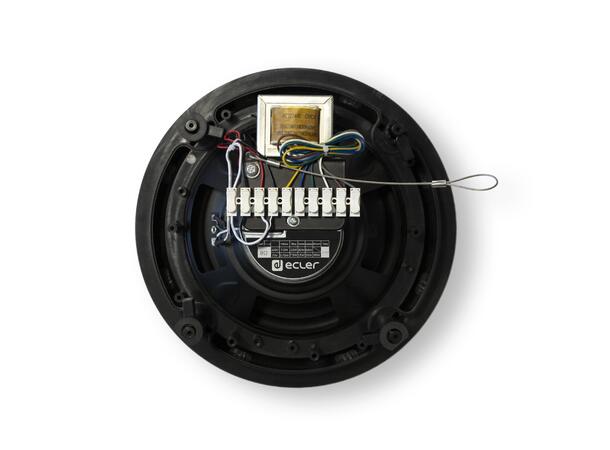

VIC8
VIC8 is an in-ceiling loudspeaker with an 8" woofer + 0.5" steerable tweeter, 60WRMS@8 ohm, and a 70/100V line transformer with 60/30/15/7.5/3.75W power connections.
Main features
- 2-way false ceiling loudspeaker
- 8" polypropylene woofer
- 0.5" steerable tweeter
- Output 60WRMS@8 ohm
- 100V/70V in-line connection: 60/30/15/7.5/3.75W
- Sensitivity (1W/1m) 90dB SPL
- Paintable magnetic metal alloy grille
- Dimensions (ØxD) 232x115mm
- Available in white (RAL9010) finish
- Weight 2.3kg
Technical specifications
- Effective Freq. Range: 59Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 120° conical
- Power handling: 60W RMS/240W Peak
- Sensitivity: 90dB (1W/1m)
- Maximum SPL: 108dB continuous/114dB peak
- Power options (Hi Z Multi-tap): 100V: 60/30/15/7.5W/8 ohm, 70V: 60/30/15/7.5/3.75W/8 ohm
- Recommended amplifier power: 120W RMS
- Ways: 2 ways
- Low frequency driver: 8" woofer
- High frequency driver: 0.5" steerable tweeter
- Nominal impedance: 8 ohm
- Installation options: Ceiling
- Environmental: IPX4 rated
- Grille material: Magnetic, paintable metal alloy
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 282mm/11.10in
- Internal diameter: 245mm/9.64in
- Recommended cut out diameter: 246mm/9.69in
- Required depth: 120mm/4.72in
- Ceiling thickness: 10mm/0.39in min, 50mm/1.97in max
- Finished colour: White (RAL9010)
- Dimensions: 282x115mm/11.1x4.5in (ØxD)
- Weight: 2.3kg/5.07lb
- Pieces per box: Pair
- Shipping dimensions: 305x280x305mm/12x11.02x12in
- Shipping weight: 5.5kg/12.13lb
