VICSB8
VICSB8 is an in-ceiling subwoofer reinforcement loudspeaker with an 8" woofer, 80WRMS@8ohm, integrating a crossover filter.
Main features
- False Ceiling Subwoofer Unit

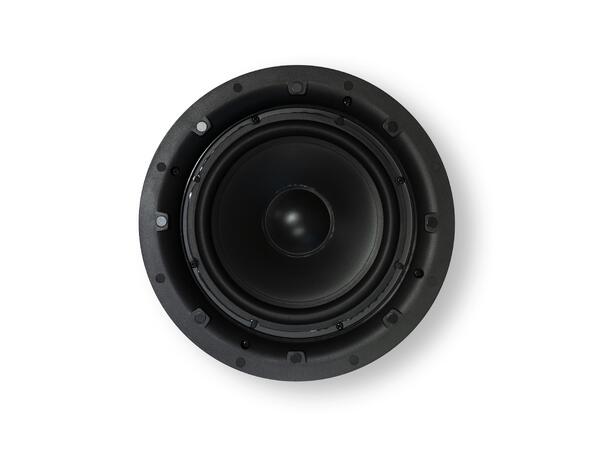

- 8" polypropylene woofer
- Output 80WRMS@8 ohm
- 100V/70V in-line connection: 60/30/15/7.5/3.75W
- Sensitivity (1W/1m) 78dB SPL

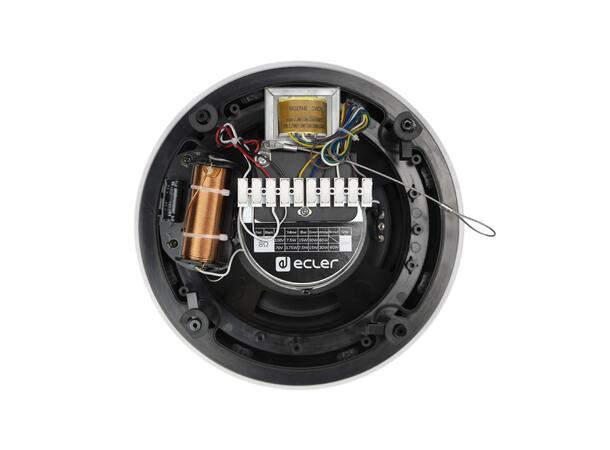

- Crossover included
- Paintable magnetic metal alloy grille
- Dimensions (ØxD) 282x135mm
- Available in white (RAL9010) finish
- Weight 3.2kg
Technical specifications
- Effective Freq. Range: 38Hz-180Hz (-10dB)
- Power handling: 80W RMS/320W Peak
- Sensitivity: 78dB (1W/1m)
- Maximum SPL: 97dB continuous/103dB peak
- Power options (Hi Z Multi-tap): 100V: 60/30/15/7.5W/8 ohm, 70V: 60/30/15/7.5/3.75W/8 ohm
- Recommended amplifier power: 160W RMS
- Ways: 1-way subwoofer
- Driver: LF 8" woofer
- Nominal impedance: 8 ohm
- Installation options: Ceiling
- Environmental: IPX4 rated
- Grille material: Magnetic, paintable metal alloy
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 282mm/11.10in
- Internal diameter: 245mm/9.64in
- Recommended cut out diameter: 246mm/9.69in
- Required depth: 135mm/5.31in
- Ceiling thickness: 10mm/0.39in min, 50mm/1.97in max
- Finished colour: White (RAL9010)
- Dimensions: 282x135mm/11.1x5.3in (ØxD)
- Weight: 3.2kg/7.05lb
- Pieces per box: Unit
- Shipping dimensions: 300x150x300mm/11.81x5.91x11.81in
- Shipping weight: 3.7kg/8.16lb
