VICSB8X
VICSB8X is an in-ceiling subwoofer reinforcement loudspeaker with an 8" woofer, 80WRMS@8ohm, integrating a crossover filter, including back can and tile bridge.
Main features
- False Ceiling Subwoofer Unit

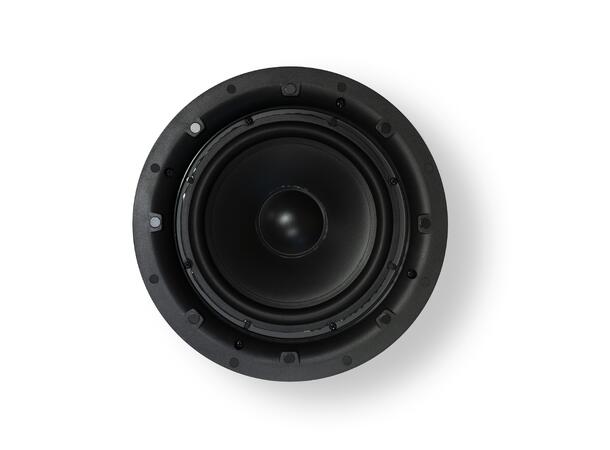

- 8" polypropylene woofer
- 80WRMS@8 ohm
- 100V/70V in-line connection: 60/30/15/7.5W @100V
- Sensitivity (1W/1m) 89dB SPL
- Crossover included
- Paintable magnetic metal alloy grille

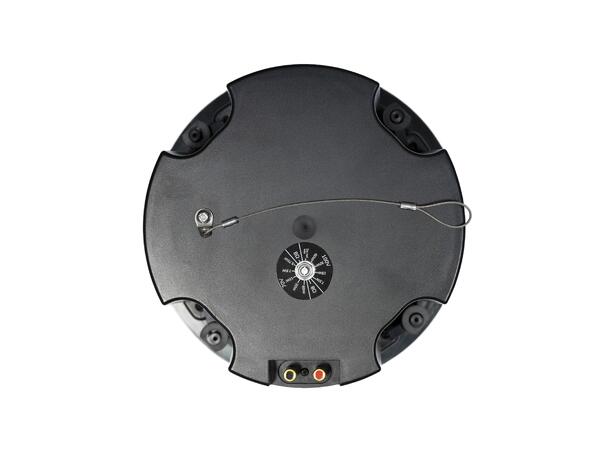

- Plastic back cover (back can) included
- Includes tile bridge anchors
- Dimensions (ØxD) 282x200mm
- Available in white (RAL9010) finish
- Weight 3.9kg
Technical specifications
- Effective Freq. Range: 35Hz-185Hz (-10dB)
- Power handling: 80W RMS/320W Peak
- Sensitivity: 89dB (1W/1m)
- Maximum SPL: 108dB continuous/114dB peak
- Power options (Hi Z Multi-tap): 100V: 60/30/15/7.5W/8 ohm, 70V: 60/30/15/7.5/3.75W/8 ohm
- Recommended amplifier power: 160W RMS
- Ways: 1-way subwoofer
- Driver: LF 8" woofer
- Nominal impedance: 8 ohm
- Installation options: Ceiling
- Environmental: IPX4 rated
- Grille material: Magnetic, paintable metal alloy
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 282mm/11.10in
- Internal diameter: 245mm/9.64in
- Recommended cut out diameter: 246mm/9.69in
- Required depth: 200mm/7.87in
- Ceiling thickness: 10mm/0.39in min, 50mm/1.97in max
- Included accessories: Tile bridge and Back can
- Finished colour: White (RAL9010)
- Dimensions: 282x200mm/11.1x7.9in (ØxD)
- Weight: 3.9kg/8.59lb
- Pieces per box: Unit
- Shipping dimensions: 300x240x585mm/11.81x9.45x23.03in
- Shipping weight: 8.5kg/18.74lb
