NIC-3
NIC-3 is a 1-way in-ceiling/in-wall loudspeaker for 70/100V line and low-impedance sound systems, delivering 20W RMS with a 3" full-range woofer, IP66 rated, ART acoustic back-can.
Main features
- 1-way in-ceiling loudspeaker, 20WRMS
- 3" woofer

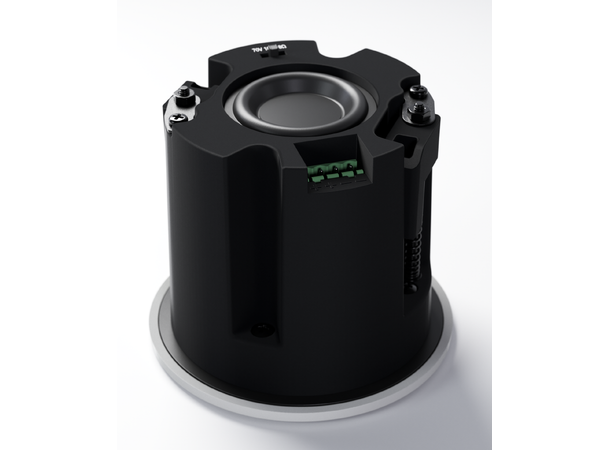

- ART technology Backcan
- Euroblock connector
- 8 ohm nominal impedance
- High impedance built-in transformer (8 ohm-70V-100V)
- IP66 rated

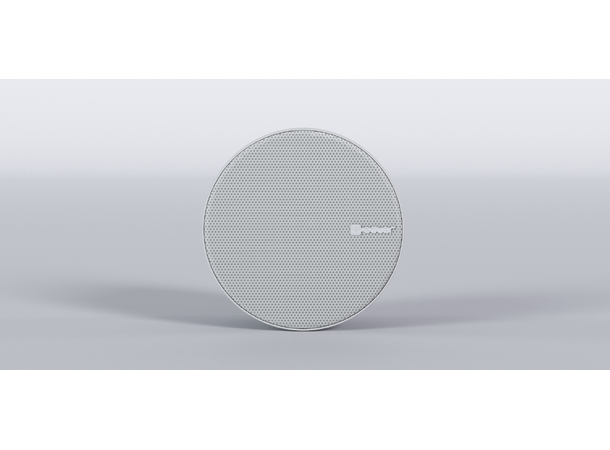

- Bayonet aluminium frameless front grill easily removable
- Ecler logo removable
- Fast installation with basic tools
- Suitable for ceilings and suspended ceilings with no extra accessories required
- Available in white (RAL9003)
- Optional black grill finish available (NICRG3BK accessory)
- EASE files available
Technical specifications
- Effective Freq. Range: 108Hz-22kHz (-10dB)
- Coverage angle/Dispersion: 140° conical
- Power handling: 20W RMS/40W Program/80W Peak
- Sensitivity: 85dB
- Maximum SPL: 98dB continuous/104dB peak
- Power options (Hi Z Multi-tap): 20W-8 ohm/10W-100V-70V
- Recommended amplifier power: 40W RMS
- Ways: 1-way full range

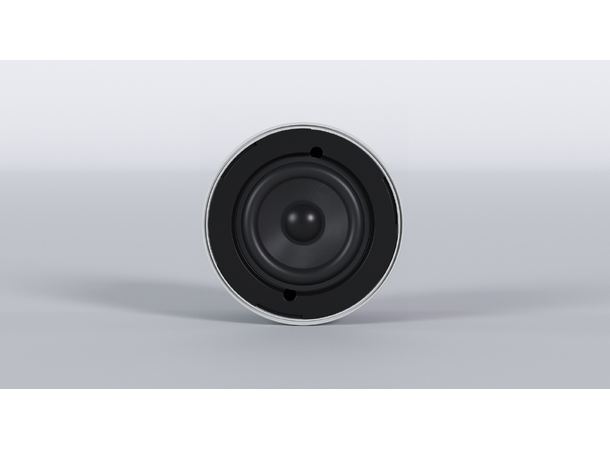

- Low frequency driver: 3" Woofer
- Nominal impedance: 8 ohm

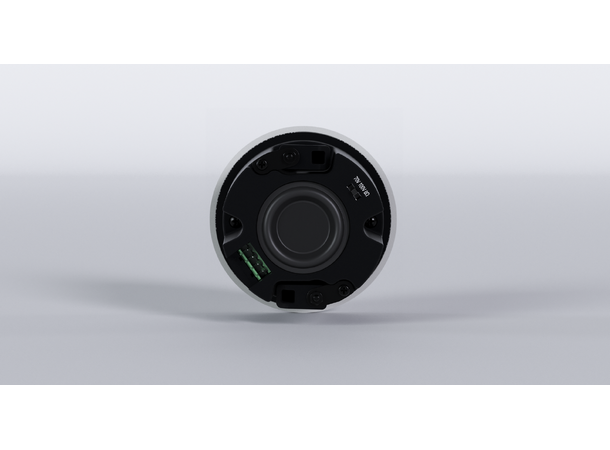

- Connection type: 4-pin Euroblock connector (rear), accepts 18AWG(0.8mm²) to 14AWG(2.5mm²)
- Installation options: In-ceiling/In-wall
- Environmental: IP66
- Enclosure material: ABS plastic
- Grille material: Aluminum
- Grille fixing system: Bayonet

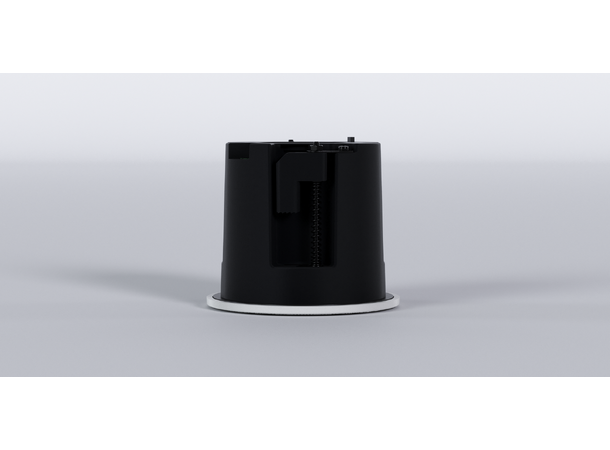

- Mounting system: 2 rotating tabs
- Operating temperature: Min -30°C/-22°F, Max 65°C/149°F
- Operating humidity: <85% HR
- Storage temperature: Min -30°C/-22°F, Max 65°C/149°F
- Storage humidity: <85% HR
- External diameter: 113.5mm/4.47in
- Internal diameter: 97mm/3.82in
- Recommended cut out diameter: 100mm/3.94in
- Required depth: >120mm/4.72in
- Ceiling thickness: Min 10mm/0.39in, Max 60mm/2.37in
- Included accessories: 4-pin connector, 1 cutting template
- Optional accessories: NICRG3BK (Grille Black RAL9005)
- Finished colour: White (RAL9003)
- Dimensions: 113.5x113.5x95mm/4.47x4.47x3.74in
- Weight: 0.54kg/1.19lb
- Pieces per box: 1
- Shipping dimensions: 155x145x145mm/6.10x5.71x5.71in
- Shipping weight: 0.86kg/1.90lb
