NIC-6
NIC-6 is a 2-way in-ceiling/in-wall loudspeaker for both 70/100V and low-impedance installations, delivering 50W RMS with a 6.5" woofer + 1" steerable dome tweeter, IP66 rated, ART acoustic back-can.
Main features
- 2-way in-ceiling loudspeaker, 50WRMS
- 6.5" woofer + 1" steerable dome tweeter
- ART technology Backcan
- Euroblock connector accessible from front panel
- 8 ohm nominal impedance
- High impedance built-in transformer for multiple units on a 70V/100V line
- 8 ohm or high impedance selection accessible from the front even after installation
- IP66 rated

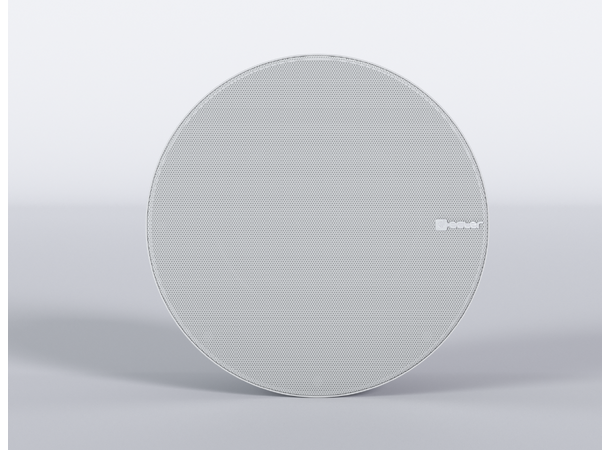

- Magnetic frameless front grill easily removable
- Ecler logo removable
- Fast installation with basic tools
- Available in white (RAL9003)
- Optional black grill (NICRG6BK)
- Optional tile bridge (NIC-TB6)
- EASE files available
Technical specifications
- Effective Freq. Range: 66Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 103° conical
- Power handling: 50W RMS/100W Program/200W Peak
- Sensitivity: 88dB (1W/1m)
- Maximum SPL: 105dB continuous/111dB peak
- Power options (Hi Z Multi-tap): 100V: 12.5/25/50W, 70V: 6.25/12.5/25W
- Recommended amplifier power: 100W RMS
- Ways: 2-ways full range
- Low frequency driver: 6.5" Woofer
- High frequency driver: 1" Steerable Dome Tweeter
- Nominal impedance: 8 ohm
- Connection type: 4-pin Euroblock connector (front), accepts 18AWG(0.8mm²) to 14AWG(2.5mm²)
- Installation options: In-ceiling/In-wall
- Environmental: IP66
- Enclosure material: ABS plastic
- Grille material: Iron
- Grille fixing system: Magnets
- Mounting system: 3 rotating tabs
- Operating temperature: Min -30°C/-22°F, Max 65°C/149°F
- Operating humidity: <85% HR
- Storage temperature: Min -30°C/-22°F, Max 65°C/149°F
- Storage humidity: <85% HR
- External diameter: 267mm/10.51in
- Internal diameter: 229mm/9.02in
- Recommended cut out diameter: 232mm/9.69in
- Required depth: >190mm/7.48in
- Ceiling thickness: Min 10mm/0.39in, Max 60mm/2.37in
- Included accessories: 4-pin connector, 1 cutting template
- Optional accessories: NICRG6BK (Grille Black RAL9005), NIC-TB6 (tile bridge)
- Finished colour: White (RAL9003)
- Dimensions: 267x267x169mm/10.51x10.51x6.65in
- Weight: 3.12kg/6.88lb
- Pieces per box: 1
- Shipping dimensions: 315x315x250mm/12.40x12.40x9.84in
- Shipping weight: 4.4kg/9.7lb
