NIC-8
NIC-8 is a high-performance 2-way in-ceiling/in-wall loudspeaker for 70/100V and low-impedance installations, delivering 70W RMS with an 8" woofer + 1" dome tweeter, IP66 rated, ART acoustic back-can.
Main features
- 2-way in-ceiling loudspeaker, 70W RMS

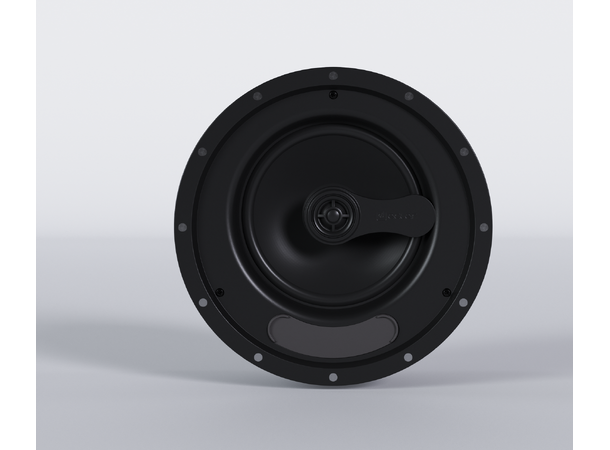

- 8" woofer + 1" steerable dome tweeter

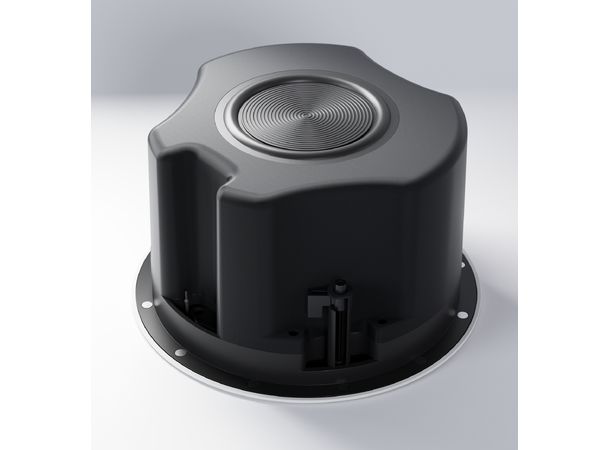

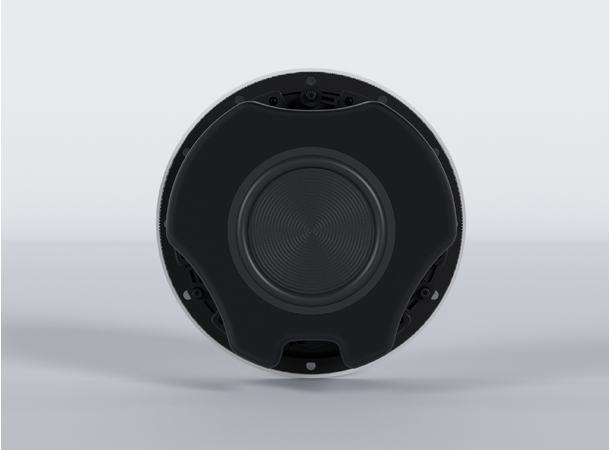

- ART technology Backcan

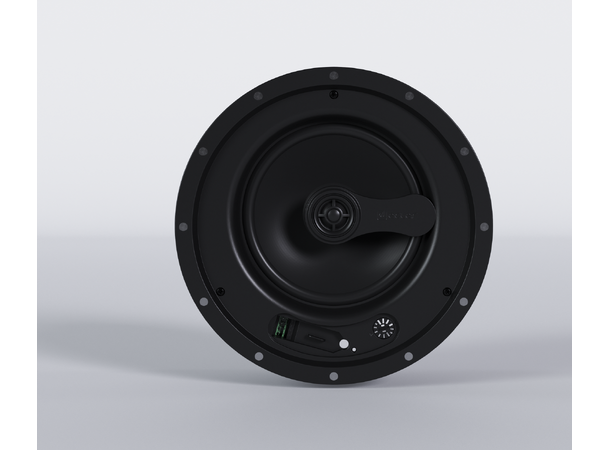

- Euroblock connector accessible from front panel
- 8 ohm nominal impedance
- High impedance built-in transformer for multiple units
- 8 ohm or high impedance selection accessible from the front even after installation
- IP66 rated

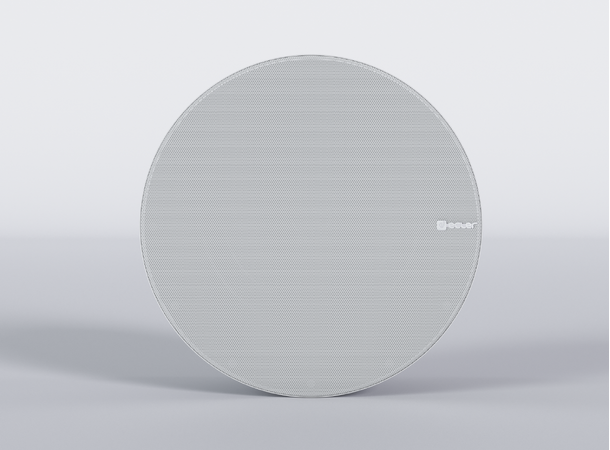

- Magnetic frameless front grill easily removable
- Ecler logo removable
- Fast installation with basic tools
- Available in white (RAL9003)
- Optional black grill (NICRG8BK)
- Optional tile bridge (NIC-TB8)
- EASE files available
Technical specifications
- Effective Freq. Range: 59Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 109° conical
- Power handling: 70W RMS/140W Program/280W Peak
- Sensitivity: 86dB
- Maximum SPL: 104dB continuous/110dB peak
- Power options (Hi Z Multi-tap): 100V: 8.75/17.5/35/70W, 70V: 4.37/8.75/17.5/35W
- Recommended amplifier power: 140W RMS
- Ways: 2-ways full range
- Low frequency driver: 8" Woofer
- High frequency driver: 1" Steerable Dome Tweeter
- Nominal impedance: 8 ohm
- Connection type: 4-pin Euroblock connector (front), accepts 18AWG(0.8mm²) to 14AWG(2.5mm²)
- Installation options: In-ceiling/In-wall
- Environmental: IP66
- Enclosure material: ABS plastic
- Grille material: Iron
- Grille fixing system: Magnets

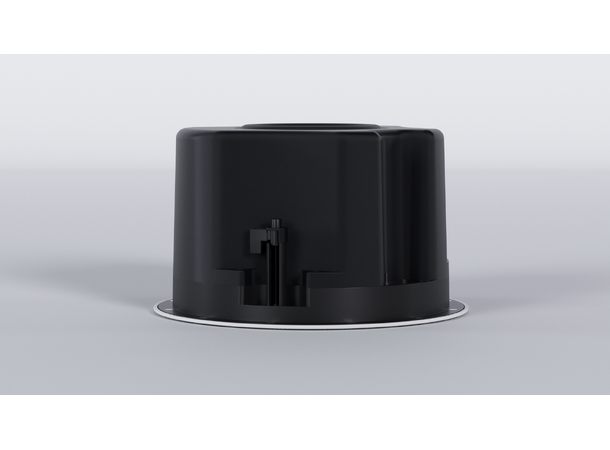

- Mounting system: 3 rotating tabs
- Operating temperature: Min -30°C/-22°F, Max 65°C/149°F
- Operating humidity: <85% HR
- Storage temperature: Min -30°C/-22°F, Max 65°C/149°F
- Storage humidity: <85% HR
- External diameter: 314mm/12.36in
- Internal diameter: 276mm/10.87in
- Recommended cut out diameter: 278mm/10.94in
- Required depth: >200mm/7.87in
- Ceiling thickness: Min 10mm/0.39in, Max 60mm/2.37in
- Included accessories: 4-pin connector, 1 cutting template
- Optional accessories: NICRG8BK (Grille Black RAL9005), NIC-TB8 (tile bridge)
- Finished colour: White (RAL9003)
- Dimensions: 314x314x181mm/12.36x12.36x7.13in
- Weight: 4kg/8.82lb
- Pieces per box: 1
- Shipping dimensions: 365x355x260mm/14.37x13.98x10.24in
- Shipping weight: 5.7kg/12.57lb
