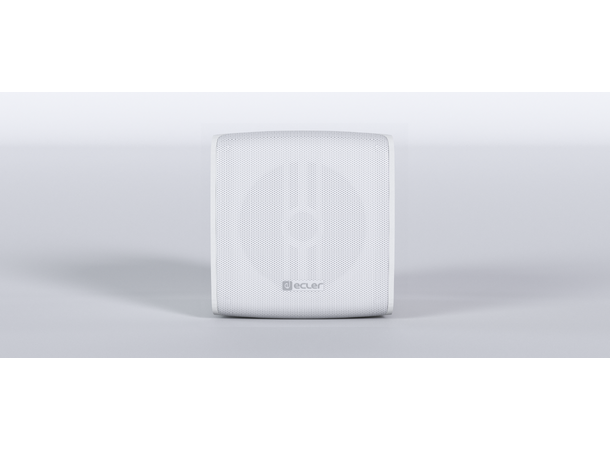

eMOTUS5PB
eMOTUS5PB is a compact wireless stereo loudspeaker kit (active + passive cabinet) with 2x25W integrated amplifier, Bluetooth, balanced/unbalanced audio inputs, IR remote control and 0-10VDC remote volume port.
Main features
- Stereo 2-way loudspeaker kit - powered + passive
- Full range 5" woofer, 1" tweeter
- Integrated amplifier 2x25 WRMS (MASTER unit)
- Volume and tone control (bass & treble) on MASTER

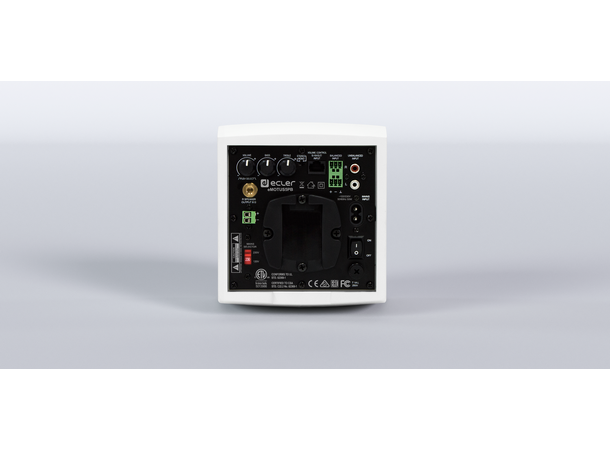

- Euroblock balanced stereo input
- Non-balanced RCA input
- Wireless BT stereo input
- Mono/Stereo switch
- Link between MASTER and SLAVE via Euroblock
- Integrated power supply (MASTER)
- Selectable 115/230VAC
- Auto standby function
- Integrated Anti-Clip System
- LED activity display
- Reinforced ABS construction

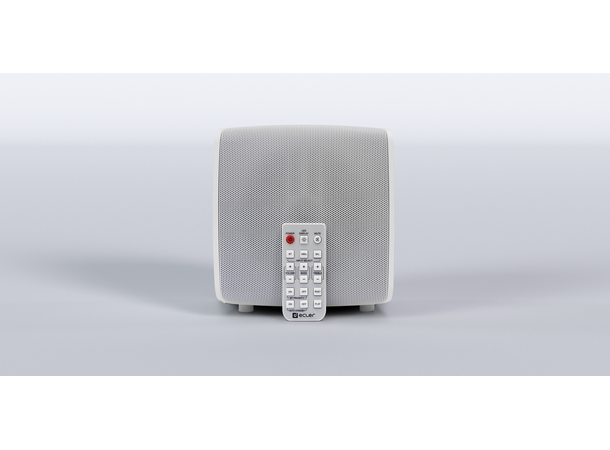

- BT wireless + remote control port (0-10VDC, RJ45) + remote control
- eMOTUSBT app (iOS/Android)
- Includes wall bracket and security steel cable
- Available in white colour
Technical specifications
- Effective Freq. Range: 85Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 124°x124° (HxV)
- Power handling: 25W RMS / 100W Peak
- Sensitivity: 77 dB (1W/1m)
- Maximum SPL: 91 dB continuous / 97 dB peak
- Ways: 2 ways
- Low frequency driver: 5" woofer
- High frequency driver: 1" tweeter
- Nominal impedance: 8 ohm
- Connection type: Euroblock and RCA
- Enclosure material: ABS

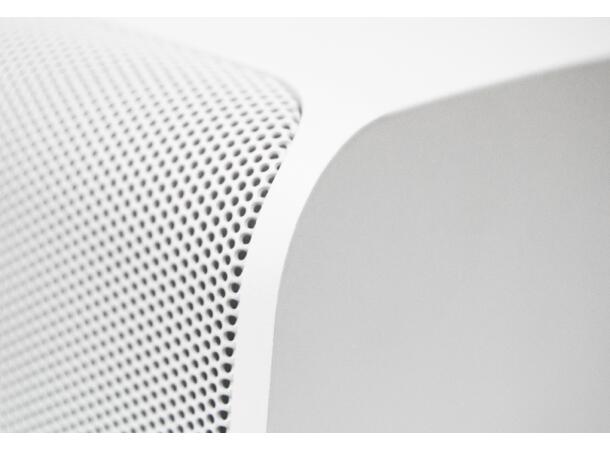

- Grille material: Aluminium
- Mounting system: Cabinet
- Operating temperature: -20°C to 70°C
- Operating humidity: <85% HR
- Storage temperature: -20°C to 70°C
- Storage humidity: <90% HR
- Included accessories: Remote control, wall bracket and security steel cable
- Finished colour: White (RAL9003)
- Dimensions: not incl. brackets 173x180x181mm; incl. brackets 173x180x249mm
- Weight: 4.8kg (5.3kg incl. accessories)
- Pieces per box: Unit
- Shipping dimensions: 230 x 220 x 460 mm
- Shipping weight: 5.7 kg
- Power (Powered section): 2x25 W RMS / 100 W Peak
- Audio inputs: 2 analogue (balanced Euroblock, unbalanced RCA) + BT input
- THD+Noise: =0.5% @1kHz Full PWR
- Input sensitivity: 525mV/22k ohm
- CMRR: =80dB
- Volume control: Remote port (RJ-45), WPaVOL compatible
- Tone control: ±14dB
- Mains: 115/230VAC (selectable)
- Auto standby time: 2'30"
- Power consumption: 1/8 power@8ohm =10.5W; 1/3 power@8ohm =23W
- Power consumption standby: =3W
- Communication interfaces: BT 4.0 module compliant
