eCMP8

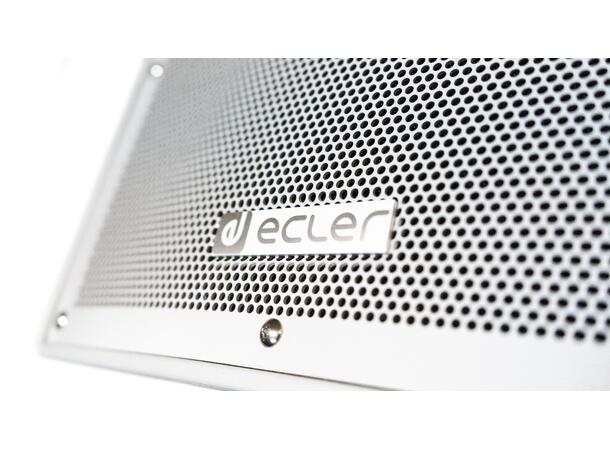

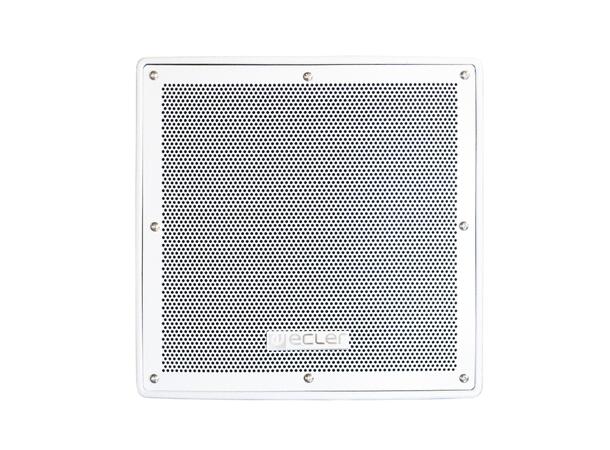

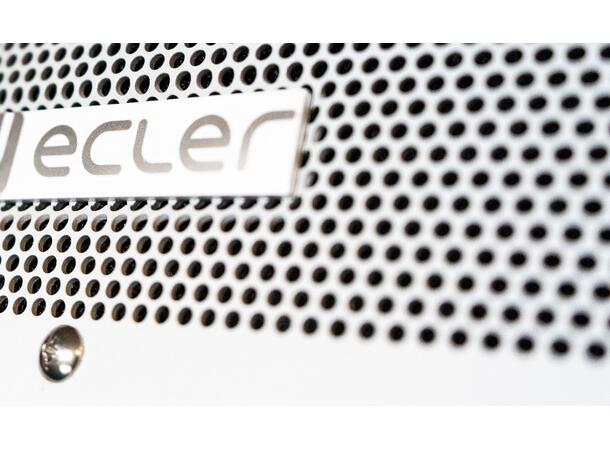

eCMP8 is a 150W high efficiency musical projector ready for outdoor applications, weatherproof (IP56), with 8" LF driver and 1.4" HF coaxial driver, 70/100V line transformer.
Main features
- Weatherproof 2-way music projector
- 150 W @ 8 ohm
- Power options 100V 37.5/75/150W/OFF and 8 ohm
- Power options 70V 18.75/37.5/75W/OFF and 8 ohm
- Input and output connection via terminal block
- Dispersion (HxV) 135°x135°
- Material polypropylene, aluminium (grille), hot-dipped galvanized steel (U-bracket)
- Weather-resistant IP56 rating
Technical specifications
- Effective Freq. Range: 87 Hz-20 kHz (-10dB)
- Coverage angle/Dispersion: 135°x135° (HxV)
- Power handling: 150 W RMS / 600 W Peak
- Sensitivity: 97dB (1W/1m)
- Maximum SPL: 119 dB continuous / 125 dB peak
- Power options (Hi Z Multi-tap): 100V 150/75/37.5W/OFF & 8 ohm; 70V 75/37.5/18.75W/OFF & 8 ohm
- Recommended amplifier power: 300 W RMS
- Ways: 2-ways long throw
- Low frequency driver: 8"
- High frequency driver: 1.4" coaxial
- Nominal impedance: 8 ohm
- Crossover filter: 2,1 kHz
- Connection type: Terminal block (input+output)
- Environmental: IP56
- Enclosure material: Polypropylene
- Grille material: Aluminium
- Mounting system: Hot-dipped galvanized steel U-bracket
- Operating temperature: -20°C to 70°C
- Operating humidity: <85% HR
- Storage temperature: -20°C to 70°C
- Storage humidity: <90% HR
- Finished colour: Grey (RAL 538C)
- Dimensions: 300 x 302 x 280 mm (with mounting bracket total depth 334mm)
- Weight: 11.0 kg
- Pieces per box: Unit
- Shipping dimensions: 360 x 355 x 335 mm
- Shipping weight: 11.7 kg
