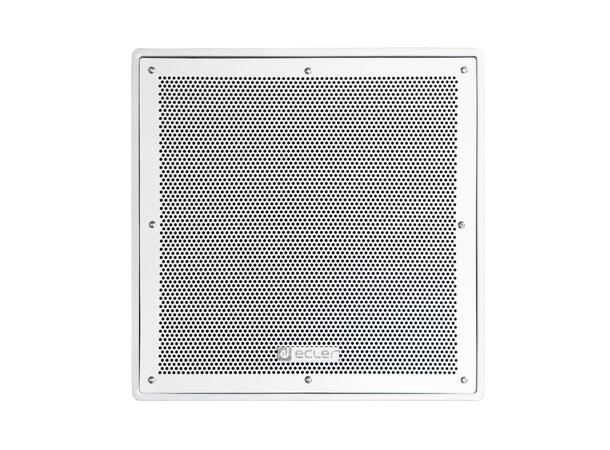

eCMP12
Waterproof 300W musical projector for outdoor use with 12" LF driver and 1.7" HF coaxial driver, IP56 rated, 70/100V line transformer.
Main features
- Weatherproof 2-way music projector
- 300 W @ 8 ohm
- Power options 100V: 50/100/200W/OFF and 8 ohm
- Power options 70V: 25/50/100W/OFF and 8 ohm
- Input and output connection via terminal block
- Dispersion (HxV): 107°x107°
- Material: Polypropylene, aluminium (grille), hot-dipped galvanized steel (U-bracket)
- Weather-resistant IP56 rating
Technical specifications
- Effective Freq. Range: 91 Hz-20 kHz (-10dB)
- Coverage angle/Dispersion: 107°x107° (HxV)
- Power handling: 300 W RMS / 1200 W Peak
- Sensitivity: 100 dB (1W/1m)
- Maximum SPL: 125 dB continuous / 131 dB peak
- Power options (Hi Z Multi-tap): 100V: 200/100/50W/OFF and 8 ohm, 70V: 100/50/25W/OFF and 8 ohm
- Recommended amplifier power: 600 W RMS
- Ways: 2-ways long throw
- Low frequency driver: 12"
- High frequency driver: 1.7" coaxial
- Nominal impedance: 8 ohm
- Crossover filter: 2.1 kHz
- Connection type: Terminal block (input+output)
- Environmental: IP56 rated
- Enclosure material: Polypropylene
- Grille material: Aluminium
- Mounting system: Hot-dipped galvanized steel U-bracket
- Finished colour: Grey (RAL 538C)
- Dimensions: 407 x 410 x 378 mm
- Weight: 20.0 kg
