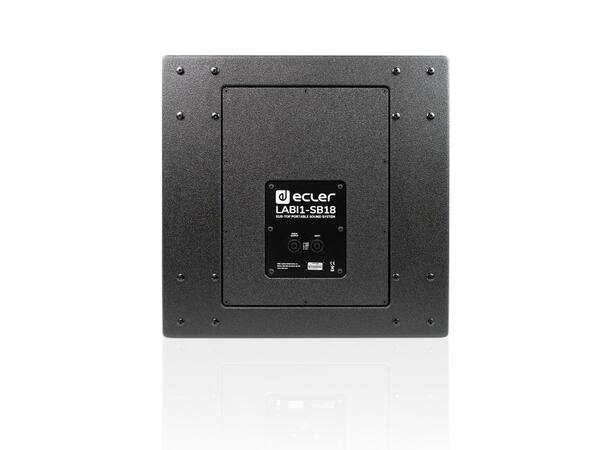

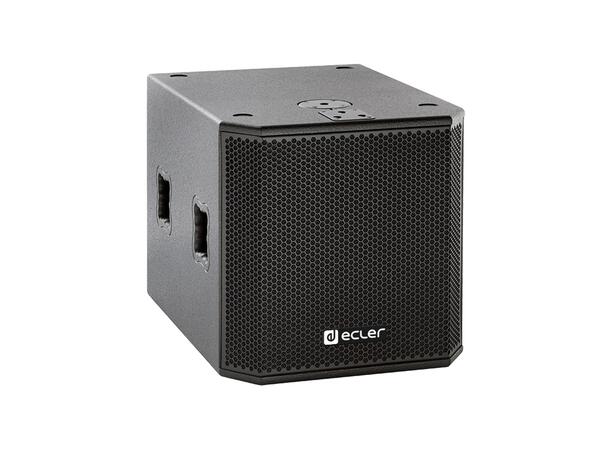

LABI1-SB18
18" passive subwoofer, 500W AES @ 8 ohm, for fixed installations and portable applications; combinable with LABI1-C100i column.
Main features
- 18" passive subwoofer, compact design
- 500W AES
- Frequency range (-10dB) 38Hz-250Hz
- Max SPL 132 dB
- 1 input + 1 stack output Speakon connector
- User control interface with LCD
- Black finish
- Part of modular LABI1 series
Technical specifications
- Effective Freq. Range: 38Hz-250Hz (-10dB)
- Power handling: 500 W AES / 2000 W Peak
- Sensitivity: 98dB (1W/1m)
- Maximum SPL: 132 dB
- Recommended amplifier power: 1000 W
- Driver: 18" passive subwoofer
- Nominal impedance: 8 ohm
- Connection type: 2 x Speakon (1x stack output)
- Enclosure material: 15mm premium birch plywood with polyurea coating
- Finished colour: Black (RAL 9005)
- Dimensions: 513 x 513 x 704 mm
- Weight: 37.1 kg
