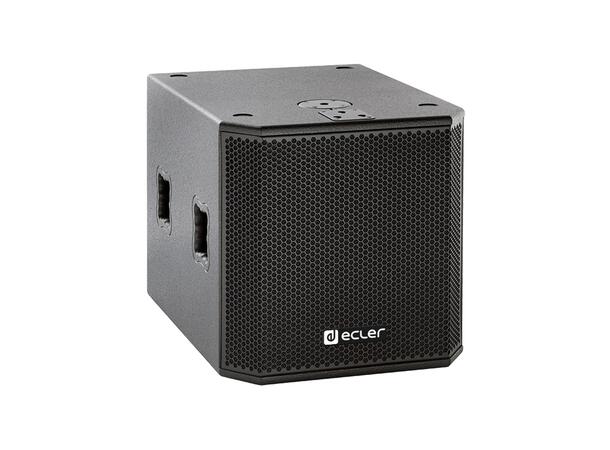

LABI1-SB18p
18" powered subwoofer with 2400W Class D built-in amplification, able to power up to 4x LABI1-C100i columns.
Main features
- 2400W Class D built-in amplification (1200W LF + 2x600W)
- 18 factory presets
- DC protection
- LCD control interface

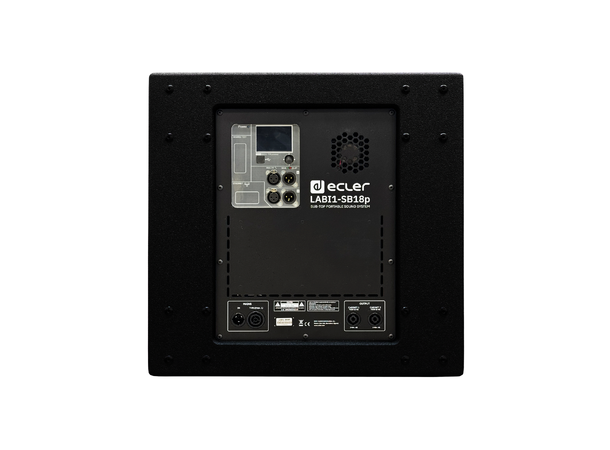

- 2x input XLR3 balanced + 2x stack output + 2x powered Speakon outputs
- Black finish
- Part of modular LABI1 series
Technical specifications
- Effective Freq. Range: 38 Hz-250 Hz (-10dB)
- Maximum SPL: 132 dB
- Driver: 18" subwoofer + 3" voice coil
- Connection type: 2xXLR, 2xXLR3, 2xSpeakon
- Power: Low freq 1x1200W; Speaker output 600W@4 ohm+600W@4 ohm (bal) or 800W@4 ohm+400W@8 ohm (unbal)
- Mains: AC 100-240V/50-60Hz with PFC
- Enclosure material: 15mm premium birch plywood with polyurea coating
- Finished colour: Black (RAL 9005)
- Dimensions: 513 x 513 x 704 mm
- Weight: 39.1 kg
