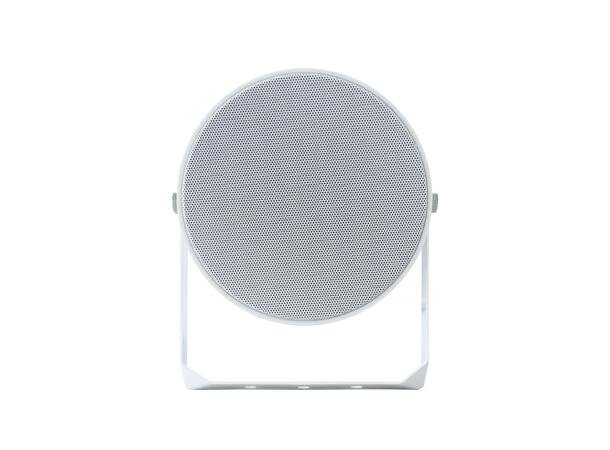

ePRS20Ti
20W sound projector for 70/100V paging and background music applications, reinforced ABS, IP55 certified for outdoor use.
Main features
- Water-resistant ABS sound projector
- Suitable for outdoor applications
- Power tappings for 70V and 100V
- IP-55 rating
- EASE Win file available
- White (RAL9016)
Technical specifications
- Effective Freq. Range: 170 Hz-19 kHz (-10dB)
- Coverage angle/Dispersion: 151°x151° (HxV)
- Power handling: 20 W RMS / 80 W Peak
- Sensitivity: 96 dB (1W/1m)
- Maximum SPL: 109 dB continuous / 115 dB peak
- Power options: 100V 20/10/5W, 70V 10/5/2.5W
- Recommended amplifier power: 40 W RMS
- Driver: 6.5"
- Connection type: Bare wire
- Environmental: IP55
- Enclosure material: ABS
- Finished colour: White (RAL 9016)
- Dimensions: 170 x 303 mm (ØxD)
- Weight: 1.8 kg
