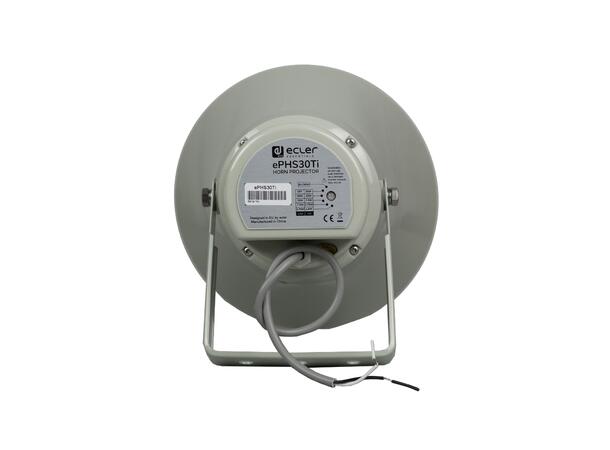

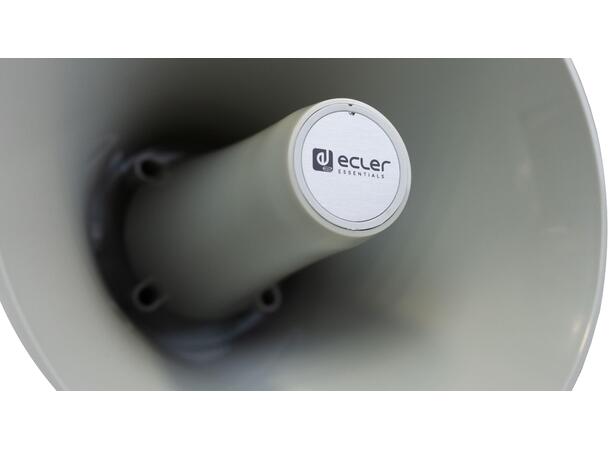

ePHS30Ti
30W horn loudspeaker for 70/100V paging and background music applications, reinforced ABS, IP66 certified for outdoor use.
Main features
- Water-resistant ABS horn loudspeaker
- Suitable for outdoor applications
- Power tappings for 70V and 100V
- EASE Win file available
- Light grey (RAL7035)
Technical specifications
- Effective Freq. Range: 300 Hz-10 kHz (-10dB)
- Coverage angle/Dispersion: 107°x107° (HxV)
- Power handling: 30 W RMS / 120 W Peak
- Sensitivity: 104 dB (1W/1m)
- Maximum SPL: 119 dB continuous / 125 dB peak
- Power options: 100V 30/15/7.5/3.75W/8 ohm, 70V 15/7.5/3.75/1.9W/8 ohm
- Recommended amplifier power: 60 W RMS
- Nominal impedance: 8 ohm
- Connection type: Bare wire
- Environmental: IP66
- Finished colour: Light grey (RAL 7035)
- Dimensions: 246 x 292 mm (ØxD)
- Weight: 2.4 kg
