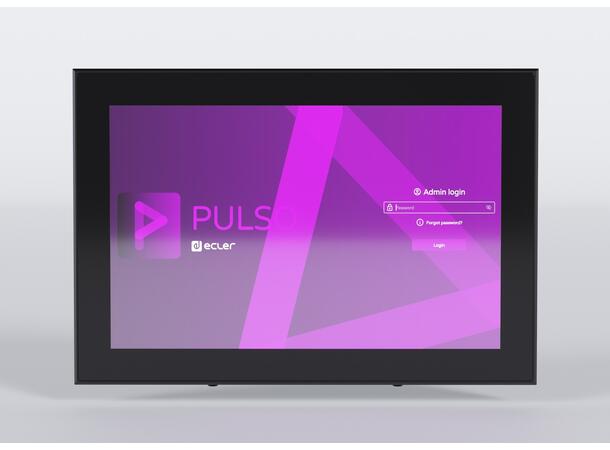

PULSO-10
10" digital control touch panel compatible with Ecler VIDA, HALO, HUB, EclerNet Manager and EclerPLEX ecosystems.
Main features
- 10" IPS screen (1280x800px)
- Capacitive & multitouch panel
- Web interface for configuration
- Fully customized user panels
- Compatible with VIDA, HALO, HUB, ENM
- PoE compatible
- 12VDC-2A external PSU compatible (not included)
- Standard EU round electrical box compatible
Technical specifications
- Processor: Quad-Core ARM up to 1.8GHz
- Screen size: 10"
- Resolution: 1280x800 pixels
- Touch-panel: 10 points capacitive
- Ethernet: 1 RJ-45, PoE supported
- Serial port: RS-232 Euroblock
- Power supply: DC 12V 2A & PoE
- Max power consumption: 9W
- Format: Standard EU single-gang
- Dimensions: 259 x 177 x 37 mm
- Weight: 0.68 Kg
