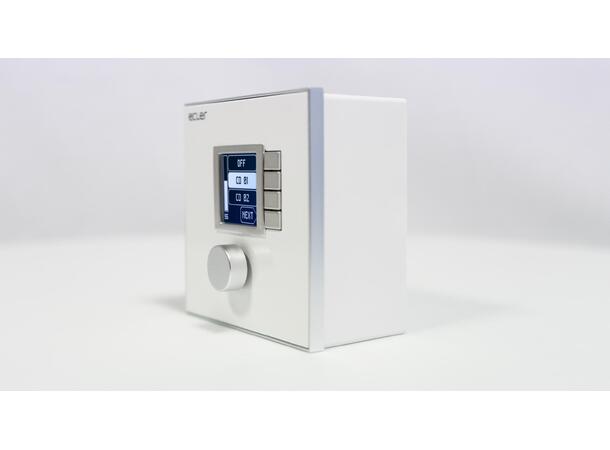

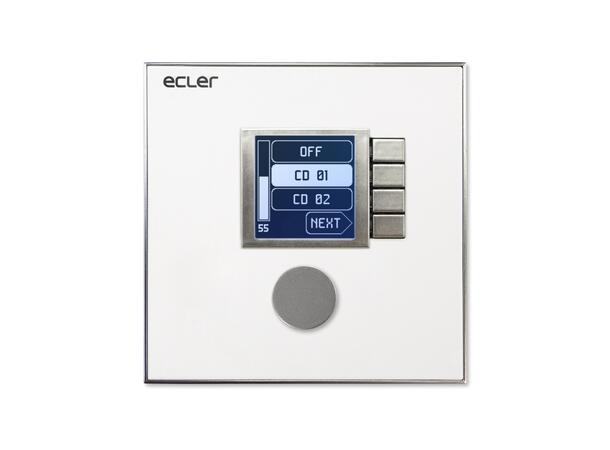

WPNET4KV
EclerNet-compatible wall control panel with LCD screen, rotary encoder and 4 direct selection keys; volume, source, preset control.
Main features
- Single European electrical box format (surface box supplied)
- Compatible with round installation box =60mm on newer serial numbers
- PoE or optional external WP24-PSU power
- Ethernet RJ45
- 128x128px LCD display
- Digital rotary encoder + 4 programmable keys
- MIMO4040DN remote control functions
Technical specifications
- Display: 128x128px LCD
- Buttons: 4 control keys
- Ethernet: 1 RJ45, CAT-5e+, PoE supported
- Power supply: External 12-24VDC, PoE class 0 802.3af
- Max power consumption: 35mA/1.6W (PoE), 1.5W (WP24-PSU)
- Format: Single EU
- Dimensions: 86 x 86 x 30 mm
- Weight: 0.12 kg
