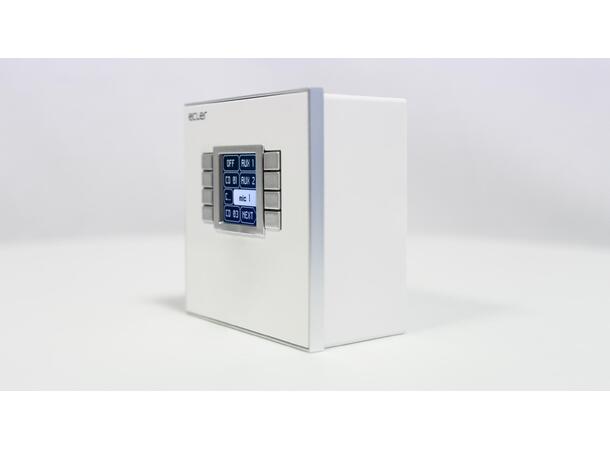

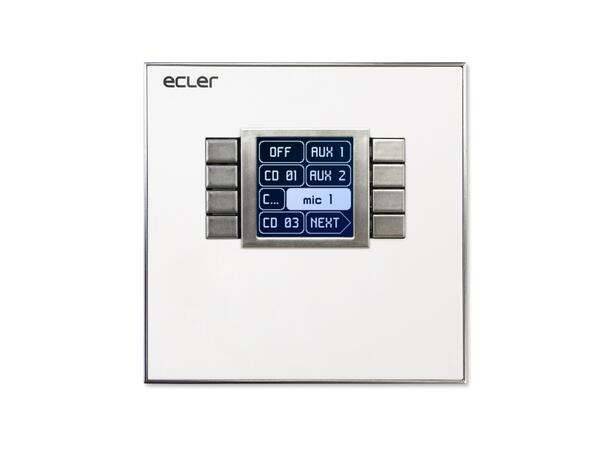

WPNET8K
EclerNet-compatible wall control panel with LCD screen and 8 selection keys, for presets or source selection.
Main features
- Remote control panel of MIMO4040CDN/MIMO7272DN
- Compatible with NXA/MIMO88/88SG/1212SG via dedicated firmware
- PoE or local power
- Ethernet interface
- Compatible with round install boxes =60mm
- Surface mount box included
Technical specifications
- Display: 128x128px LCD
- Buttons: 8x control keys
- Ethernet: 1 RJ45, CAT-5e+, PoE supported
- Power supply: External 12-24VDC, PoE class 0 802.3af
- Max power consumption: 35mA/1.6W (PoE), 1.5W (WP24-PSU)
- Format: Single EU
- Dimensions: 86 x 86 x 30 mm
- Weight: 0.12 kg
