WPaBT

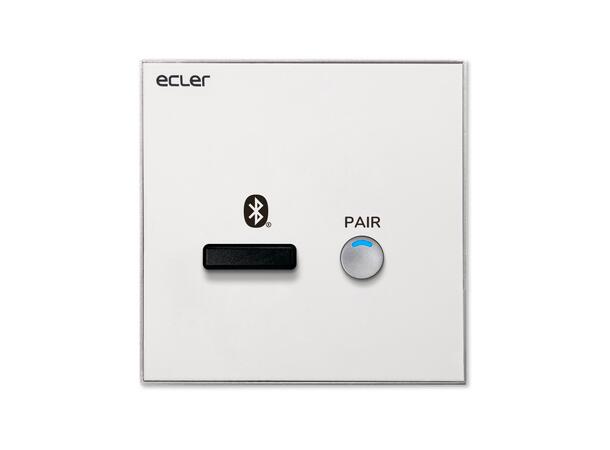

Class 1 Bluetooth wall panel receiver with balanced stereo Euroblock output, part of the WPa remote control wall panel series.
Main features
- Bluetooth receiver in WPa wall panel format
- Class 1 (range 25m), version V5.0, A2DP profile
- Balanced stereo Euroblock output, dual-mono configurable
- PAIR button with LED (can be disabled)
- Ecler Bluetooth Manager app configuration (Windows)
- External 24VDC power (WP24-PSU) or via eMCONTROL1 bus
- GPO for active A2DP connection indication
- USB-C configuration port (hidden)
- Compatible with 60mm round electrical boxes

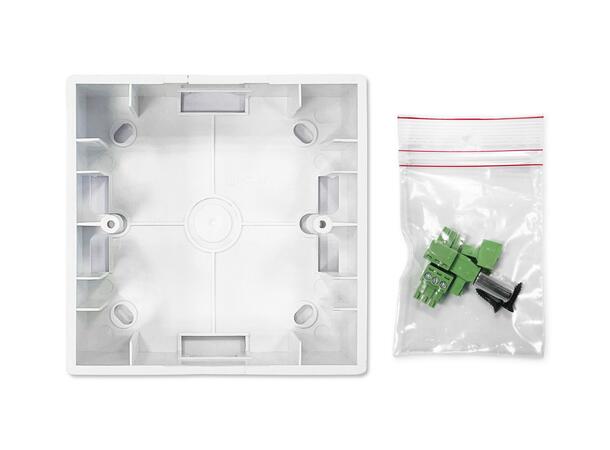

- Surface mounting box included
Technical specifications
- Type: Bluetooth Receiver
- Format: Double Gang EU
- Installation: Surface, in-wall
- Enclosure material: Zincor front panel, plastic frame
- Finished colour: White (RAL 9003)
- Dimensions: 86 x 86 x 25 mm
- Weight: 0.14 kg
