WPaVOL-SR-J
Wall-mounted remote control for volume management and source/preset selection, compatible with all devices with a 0-10VDC remote control port. Includes a front panel stereo mini-jack connector.
Main features
- Single volume management + source/preset selection
- Front panel stereo mini-jack connector
- Compatible with all 0-10V DC REMOTE control ports

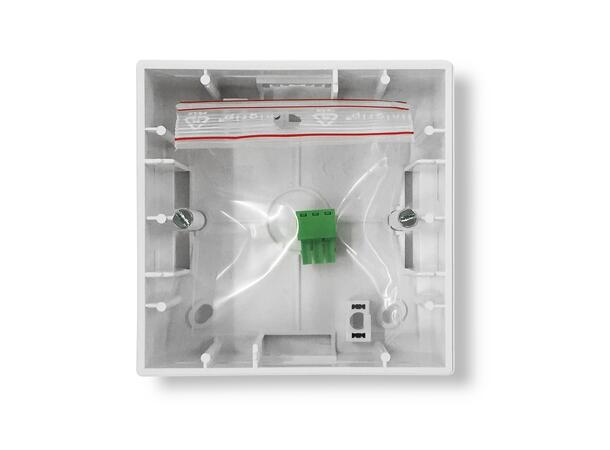

- Surface-mount installation box included (86x86x38mm)
- Part of the WPa series designed with Italdesign Giugiaro
Technical specifications
- Type: Remote wall panel control for one volume and source or preset selection with stereo minijack connector
- Format: Single-gang EU format
- Installation options: Surface, in-wall
- Operating temperature: Min -10°C/14°F, Max 40°C/104°F
- Operating humidity: <85% HR
- Storage temperature: Min -10°C/14°F, Max 40°C/104°F
- Storage humidity: <90% HR
- Included accessories: Surface-mount box
- Finished colour: White (RAL 9016)
- Dimensions: 86 x 86 x 38 mm (with surface-mount box)
- Weight: 0.13 kg
- Pieces per box: 1 unit
- Shipping dimensions: 120 x 210 x 80 mm
- Shipping weight: 0.26 kg
