WPaCNX-CBO
Wall-mounted connection plate with a female 3-pin XLR connector plus a stereo jack (combo connector), screw-type at the rear (no soldering needed).
Main features
- XLR female 3-pin + stereo jack combo connector
- Screw-type connector at back, no soldering required

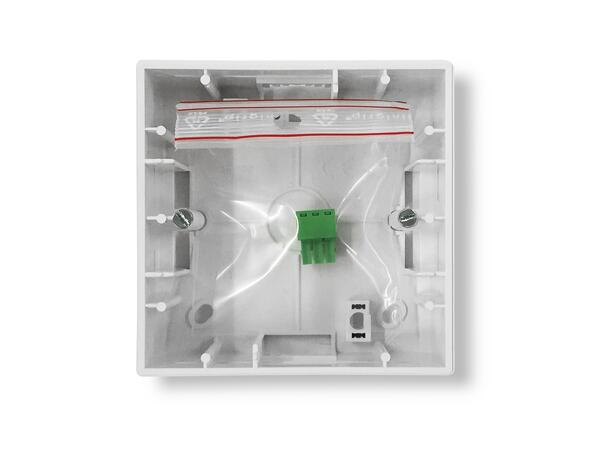

- Surface-mount installation box included (86x86x38mm)
- Part of the WPa series designed with Italdesign Giugiaro
Technical specifications
- Type: Wall-mounted remote control with XLR female 3-pin + stereo jack (combo connector)
- Format: Single-gang EU format - TBC
- Installation options: Surface, in-wall
- Operating temperature: Min -10°C/14°F, Max 40°C/104°F
- Operating humidity: <85% HR
- Storage temperature: Min -10°C/14°F, Max 40°C/104°F
- Storage humidity: <90% HR
- Included accessories: Surface-mount box
- Finished colour: White (RAL 9016)
- Dimensions: 86 x 86 x 38 mm (with surface-mount box)
- Weight: 0.13 kg
- Pieces per box: Unit
- Shipping dimensions: 120 x 210 x 80 mm
- Shipping weight: 0.26 kg
