WPaH-AT40
70/100V line attenuator with integrated 24VDC priority relay, 40W maximum output power.
Main features
- 70/100V line attenuator
- Integrated 24VDC priority relay
- 40W maximum output power

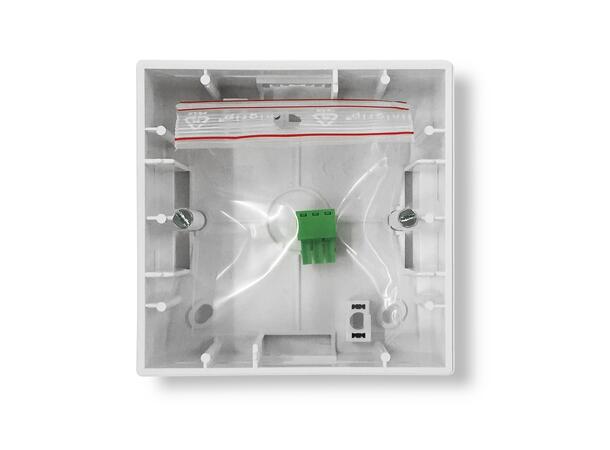

- Surface-mount installation box included (86x86x50mm)
- Part of the WPa series designed with Italdesign Giugiaro
Technical specifications
- Type: 40W 70/100V line attenuator with an integrated 24VDC priority relay
- Format: Single-gang EU format - TBC
- Installation options: Surface, in-wall
- Operating temperature: Min -10°C/14°F, Max 40°C/104°F
- Operating humidity: <85% HR
- Storage temperature: Min -10°C/14°F, Max 40°C/104°F
- Storage humidity: <90% HR
- Included accessories: Surface-mount box
- Finished colour: White (RAL 9016)
- Dimensions: 86 x 86 x 50 mm (with surface-mount box)
- Weight: 0.5 kg
- Pieces per box: 1 unit
- Shipping dimensions: 110 x 70 x 200 mm
- Shipping weight: 0.6 kg
