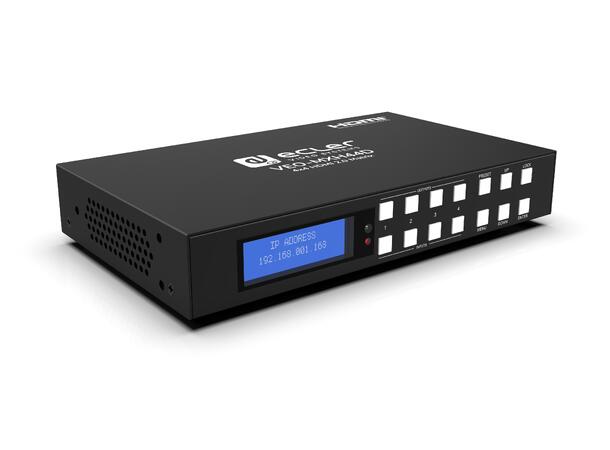

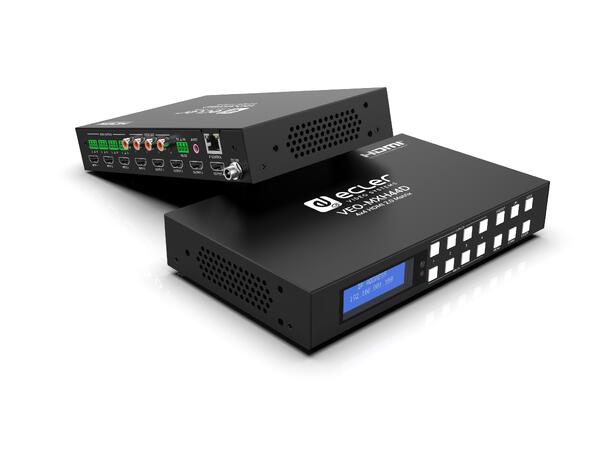

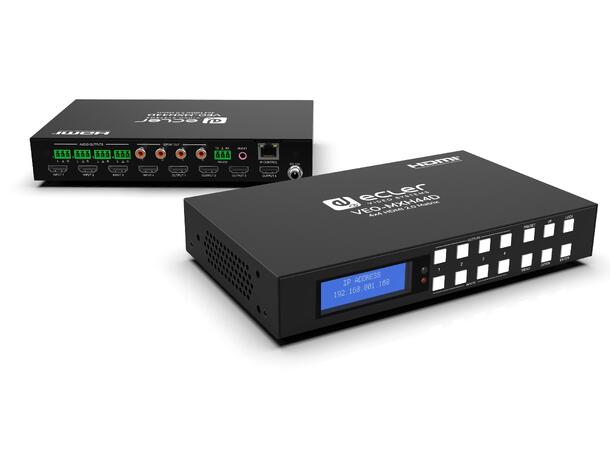

VEO-MXH44D
VEO-MXH44D is a 4x4 HDMI matrix supporting up to 4K/UHD@60Hz 4:4:4, with 8 analogue/digital audio de-embedding outputs, EDID management, LCD display and web GUI.
Main features
- 4 HDMI inputs routed independently to 4 HDMI outputs
- Supports 4K@60Hz YUV 4:4:4 8-bit, HDR at 4K@60Hz 4:2:0 10-bit
- Full HD downscaling support
- 8 preset storage
- Supports Dolby TrueHD/Atmos, DTS-HD MA, DTS:X
- Analogue and digital audio extraction

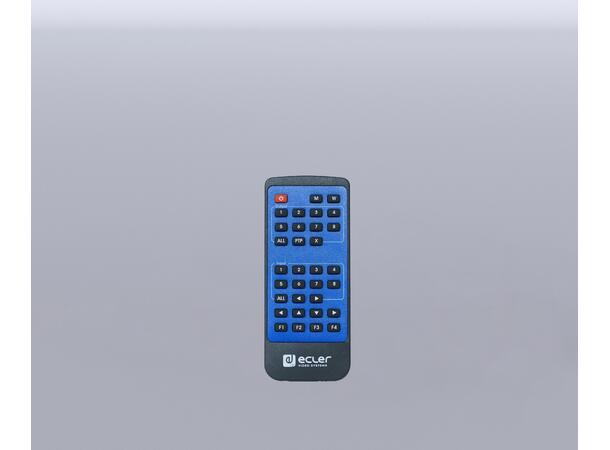

- Control via front panel/display, IR, RS-232, IP, WebGUI
- Advanced EDID management
- HDCP 2.2 compliant
- Local 12V DC power supply
Technical specifications
- Video Input/Output Connectors: 4xHDMI Type A Female, 18Gbps (each)
- Video Resolutions: 480p to 4K@60Hz YUV4:4:4/4:2:0
- HDCP: 2.2
- HDR: HDR10, Dolby Vision, HLG

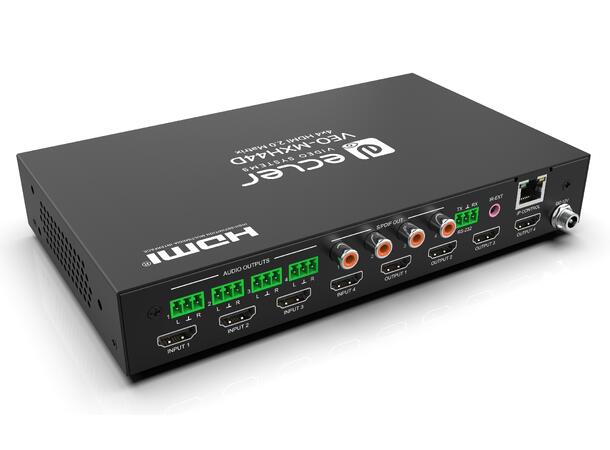

- Audio Output: 4x3-pin Euroblock, 4xCoaxial Digital Out
- Audio Formats: PCM2.0/5.1/7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS-X
- Sample Rate: up to 192KHz
- Control: Euroblock, RJ-45, IR, Web/Telnet/RS-232
- Network: 1xRJ-45
- Power supply: External 12VDC-2A
- Power consumption: 14W
- Dimensions: 217.4x35x128.7mm
- Weight: 0.47 Kg
- Chassis material: Metal
- Finished colour: Black
