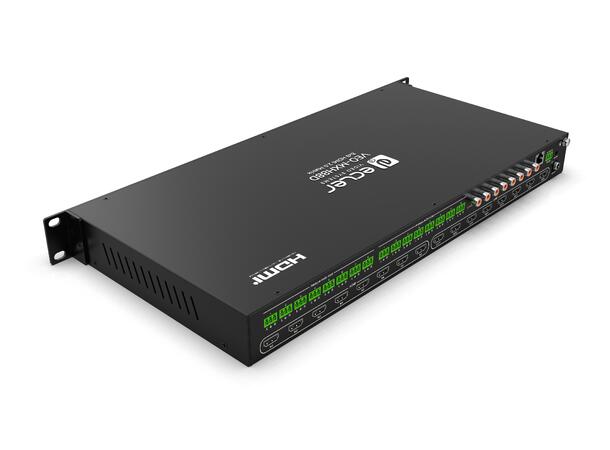

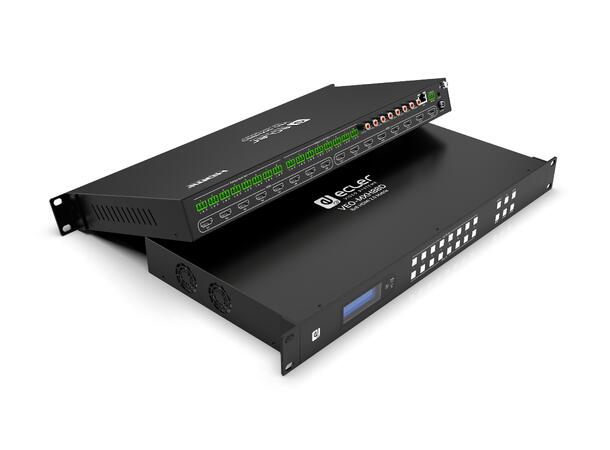

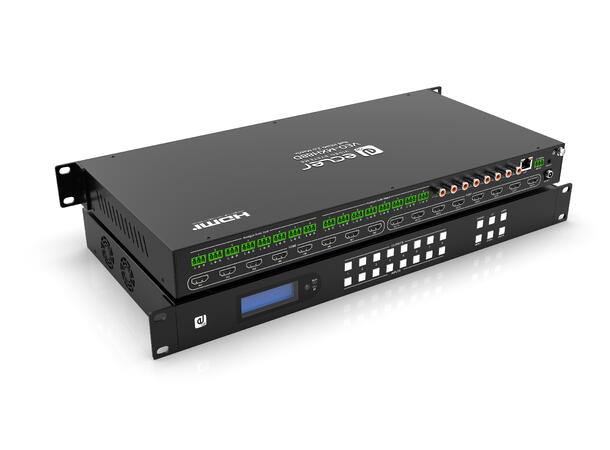

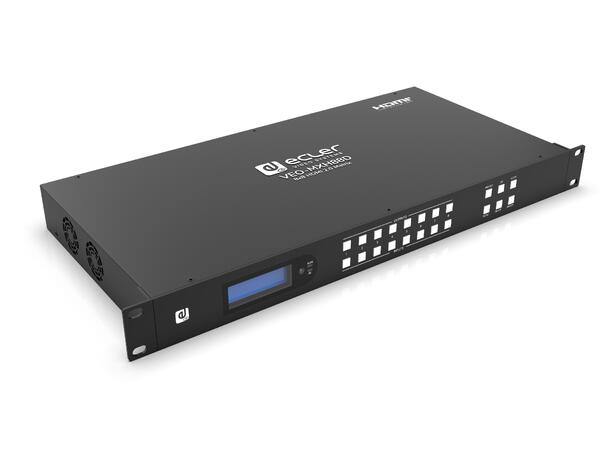

VEO-MXH88D
VEO-MXH88D is an 8x8 HDMI matrix supporting up to 4K/UHD@60Hz 4:4:4, with 8 analogue audio inputs, 16 analogue/digital audio de-embedding outputs, EDID management, LCD display and web GUI.
Main features
- 8 HDMI inputs and 8 HDMI outputs
- Supports 4K@60Hz 4:4:4, HDR at 4K@60Hz 4:2:0 10-bit
- Stores up to 8 presets
- Supports Dolby TrueHD/Atmos, DTS-HD MA, DTS:X
- Analog audio insertion/extraction and digital audio extraction

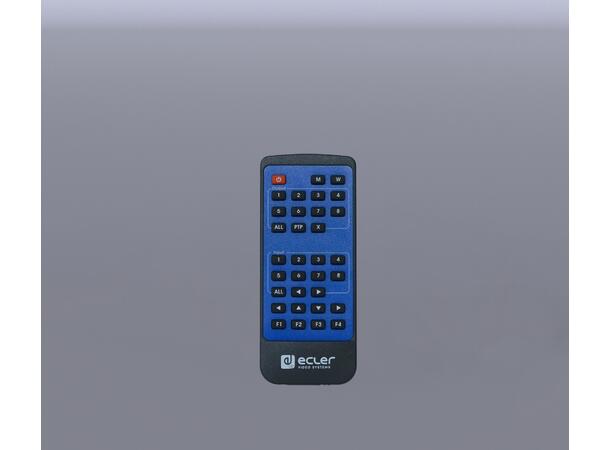

- Control via front panel, IR remote, RS-232, IP, WebGUI
- Advanced EDID management, CEC, ARC
- HDCP 2.2 compliant
- 12V DC power supply
Technical specifications
- Video Input/Output Connectors: 8xHDMI Type A Female, 18Gbps (each)
- Video Resolutions: 480p to 4K@60Hz YUV4:4:4/4:2:0
- HDCP: 2.2
- HDR: HDR10, Dolby Vision, HLG
- Audio Input: 8x3-pin Euroblock
- Audio Output: 8x3-pin Euroblock, 8xCoaxial Digital Out
- Audio Formats: PCM2.0/5.1/7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS-X
- Sample Rate: up to 192KHz
- ARC: Yes
- Control: Euroblock, RJ-45, IR, Web/Telnet/RS-232
- Network: 1xRJ-45
- Power supply: External 12VDC-3A
- Power consumption: 28W
- Dimensions: 482.3x44x217.5mm
- Weight: 2.8 Kg
- Chassis material: Metal
- Finished colour: Black
