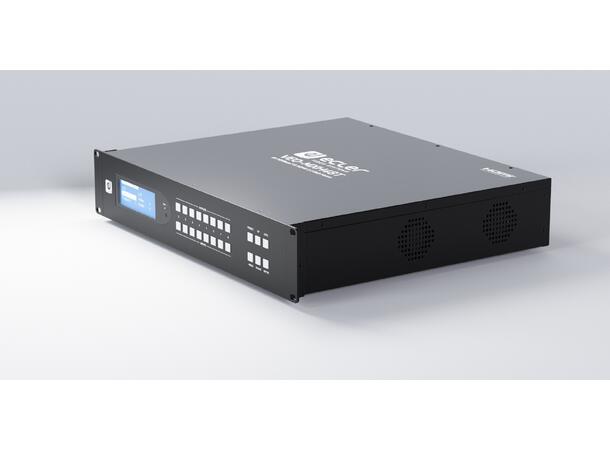

VEO-MXH48T
VEO-MXH48T is an 8x8 HDBaseT and HDMI matrix supporting up to 4K/UHD@60Hz 4:4:4, distributing video/audio over Cat cable up to 40m, with EDID management, LCD display and web GUI.
Main features
- 8 HDMI inputs routed to 8 HDBaseT outputs and 8 HDMI mirror outputs
- HDBaseT distribution of video/audio over single CAT cable
- Supports HDMI up to 4K@60Hz 4:4:4 8-bit, HDR at 4K@60Hz 4:2:0 10-bit
- Extends 4K@60Hz up to 40m, Full HD up to 70m
- Independent video downscaling
- Independent audio matrix
- Supports Dolby TrueHD/Atmos, DTS-HD MA, DTS:X
- Analogue/digital audio insertion and extraction

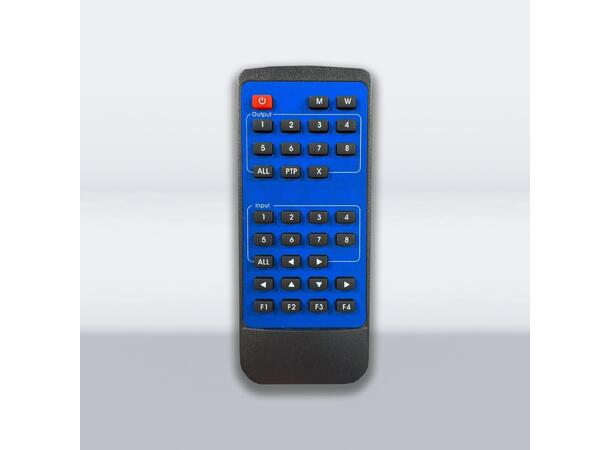

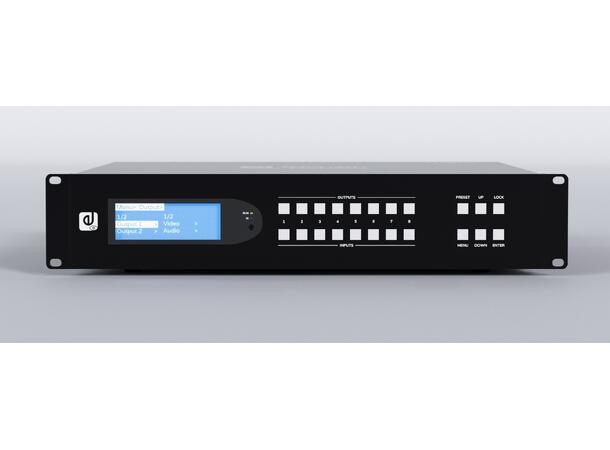

- Control via front panel/display, IR, RS-232, IP, WebGUI
- Advanced EDID management, CEC, ARC
- HDCP 2.2 compliant
- Compatible with VEO-XRT44 HDBaseT receiver
Technical specifications
- Video Input/Output Connectors: HDMI Type A Female, 18Gbps
- Video Resolutions: 3840x2160/60 YUV444
- Chroma Subsampling: 4:4:4/4:2:2
- Colour Depth: 8-12bit
- HDCP: 1.4/2.2
- HDR: HDR10
- Video Composing: 8 HDMI in, 8 HDBaseT out, 8 HDMI mirror out
- HDMI Distance: up to 40m (4K) / 70m (Full HD) via HDBaseT
- Audio Formats: PCM2.0, Dolby Atmos, DTS-X
- Sample Rate: 192KHz
- Audio De-Embedding/Embedding: Yes

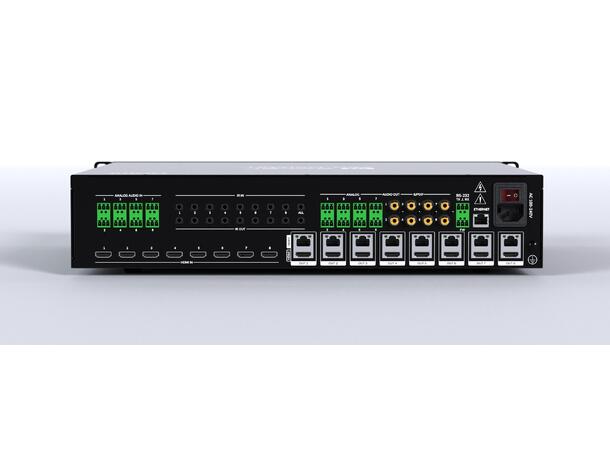

- Control: RJ-45, Euroblock, Web/Telnet/RS-232/IR
- Power supply: PoC, Input 90-264VAC, Output 100-240VAC
- Power consumption: up to 216W (built-in 2x AC-DC 24Vx2.4A modules)
- Dimensions: 482.6x88x394mm (2U)
- Weight: 8.3 Kg
- Chassis material: Metal
- Finished colour: Black
