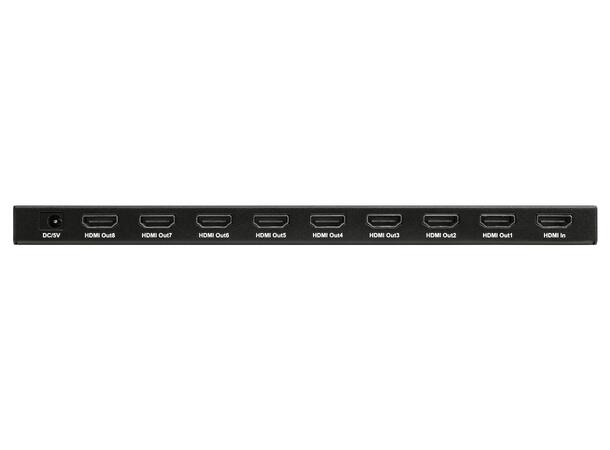

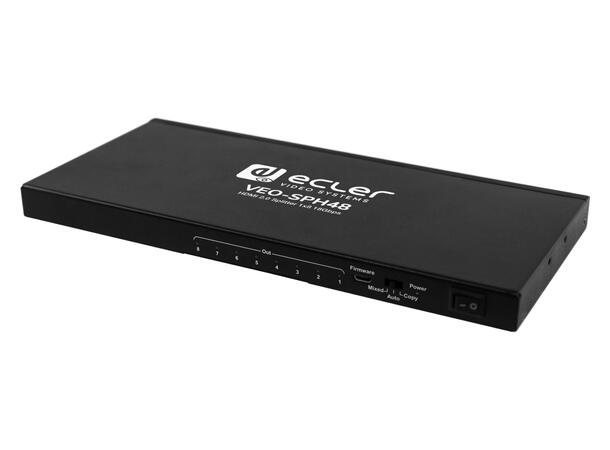

VEO-SPH48

VEO-SPH48 is a 1x8 HDMI splitter for HDR formats, simultaneously displaying an Ultra HD source on up to eight Ultra HD displays.

• Supports up to Ultra HD 4Kx2K(4096x2160@60Hz YUV 4:4:4)
• Three EDID setting modes
• HDCP2.2/1.4 compliant
• 36-bit Deep Color
• Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, DTS-HD MA
• Supports HDR and 3D content
• Up to 18Gbps video data rate

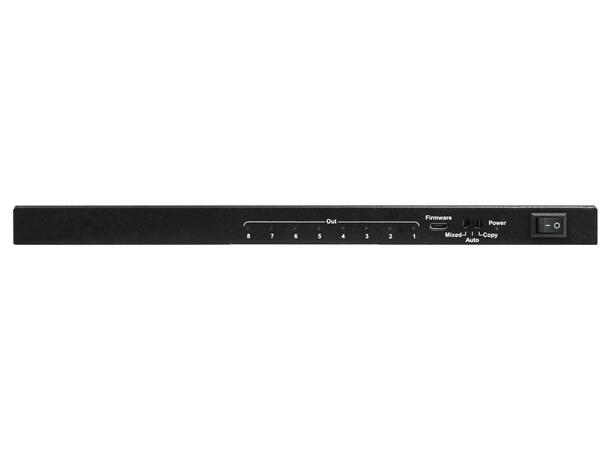

• Front panel LED indicators

• Video Input Connectors: 1xHDMI Type A Female, 18Gbps
• Video Output Connectors: 8xHDMI Type A Female, 18Gbps
• Video Resolutions: up to 4096x2160@60Hz
• Chroma Subsampling: 4:4:4/4:2:2/4:2:0
• Colour Depth: 8/10/12-bit
• HDCP: 2.2/1.4
• HDR: HDR10
• Audio Formats: PCM 2Ch, LPCM 5.1/7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD MA
• EDID Management: Switch
• Power supply: AC100-240V, out DC5V-1A
• Power consumption: 5W max
• Dimensions: 248x17x110mm
• Weight: 0.610 kg
• Chassis material: Metal
• Finished colour: Black
