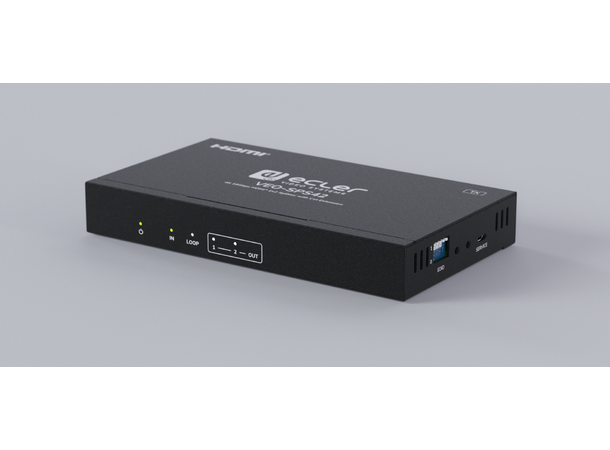

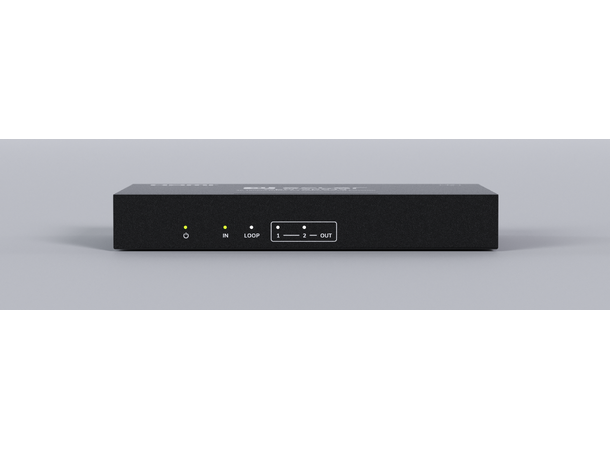

VEO-SPS42

VEO-SPS42 is an 18Gbps HDMI 1x2 splitter with Cat cable extension, distributing an HDMI source to two remote displays up to 4K/60Hz over Cat 5e or higher.

• Signal distribution/extension over single Cat 5e+ cable
• Supports HDMI 18Gbps 4K 60Hz 4:4:4
• Distance up to 35m (4K/60Hz), 50m (4K/30Hz), 70m (1080p/60Hz)
• Stereo unbalanced audio extraction via Euroblock

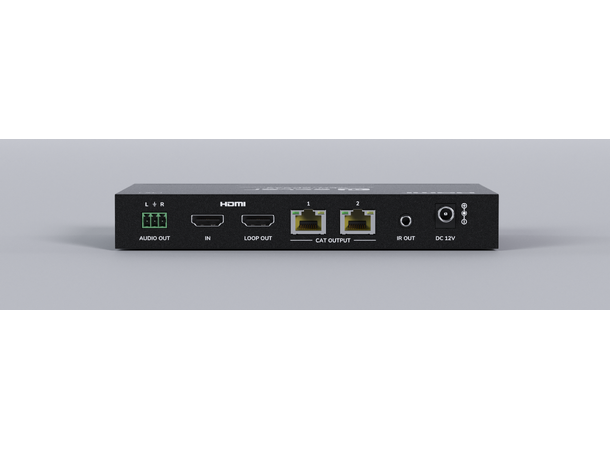

• Includes HDMI Loop Out and two RJ-45 extension outputs
• Supports HDR10, HDR10+, Dolby Vision, HLG
• EDID management
• HDCP 2.2 compliant
• IR control extension
• RS-232 remote control
• PoC for included receivers

• Video Input Connectors: 1xHDMI Type A Female, 2.0, 18Gbps
• Video Output Connectors: 1xHDMI Type A Female (loop), 2xRJ-45
• Video Resolutions: 480i to 4K@60Hz
• Chroma Subsampling: 4:4:4/4:2:2/4:2:0
• Colour Depth: 8-bit (4K60 4:4:4), 10/12-bit (4:2:2-4:2:0)
• HDCP: 2.2/1.4
• HDR: HLG, HDR10, HDR10+, Dolby Vision
• Audio Output: 1x3-pin unbalanced Euroblock
• Audio Formats: LPCM 2.0-7.1, Dolby Digital/TrueHD/Digital Plus, DTS-ES/HD Master/HD-HRA/X

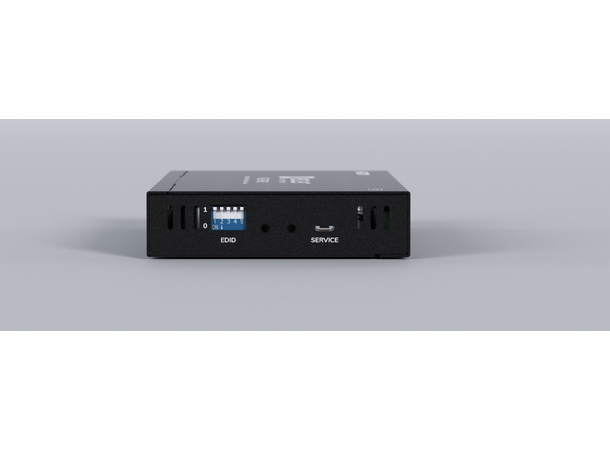

• Control: Micro-USB Type B, DIP switch, RS-232
• Transmission Distance: 35m (4K/60Hz), 50m (4K/30Hz), 70m (1080p/60Hz) over Cat 5e+
• Power supply: External 100-240VAC, out 12VDC-1A
• Power consumption: 8.28W
• Dimensions: TX 175x25x100mm, RX 88x18x61mm
• Weight: TX 0.485 Kg, RX 0.155 Kg
• Chassis material: Metal
• Finished colour: Black

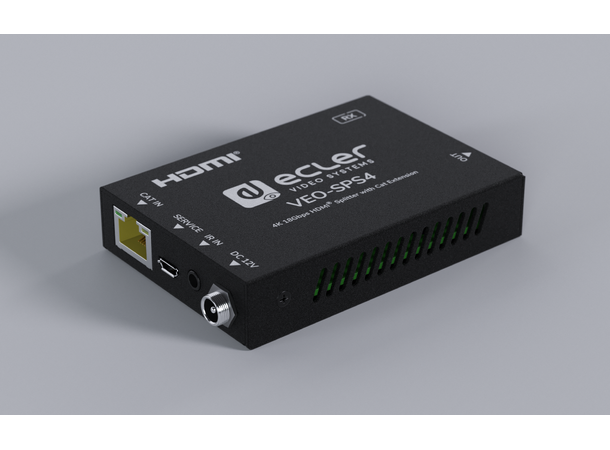

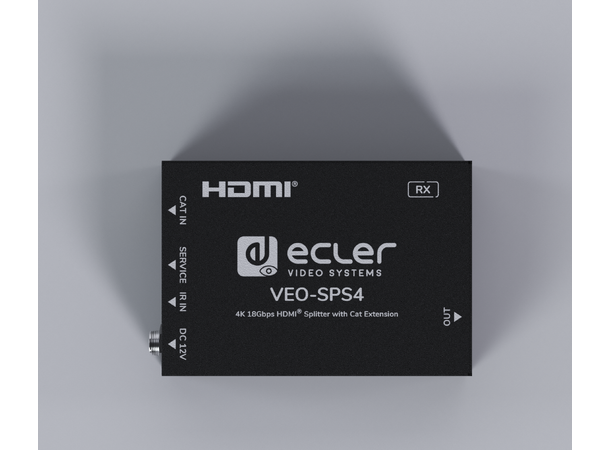

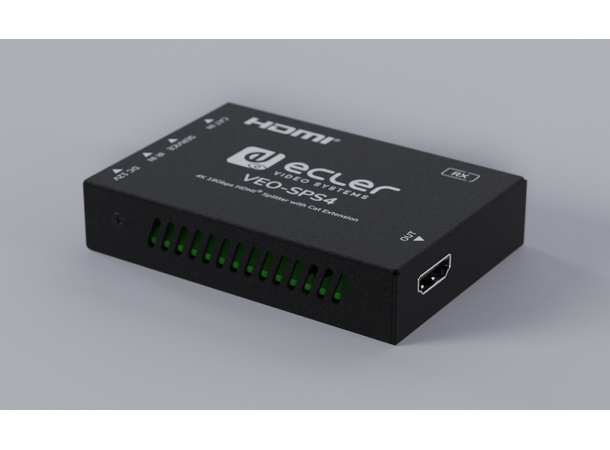

• Included accessories: 2x VEO-SPS4 Receiver, IR receiver/blaster cables, Euroblock connector, mounting ears/screws, PSU 12V/1A
