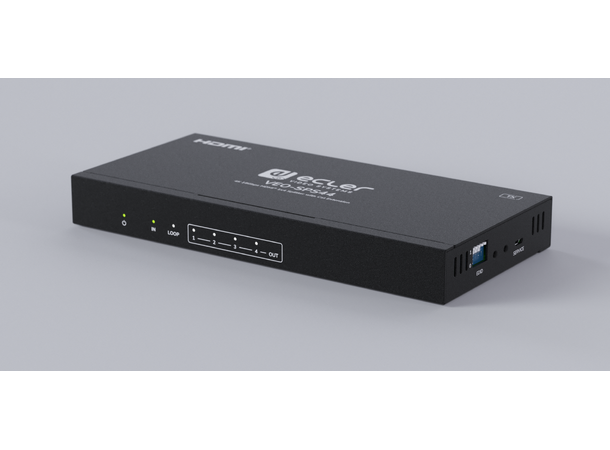

VEO-SPS44

18Gbps HDMI 1x4 splitter that distributes and extends an HDMI source to four remote displays over single Cat 5e+ cables, supporting up to 4K 60Hz 4:4:4.

• Signal distribution and extension over a single Cat 5e or higher cable
• Support for HDMI 18Gbps 4K 60Hz 4:4:4 (HDMI 2.0b)
• Transmission distance 4K/60Hz up to 35m, 4K/30Hz up to 50m, 1080p/60Hz up to 70m
• Stereo unbalanced audio extraction via Euroblock
• Includes HDMI Loop Out and 4 RJ-45 extension outputs
• Support for HDR10, HDR10+, Dolby Vision, HLG
• Support for LPCM 2.0, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD MA, DSD
• EDID Management
• HDCP 2.2 compliant
• IR control extension
• RS-232 remote control
• PoC for included receivers

• Video Input Connectors: 1 x HDMI Type A Female, 2.0, 18Gbps

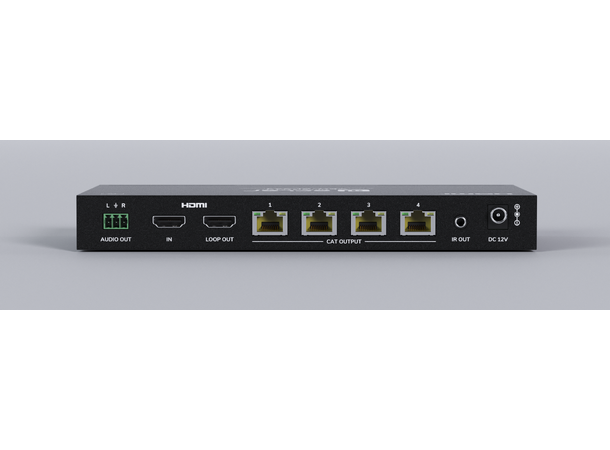

• Video Output Connectors: 1 x HDMI Type A Female 2.0 18Gbps; 4 x RJ-45 Female
• Video Input Resolutions: 480i-1080p 60Hz, 4K up to 60Hz
• Video Output Resolutions: 480i-1080p 60Hz, 4K up to 60Hz
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Colour Depth: 8-bit (4K60 4:4:4), 10/12-bit (4K60 4:2:2-4:2:0)
• Colour Space: RGB, YCbCr, YUV
• HDCP: 2.2/1.4
• HDR: HLG, HDR10, HDR10+, Dolby Vision
• Scaling Features: No
• HDMI Distance: 5m (4K/60Hz) or 10m (up to 1080p/60Hz, 4K/30Hz) with IN/OUT HDMI cable
• Audio Output Connectors: 1 x 3-pin unbalanced Euroblock
• Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
• Sample Rate: 48/96/192KHz
• Bit Depth: Up to 24-bit
• Frequency Response: 20Hz-20KHz (±3dB)

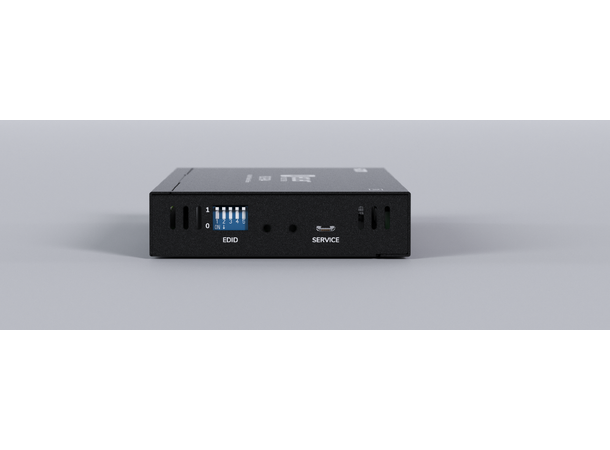

• Control Connectors: 1 x Micro USB Type B, 1 x DIP Switch
• Control Protocols: RS-232
• EDID Management: EDID Copy, Internal EDID Options

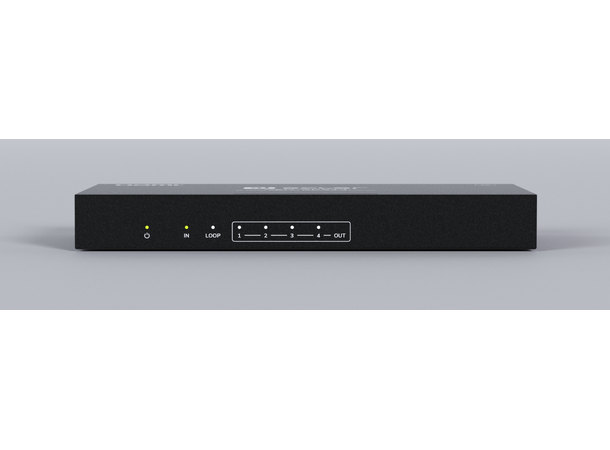

• Status Indicators: Power LED, Link Status LED
• Pass-through Connectors: 1 x IR Jack 3.5mm
• Pass-through Protocols: IR
• HDMI extension: Point-to-Point, zero latency
• Transmission Distance: 4K/60Hz up to 35m, 4K/30Hz up to 50m, 1080p/60Hz up to 70m (Cat5e+)
• Power supply: External 100-240VAC 0.3A / Output 12VDC-1A
• AC mains connector: External PSU, 4 region blades
• DC mains connector: DC Locking
• Power consumption: 14W
• Operating temperature: 0-40°C
• Operating humidity: 20-90% HR
• Storage temperature: -20 to 60°C

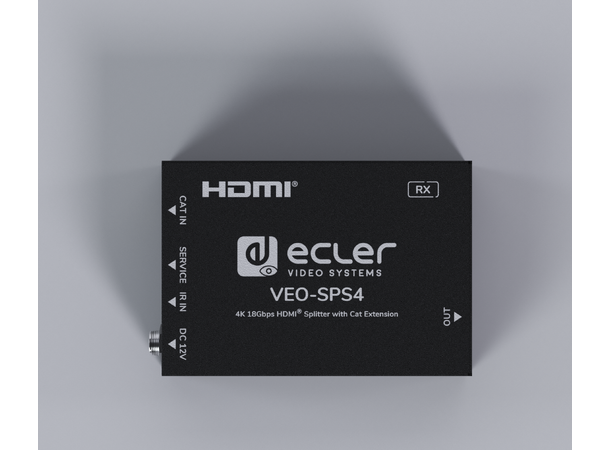

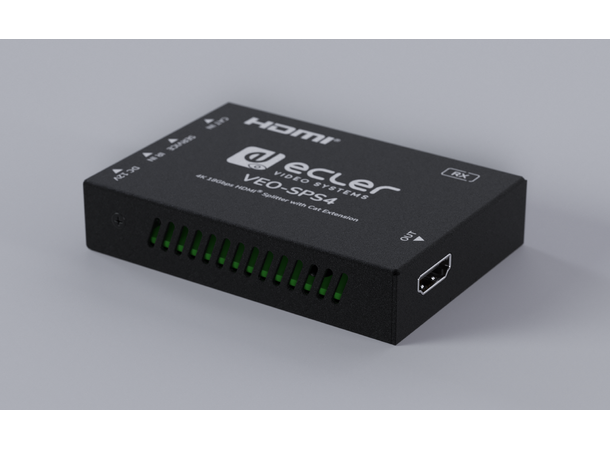

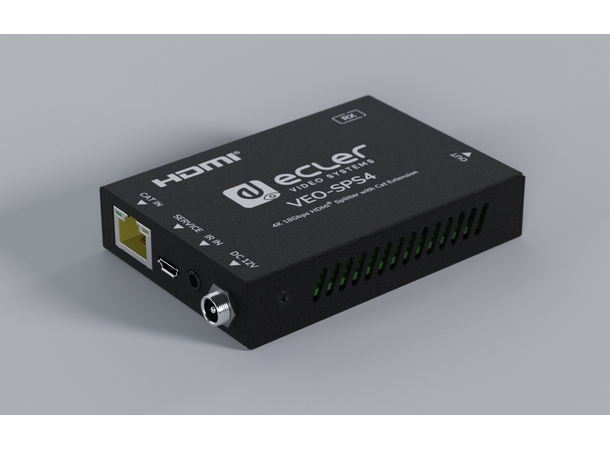

• Included accessories: 4x VEO-SPS4 Receiver, IR cables, Euroblock connector, mounting ears/screws, PSU 12V/2.5A
• Dimensions: Splitter 210x25x100mm; Receiver 88x18x61mm
• Weight: Splitter 0.617kg; Receiver 0.155kg
• Shipping dimensions: 320x91x305mm
• Shipping weight: 1.906kg
• Chassis material: Metal
• Finished colour: Black
