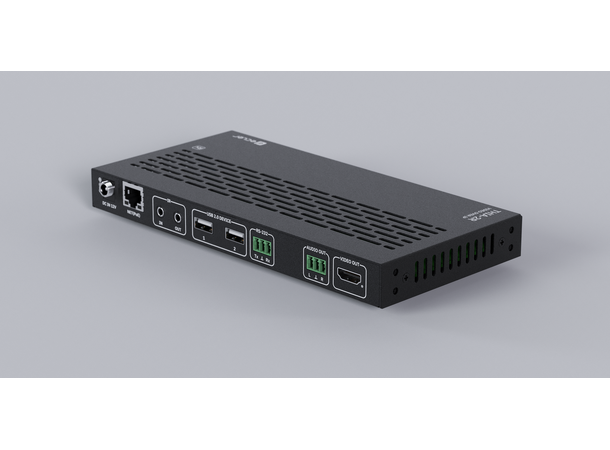

THIA-2R

4K 30Hz Video-over-IP receiver using JPEG2000 compression for secure, low-latency HDMI distribution over professional AV networks.

• Video over IP Unicast/Multicast over 1Gb managed networks
• JPEG2000 codec, 1-2 frame latency
• HDMI 18Gbps 4K 30Hz 4:4:4 output
• Transmission up to 100m over Cat6+
• Main/Sub stream preview
• Video wall up to 9x9 (via VEO-XCTRL4D with THIA-2C firmware)
• HDR10, HDR10+
• Wide audio format support incl. Dolby Atmos, DTS:X
• Advanced EDID management (via VEO-XCTRL4D)
• HDCP 2.2 compliant
• Stereo analogue insert/extract via Euroblock
• USB2.0/KVM, CEC, RS-232, IR pass-through
• PoE

• Video Input Connectors: No
• Video Output Connectors: 1 x HDMI Type A Female 2.0b, 18Gbps
• Video Input Resolutions: 480i-1080p, 4K up to 60Hz
• Video Output Resolutions: 4K up to 30Hz (4:4:4)
• Video Codec: Main Stream JPEG2000, Secondary Stream H.265
• Transmission Latency: 1-2 Frames
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Colour Depth: 8-bit (4K30 4:4:4), 10/12-bit (4:2:2-4:2:0)
• Colour Space: RGB, YCbCr, YUV
• HDCP: 2.2
• HDR: HDR10, HDR10+
• Video Composing: Videowall up to 9x9
• Scaling Features: Yes
• HDMI Distance: 5m (4K/60Hz), 10m (4K/30Hz), 15m (1080p/60Hz)
• Audio Input Connectors: No
• Audio Output Connectors: 1x3-pin unbalanced Euroblock
• Audio Formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X
• Sample Rate: 48/96/192KHz
• Bit Depth: up to 24-bit
• ARC/eARC: No
• Control Connectors: 1xRJ45, 1x3-pin Euroblock, 2xJack3.5mm
• Control Protocols: Web, Telnet, RS-232 (in development), IR
• Control Buttons: No
• EDID Management: EDID Settings

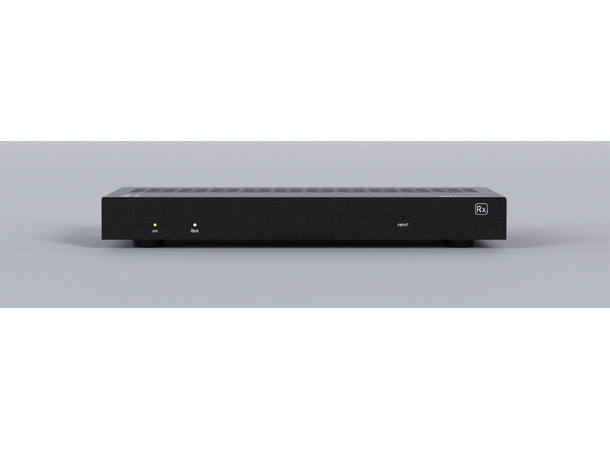

• Status Indicators: Power LED, Link LED

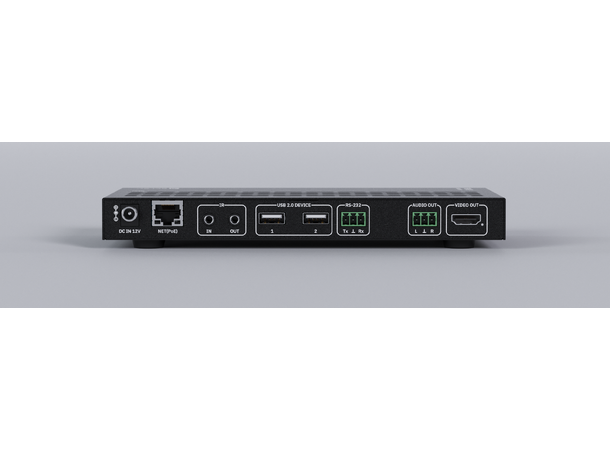

• Pass-through Connectors: 2xUSB TypeA, 1x3-pin Euroblock, 2x3.5mm Jack, 1xHDMI
• Pass-through Protocols: USB2.0, RS-232, IR, CEC
• Network Connectors: 1xRJ-45
• Network Requirements: Jumbo Frame, IGMP
• Average Streaming Bitrate: 218Mbps for 4K/30Hz
• Transmission Distance: 100m via Ethernet (Cat6/6A/7)
• Power supply: PoE; External 12VDC-1A
• Power consumption: 4W
• Operating temperature: 0-40°C
• Operating humidity: 20-90% RH
• Installation options: Desktop, THIA-RK
• Included accessories: IR RX/TX cables, Euroblock connectors, mounting ears/screws, 12V/1A PSU
• Optional accessories: VEO-XCTRL4D, THIA-RK
• Dimensions: 204x21.5x100mm
• Weight: 0.496kg
• Shipping dimensions: 255x75.5x160mm
• Shipping weight: 0.96kg
• Chassis material: Metal
• Finished colour: Black
