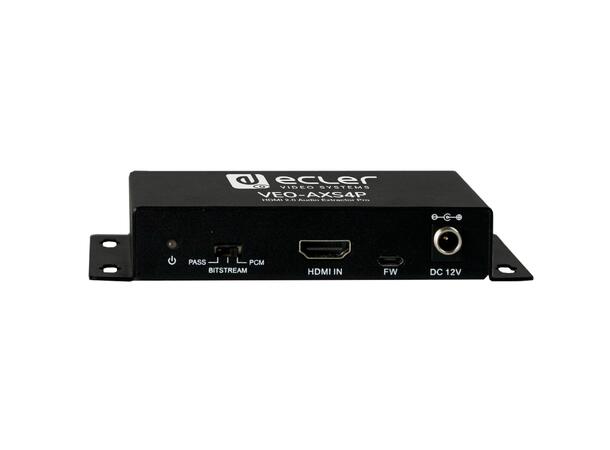

VEO-AXS4P

Professional HDMI audio extractor that de-embeds audio from an HDMI signal (incl. 4K sources), providing LPCM analogue stereo (RCA/Phoenix) and Dolby Digital/DTS via coaxial S/PDIF.

• Audio EDID Settings: Auto/2.0CH/5.1CH
• Extracts digital HDMI audio to 2-channel analog stereo or 5.1 S/PDIF output
• Signal amplification/equalization extending HDMI I/O up to 10m
• Supports LPCM, Dolby Digital and DTS
• Supports resolution up to 4K@60Hz YUV 4:4:4
• Deep colour up to 36-bit
• Sample rate up to 192KHz, 24-bit resolution
• HDCP2.2/1.4 compliant
• Supports CEC

• Video Input Connectors: HDMI Type A Female 2.0, 18Gbps
• Video Output Connectors: HDMI Type A Female 2.0, 18Gbps
• Video Input/Output Resolutions: up to 4K@60Hz
• Chroma Subsampling: 4:4:4
• Colour Depth: 8/10/12-bit
• Colour Space: RGB, YCbCr
• HDCP: 2.2/1.4 Compliant
• HDR: HDR10
• HDMI Distance: up to 10m with Ecler VEO cables

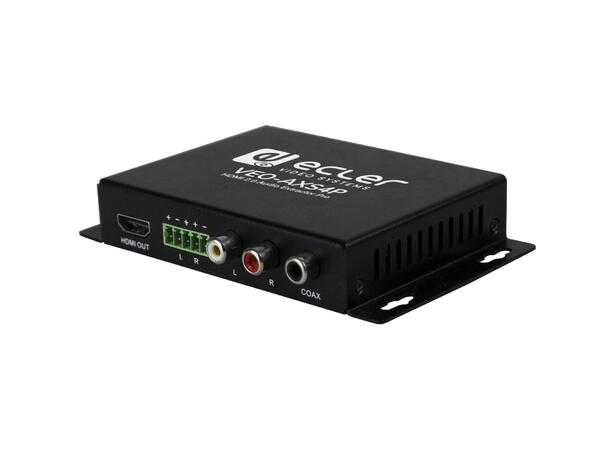

• Audio Output Connectors: Euroblock 5-pin balanced output, RCA unbalanced stereo output, S/PDIF coaxial output
• Audio Formats: LPCM 2.0, LPCM 5.1, Dolby Digital, DTS-HD Master Audio, Dolby True-HD
• Sample Rate: 32/44.1/48/88.2/96/176.4/192KHz
• Bit Depth: Support of 24-bit
• Control Buttons: 1x EDID selector
• EDID Management: Auto/2.0CH/5.1CH
• Status Indicators: Power/HDMI status indicator
• Pass-through Connectors: HDMI
• Pass-through Protocols: CEC
• Power supply: AC100-240V 50/60Hz, Output DC12V-1A
• DC mains connector: DC 12V connector
• Power consumption: 3W Max
• Operating temperature: -10 to 55°C
• Operating humidity: 10-90% non-condensing
• Installation options: Desktop, VEO-RACK19
• Included accessories: International DC 5V Power Supply
• Dimensions: 21.5x77x129mm
• Weight: 0.244kg
• Shipping dimensions: 195x65x145mm
• Shipping weight: 0.6kg
• Chassis material: Metal
• Finished colour: Black
