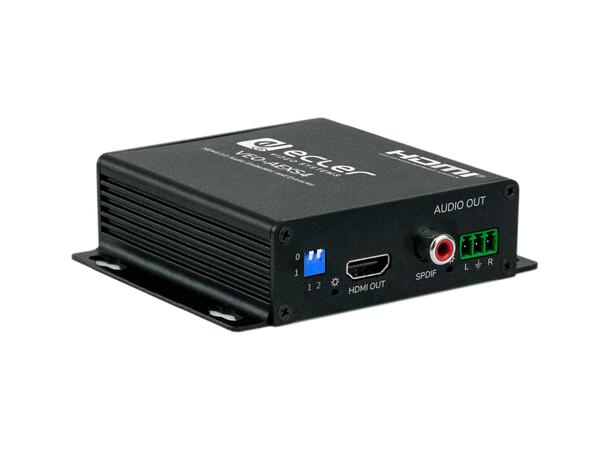

VEO-AEXS4

HDMI audio embedder/de-embedder that extracts or inserts stereo audio into an HDMI signal with support for 4K video, plus S/PDIF digital output.

• Extracts audio stream from HDMI to analog stereo or 5.1 digital audio
• Embeds stereo analogue input into HDMI signal replacing original sound
• HDMI video input up to 4K@60Hz YUV 4:4:4, 18Gbps
• Supports 3D, HDR
• HDCP2.2/1.4 compliant

• Video Input Connectors: HDMI 2.0
• Video Output Connectors: HDMI 2.0
• Video Input/Output Resolutions: 4096x2160@60Hz, UHD@60Hz, 1080p@60Hz
• Chroma Subsampling: 4:4:4, 4:2:2
• Colour Depth: 8/10/12-bit
• Colour Space: RGB, YCbCr
• HDCP: 2.0 compliant
• HDR: HDR10, Dolby Vision
• HDMI Distance: 10m with Ecler VEO Cables

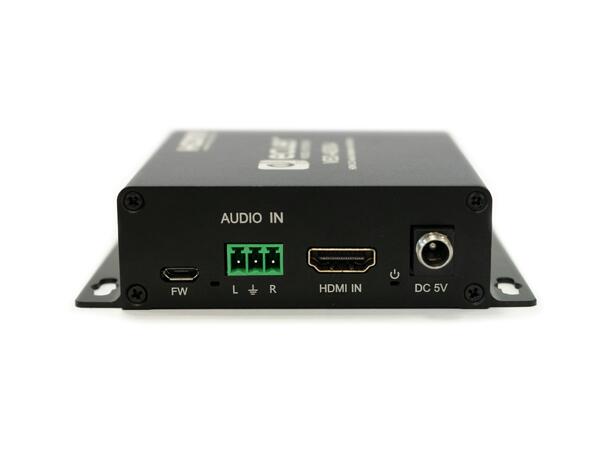

• Audio Input Connectors: 3-pin unbalanced Euroblock

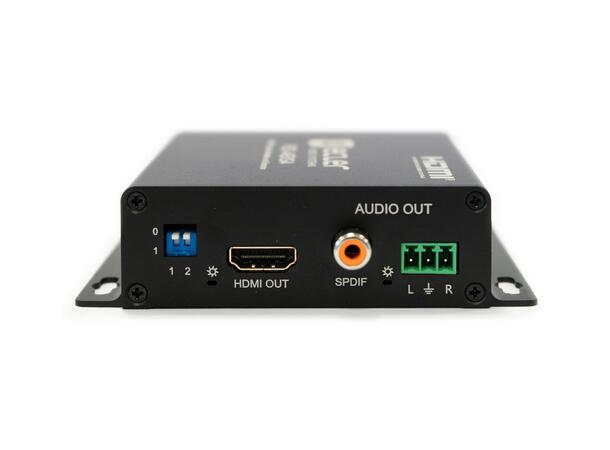

• Audio Output Connectors: 3-pin unbalanced Euroblock, S/PDIF Coaxial
• Audio Formats: Dolby True-HD, DTS-HD Master Audio, PCM
• Sample Rate: up to 192KHz
• Bit Depth: up to 24-bit
• Frequency Response: 20Hz-20KHz ±3dB
• ARC/eARC: No
• Control Buttons: EDID selector (2x dip-switch)
• EDID Management: Passthrough, PCM2.0, 5.1
• Status Indicators: ON LED, HDMI Active LED, Audio Active LED
• Pass-through Connectors: HDMI
• Power supply: AC100-240V 50/60Hz, Output DC5V-1A
• AC mains connector: External PSU, 4 region blades
• DC mains connector: DC Coaxial
• Power consumption: 2W
• Operating temperature: -5 to 40°C
• Operating humidity: 5-90% RH
• Installation options: Desktop, VEO-RACK19
• Included accessories: Power supply, 2x3-pin Euroblock, warranty card
• Optional accessories: VEO-RACK19
• Dimensions: 104.4x89x28.3mm
• Weight: 155g
• Shipping dimensions: 210x60x150mm
• Shipping weight: 0.4kg
• Chassis material: Metal
• Finished colour: Black
