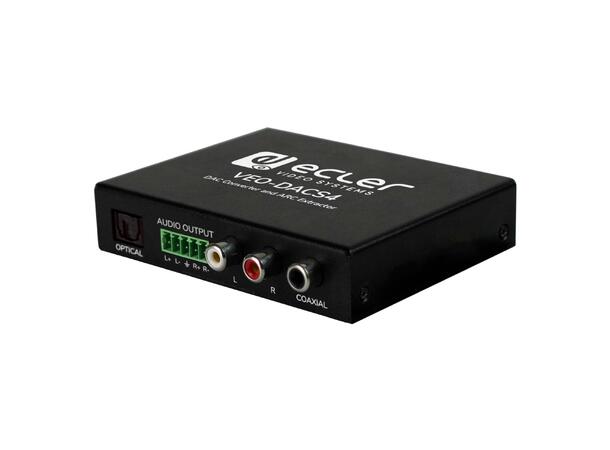

VEO-DACS4
DAC converter and ARC extractor converting HDMI ARC, S/PDIF optical or coaxial digital audio to a stereo analogue signal, with optical/coaxial S/PDIF conversion.
Main features

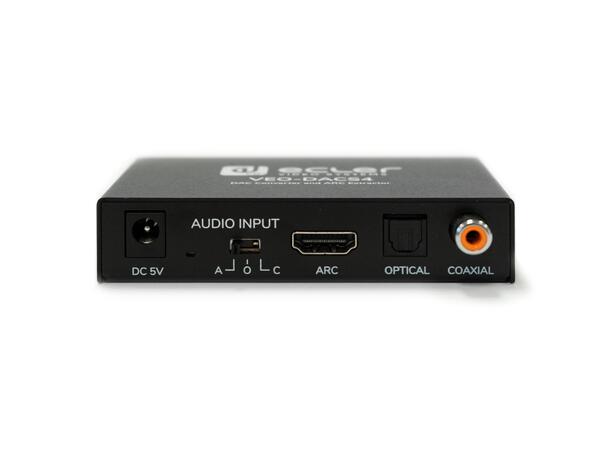

- HDMI ARC, S/PDIF optical and coaxial inputs

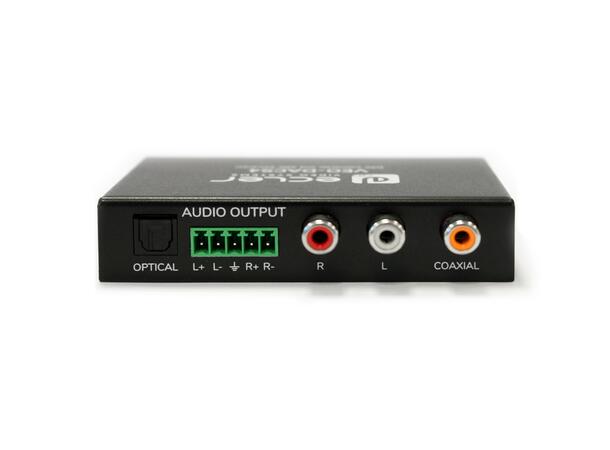

- Stereo analogue balanced output (Euroblock) and unbalanced (RCA)
- Digital S/PDIF output on optical and coaxial connectors
- Frontal switch for input source selection
- Supports DTS, Dolby Digital and PCM up to 5.1 channels
Technical specifications
- Video Input Connectors: HDMI
- HDMI Distance: 10m/33ft with Ecler VEO Cables
- Audio Input Connectors: 1xHDMI (ARC), 1xS/PDIF Toslink, 1xS/PDIF Coaxial
- Audio Output Connectors: 1x5-pin Euroblock (stereo balanced PCM2.0), 1xS/PDIF Toslink, 1xS/PDIF Coaxial
- Audio Formats: Dolby Digital, DTS 5.1, PCM
- Sample Rate: up to 192KHz
- Bit Depth: 16-24-bit
- Frequency Response: 20Hz-20KHz ±3dB
- ARC/eARC: ARC extractor
- Control Buttons: 3-position switch for input source selection
- Status Indicators: 1x red Power LED
- Power supply: External 100-240VAC, Output 5VDC-1A
- AC mains connector: External PSU, 4 region blades
- DC mains connector: DC coaxial
- Power consumption: 3W
- Operating temperature: 0-40°C
- Operating humidity: 5-90% RH
- Installation options: Desktop, VEO-RACK19
- Included accessories: Power supply, Euroblock 5-pin connectors, warranty card
- Optional accessories: VEO-RACK19
- Dimensions: 96.2x57.5x21mm
- Weight: 0.14kg
- Shipping dimensions: 210x60x150mm
- Shipping weight: 0.4kg
- Chassis material: Metal
- Finished colour: Black
