ELUMEN8 Moulded Y Split -3PH to 3 x1PH 1 x 3ph Male to 3 x 1ph Female

ELUMEN8 Moulded Y Split -3PH to 3 x1PH

1 x 3ph Male to 3 x 1ph Female

Varenr: 168117
Alt. varenr: CABL483
2 532,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Ikke på lager i Oslo. Ta kontakt for leveringstid.

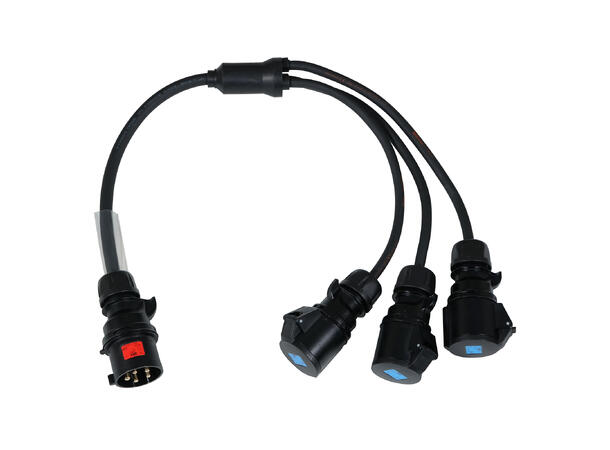

32A 415V three phase Y-splitter featuring an injection moulded joint, manufactured with H07RN-F cable and fitted with a 32A 5-Pin 3 Phase PCE plug and three 32A 2P+E 1 Phase 240V sockets. The splitter can be used to separate out single phase supplies from a three phase upstream source. The cable is also fitted with a short length of clear heatshrink ready to accept an identification or asset label. NOTE: This product must be used with adequate protection both upstream and on each of the three outputs.



- Manufactured in the UK
- H07RN-F 6.0mm² tough rubber sheathed cable
- 3P+N+E 32A 415V male to 3 x 32A 2P+E 240V female connectors
- Clear heatshrink suitable for identification or asset label
- Length (overall): 1m
