ENTTEC S-PLAY Mini Smart Player

DMX/Art-Net recorder, DIN, Ethernet PoE

Varenr: 172123
Alt. varenr: 70093
6 023,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
3 på lager i Oslo
BeskrivelseAlternativerLenker & dokumenter
Beskrivelse

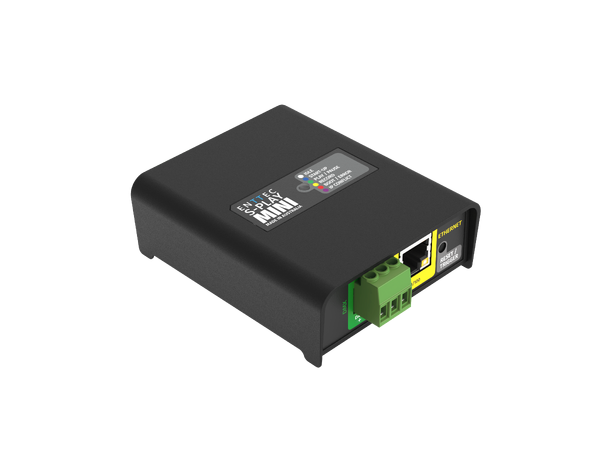

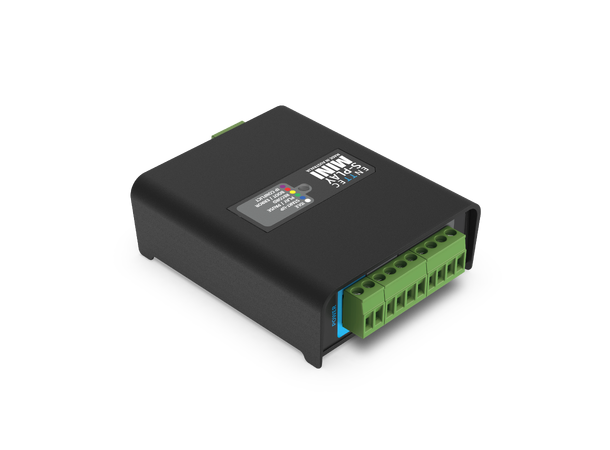

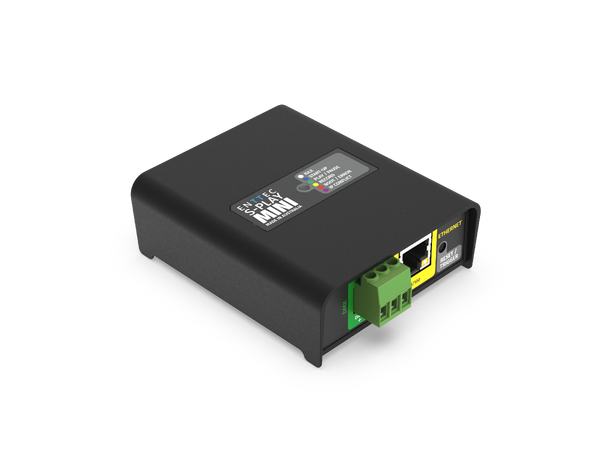

DIN-rail-mountable DMX recorder + smart light show controller.

ENTTEC’s S-PLAY MINI is a robust and compact show recorder and playback controller that streamlines your light show by seamlessly integrating external hardware, enabling you to achieve professional lighting control with ease.

S-PLAY MINI generates a maximum of 16 light Static/Dynamic/Effect Cues by recording two Universes of Art-Net/sACN sources or one complete Universe via DMX port live recording. Alternatively, you have the option to use the onboard pixel effects generator – an easy-to-use tool for creating gradient Effect Cues in just a matter of minutes.

The S-PLAY MINI gives you the ability to fully integrate external devices into your installation – and not just light fixtures. Receive triggers from buttons, switches or sensors to automate 3rd party devices or machinery using contact closures, Art-Net, sACN, DMX, UDP or OSC.

Using the S-PLAY MINI’s handy web browser interface, simply drag and drop within the timeline to design up to eight playlists using created Cues, Events and Triggers as building blocks. Control the priority, fade times, number of play counts, and master intensities to tweak your playlists.

Play back your program on power up with preset loop times, or choose to trigger the playlists with a custom interface or external triggers in a different fashion to play back up to eight playlists simultaneously overlapping and blending with each other, with different groups and priorities.

  • Create, record, edit and play back shows
  • Record up to 2 Universes of sACN or Art-Net
  • Ideal for signage projects
  • User-friendly web interface
  • Trigger external events using a wide range of devices
  • Portable or DIN-rail-mountable

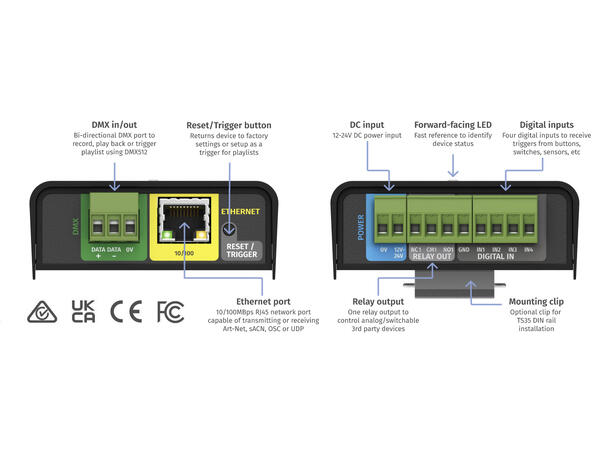

    Hardware

    Input voltage 12V DC to 24V DC
    Power input 2-pin Phoenix screw terminal
    Max power draw 3W

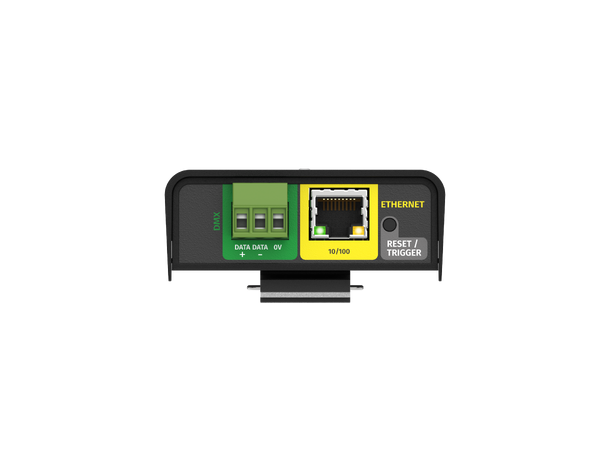

    Ethernet port RJ45

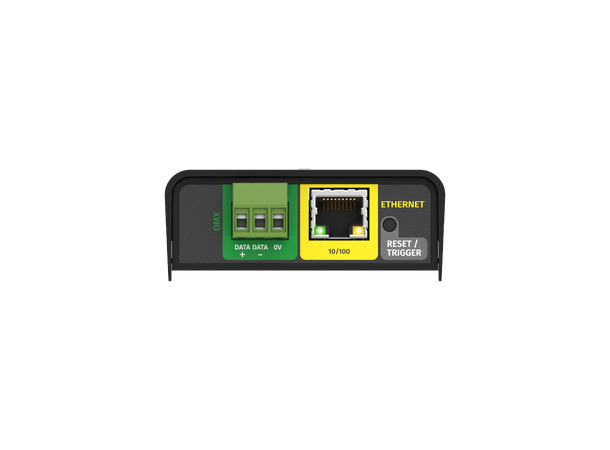

    DMX port Bi-directional 1 x 3-pin Phoenix screw terminal

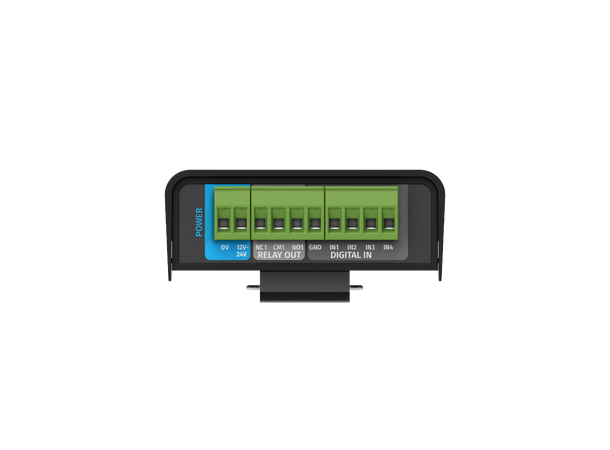

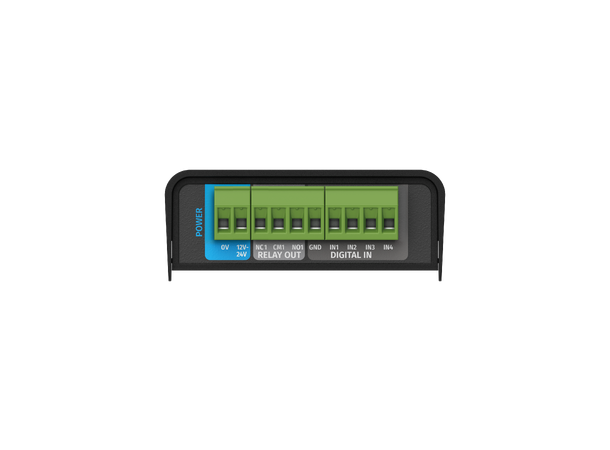

    Digital input 4 digital inputs + 1 GND (5-pin Phoenix screw terminal)
    Relay 1 x relay (3-pin screw terminal)
    Internal show storage capacity 1GB

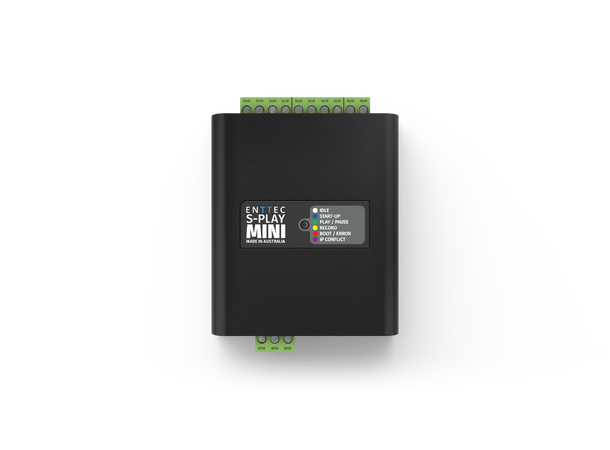

    LED indicators Forward-facing LED indicator + network link/activity (integrated into RJ45 port)
    Factory reset Web interface / reset button

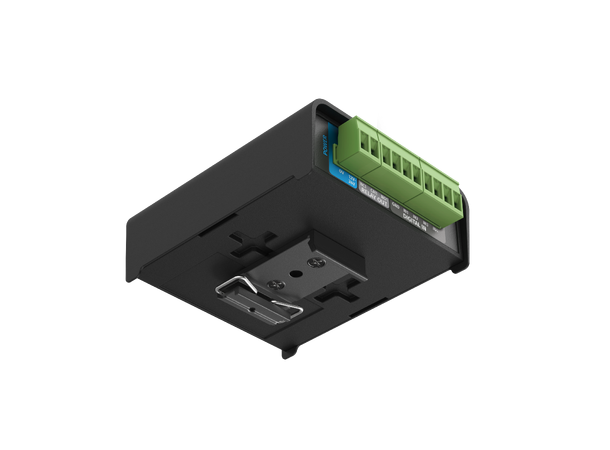

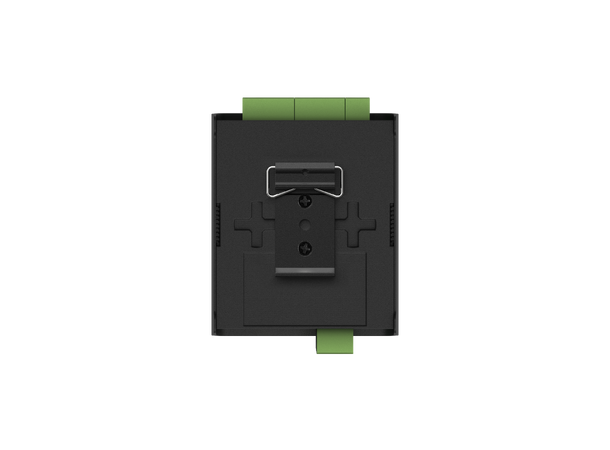

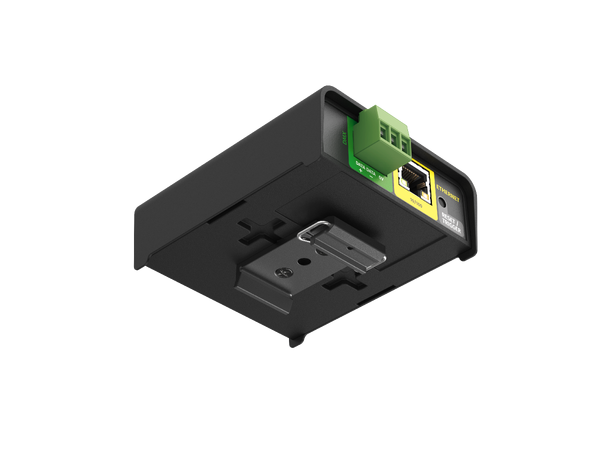

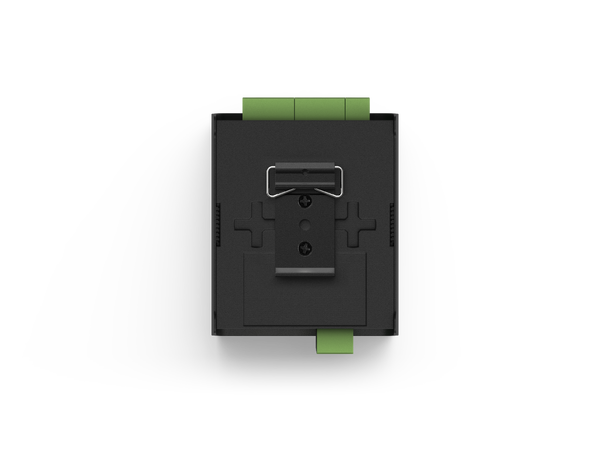

    Mounting Surface & TS35 DIN rail mountable (clips & screws included)
    IP rating IP20
    Environmental operating temperature 0°C to 50°C / 32°F to 122°F
    Environmental operating humidity 0 to 95% (non-condensing)
    Cooling method Convection
    Body material ABS plastic
    Unit dimensions 100.5mm x 72.25mm x 34mm
    Unit weight 0.83kg / 0.18lbs
    Shipping dimensions 160mm x 140mm x 40mm
    Shipping weight 0.16kg / 0.35lbs
    Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
    Warranty 3-year return to base manufacturer warranty

    Software

    DMX universe playback 1U (512 channels of USITT DMX512-A)
    Art-Net / sACN universe playback 2U (1024 channels)
    Max DMX refresh rate (FPS) 40
    Max playlist count 8
    Max cue track per playlist 2
    Max Cues (including Static, Dynamic and Effect) 16
    Max Triggers 16
    Max Events 16
    OSC API Yes
