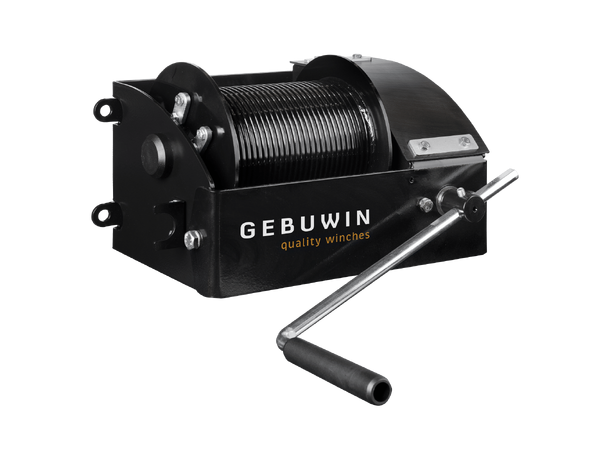

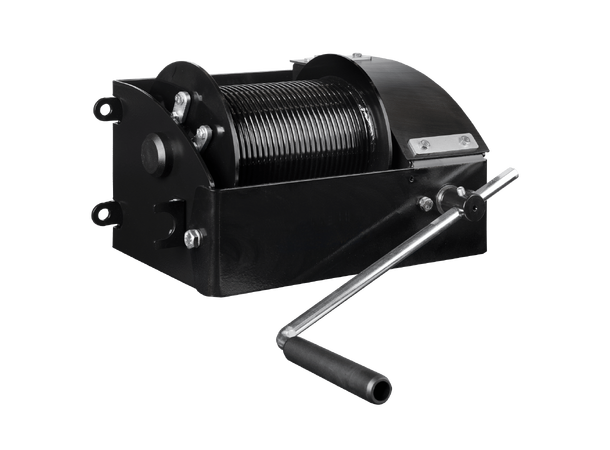

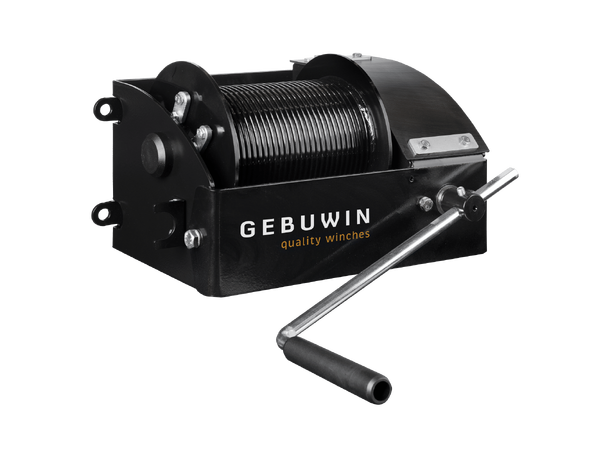

Gebuwin’s theatre winch is a high-quality but also safe winch that has been specially developed for the theatre and entertainment industry. This winch complies with the newly set standards for this sector, namely EN17206, and is therefore new in our range. This winch is equipped with two load pressure brakes and complies with the safety factor of eight. In order to give the winch even more finesse and ease of use, it is equipped with a grooved drum with a pressure roller. As the name suggests, the winch is ideally suited for the theatre world, but it can also be used in interior building or the lighting sector. In short, it’s a great addition for Gebuwin, which can literally and figuratively be seen “In The Picture”.
Right angled, easy to grease worm transmission and maintenance free bearings
cable outlet upwards, downwards or at rear

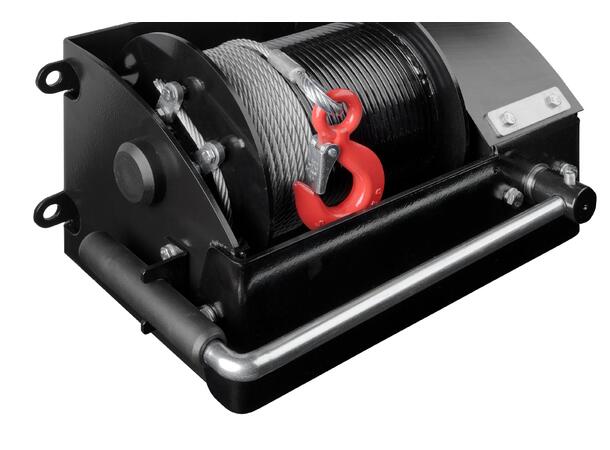

double wire rope fastening for extra safety
adjustable crank, with ergonomic grip
suitable for wall and floor mounting
simple and quick attachment
paint thickness is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL9005 (black)
- Compliant to the EN17206 norm for stage and entertainment industry
- Static safety factor 8

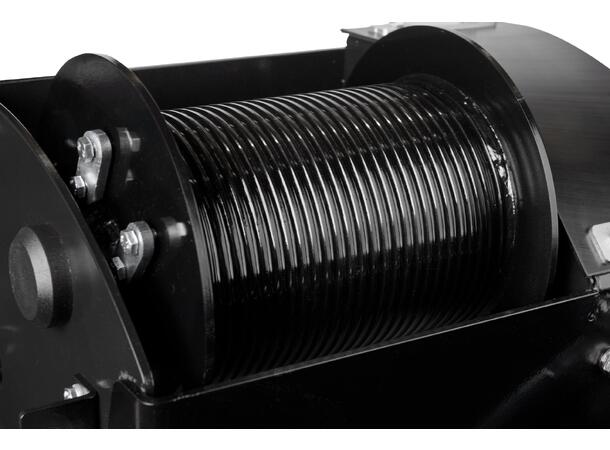

- Grooved drum for single-layer storage of steel wire

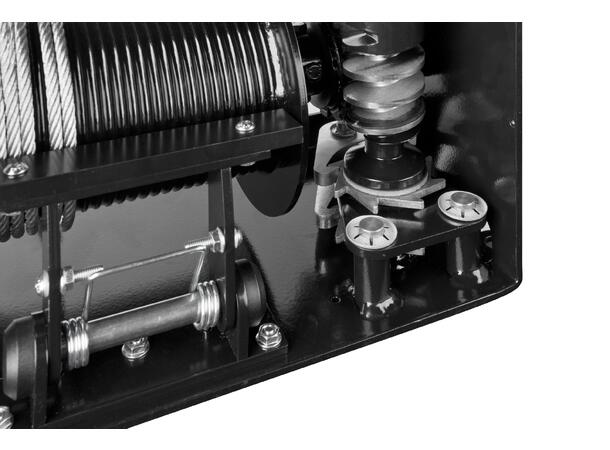

- Two load pressure brakes with double ratchet system for safe stable hold of load

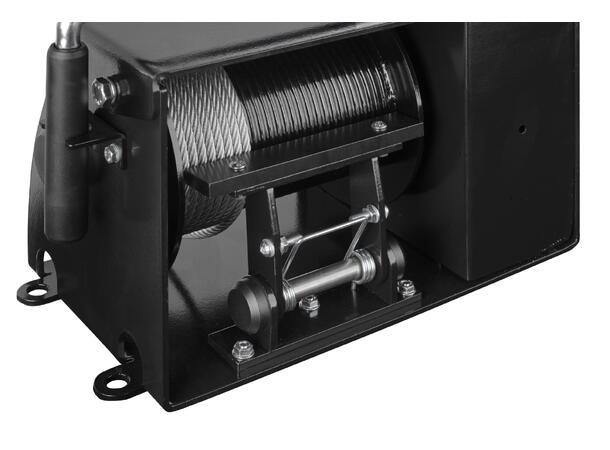

- Equipped with a spring loaded pressure roller for smooth winding of the drum
- Double steel rope fastening for extra safety
- Adjustable- and lockable crank with ergonomic grip
- RAL 9005 black
- For 10m of steel rope, max. 10m length
- Rope diameter: 6mm
- Weight: 21kg
