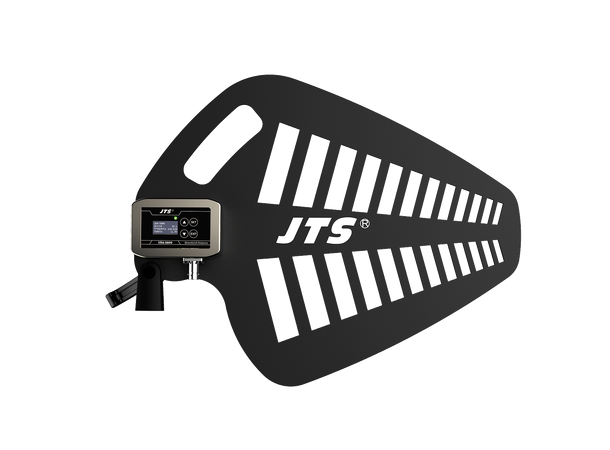

JTS UDA-5800 is a wideband UHF directional antenna designed for clean, focused RF reception. With approximately 7 dBi gain and a 120° beamwidth, it delivers stable performance in demanding wireless environments. A CNC-machined aluminum housing, multi-layer PCB, and front LCD display ensure reliability, EMI protection, and fast, intuitive setup.
SPECIFICATIONS
| Gain |
7dBi |
| 3-dB beam-width |
horizontal plane 120° – vertical plane 90° |
| Band |
Band Width :60MHz / Step: 10MHz
Lo Band : 470-710MHz ; Hi Band : 720-960MHz (Filter Option) |
| Bandwidth |
450~1000 MHz(Bypass Mode)
470~960MHz (Active Mode) |
| Control |
Display menu or remote thru coaxial cable |
| Gain |
-15 ~ +27 dB typical (1 dB step selection) |
| Bandwidth |
470-1000 MHz |
| Gain flatness |
+/-1 dB |
| Powering |
+12 Vdc/55mA (Green led:0 ~ +13dB; Blue led: -13 ~ -1dB)
+12 Vdc/110mA (Red led:+14 ~ +27dB)
Orange led: Bypass |
| Operating voltage range |
10~15Vdc |
| Dimensions |
282.5mm(W)*384.5mm(H) |
